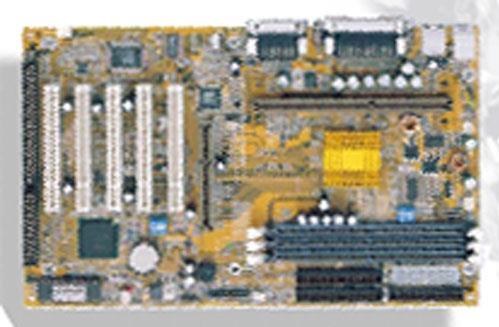

GA-6BXA

EspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Intel Pentium® II Processor 233 to 550 MHz
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/124*/133* MHz System Speed
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel 440BX AGPset
    2. iTE 8671 I/Oset
    3. Winbond W83782 Health chip
    4. ESS Solo-1 PCI Sound on board
  • Memoria
    1. 8MB to 768MB DRAM size
    2. 3x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 x AGP Slot Supports 66/133MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM by cable (optional)
    6. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,
    3. Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    4. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX , 4 layer PCB (30.5*19.0 cm)
  • Controlador
    1. Intel LDCM® utility (optional)
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel)
    3. SIV utility, Intel PIIX4e Patch Utility for Windows 95
    4. ESS Solo-1 PCI Sound Driver
    5. Trend Micro PC Cillin 98 Anti-Virus Utility Lite Version
  • Otras Características
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem wake on
    3. Includes 3 Fan Power Connectors, Speed Detection
    4. Case Open Detection
    5. Supports SB-LINK TM connector
    6. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power On by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B)& Switch
    3. Power Off by Windows 98 Shut down & Switch
    4. Stop CPU Fan during entering suspend mode
  • Procesador
    1. Intel Pentium® II Processor 233 to 550 MHz
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/124*/133* MHz System Speed
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 .... /6.5
  • Chipset
    1. Intel 440BX AGPset
    2. iTE 8671 I/Oset
    3. Winbond W83782 Health chip
    4. ESS Solo-1 PCI Sound on board
  • Memoria
    1. 8MB to 768MB DRAM size
    2. 3x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Puertos de Expansión
    1. 1 x AGP Slot Supports 66/133MHz speeds
    2. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 1 x ISA Slot
  • Controlador de E/S
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM by cable (optional)
    6. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance,
    3. Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    4. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
  • Diseño
    1. ATX , 4 layer PCB (30.5*19.0 cm)
  • Controlador
    1. Intel LDCM® utility (optional)
    2. Ultra DMA/33 Bus Master IDE Driver (Xstore Pro, Triones & Intel)
    3. SIV utility, Intel PIIX4e Patch Utility for Windows 95
    4. ESS Solo-1 PCI Sound Driver
    5. Trend Micro PC Cillin 98 Anti-Virus Utility Lite Version
  • Otras Características
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem wake on
    3. Includes 3 Fan Power Connectors, Speed Detection
    4. Case Open Detection
    5. Supports SB-LINK TM connector
    6. Poly fuse for keyboard overcurrent protection
  • Energía
    1. ATX Power connector
    2. Power On by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B)& Switch
    3. Power Off by Windows 98 Shut down & Switch
    4. Stop CPU Fan during entering suspend mode

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
