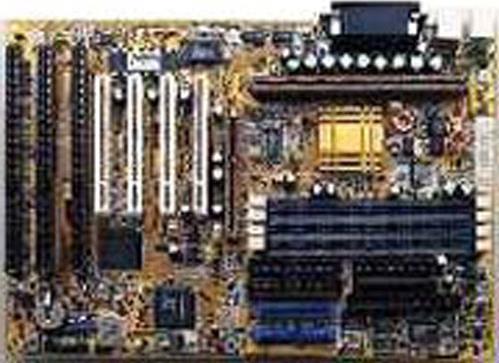

GA-6BXU

SpécificationsSupportActualité / RécompensesWhere to Buy

Spécifications

  • Processeur
    1. Intel Pentium II / III Processor 233 to 550 MHz
    2. Slot 1 Socket for future Processor support
    3. 66/100 MHz & Auto Selection Main Clock
    4. Auto Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 ...... / 5.5
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977 I/Oset (1Mb/S)
    3. Adaptec 7890 Ultra 2 SCSI
    4. Winbond 83782 Health Chip
  • Mémoire
    1. CPU Built-in 256KB/512KB L2 cache
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Port d'expansion
    1. 4 x PCI 32-bit slots, PCI 2.2 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot　POWER ATX Power connector
    4. Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm,Modem Ring & Switch
    5. Power Off by WindowsR 98 Shut down & Soft-Power Switch
    6. AC Recovery On/Off Control
    7. Stop CPU Fan during entering suspend mode
    8. 3 Level ACPI LED Support
  • Contrôleur d'Entrée/Sortie
    1. 1x External & 1x Internal Ultra 2 SCSI (80Mbytes)
    2. 1x Ultra Wide SCSI (40Mbytes) ports & 1x Ultra SCSI (20Mbytes) ports
    3. 1x floppy port (360KB-2.88MB)
    4. 2x serial ports (16550 high-speed)
    5. 1x parallel port (EPP/ECP)
    6. PS/2 Keyboard
    7. PS/2 Mouse
    8. 2x USB
  • Monitorage Matériel
    1. Flexible Temperature Sensor Under Processor Heatsink
    2. Auto Speed Down and Speaker Alarm when CPU overheat(OS independent & Driverless)
    3. System Health Status Detect & Report by BIOS,LDCMR & SIV.
    4. Hardware Detects +/- 5v, +/-12v, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & Report System Health Status
  • Dimensions
    1. ATX , 4 layer PCB (30.5*21.0cm)
  • Pilote
    1. Intel LDCMR, SIV utility
    2. Ultr DMA/33 Bus Master IDE Driver (Triones & Intel)
    3. Intel PIIX4e Patch Utility for Windows 95
    4. Adaptec SCSI Utility
  • Autres Caractéristiques
    1. Supports Wake On LAN Header (WOL)
    2. Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection
  • Processeur
    1. Intel Pentium II / III Processor 233 to 550 MHz
    2. Slot 1 Socket for future Processor support
    3. 66/100 MHz & Auto Selection Main Clock
    4. Auto Detect CPU Voltage
    5. Clock multiplier 3.0/3.5 ...... / 5.5
  • Chipset
    1. Intel 82440 BX AGPset
    2. Winbond 83977 I/Oset (1Mb/S)
    3. Adaptec 7890 Ultra 2 SCSI
    4. Winbond 83782 Health Chip
  • Mémoire
    1. CPU Built-in 256KB/512KB L2 cache
    2. 4 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB DIMM Module
    4. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    5. Supports 8MB to 1GB DRAM Size
  • Port d'expansion
    1. 4 x PCI 32-bit slots, PCI 2.2 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot　POWER ATX Power connector
    4. Power On by Keyboard, PS/2 Mouse, LAN, RTC Alarm,Modem Ring & Switch
    5. Power Off by WindowsR 98 Shut down & Soft-Power Switch
    6. AC Recovery On/Off Control
    7. Stop CPU Fan during entering suspend mode
    8. 3 Level ACPI LED Support
  • Contrôleur d'Entrée/Sortie
    1. 1x External & 1x Internal Ultra 2 SCSI (80Mbytes)
    2. 1x Ultra Wide SCSI (40Mbytes) ports & 1x Ultra SCSI (20Mbytes) ports
    3. 1x floppy port (360KB-2.88MB)
    4. 2x serial ports (16550 high-speed)
    5. 1x parallel port (EPP/ECP)
    6. PS/2 Keyboard
    7. PS/2 Mouse
    8. 2x USB
  • Monitorage Matériel
    1. Flexible Temperature Sensor Under Processor Heatsink
    2. Auto Speed Down and Speaker Alarm when CPU overheat(OS independent & Driverless)
    3. System Health Status Detect & Report by BIOS,LDCMR & SIV.
    4. Hardware Detects +/- 5v, +/-12v, CPU & CMOS battery Voltage Status
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green,PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. Auto-detect & Report System Health Status
  • Dimensions
    1. ATX , 4 layer PCB (30.5*21.0cm)
  • Pilote
    1. Intel LDCMR, SIV utility
    2. Ultr DMA/33 Bus Master IDE Driver (Triones & Intel)
    3. Intel PIIX4e Patch Utility for Windows 95
    4. Adaptec SCSI Utility
  • Autres Caractéristiques
    1. Supports Wake On LAN Header (WOL)
    2. Supports Creative SB-LINK connector for Sound Blaster AWE64D PCI Sound
    3. Supports 3 Fan Detection Connectors
    4. Poly fuse for keyboard overcurrent protection

* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
