Specifications
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 850
448 x 87.5 x 850

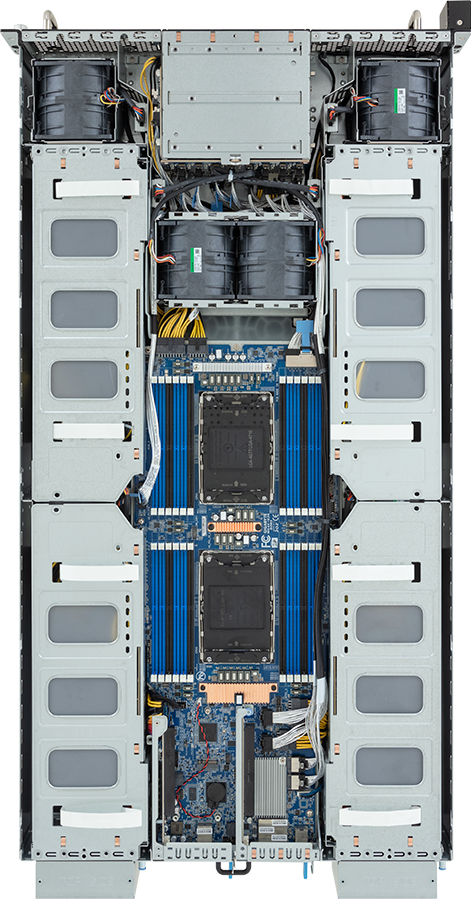

Motherboard
MS44-G20
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700-Series Processors
- Intel® Xeon® 6500-Series Processors
Dual processor, TDP up to 225W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- Intel® Xeon® 6700-Series Processors
- Intel® Xeon® 6500-Series Processors
Dual processor, TDP up to 225W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4710
Socket E2
Socket E2
Chipset
System on Chip
Memory
24 x DIMM slots [1]
Support DDR5 RDIMM/MRDIMM [2]
8-Channel memory per processor
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
[1] Intel® Xeon® 6700E-Series Processors only support up to 16 x DIMMs.
[2] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores and only in a 1DPC configuration.
Support DDR5 RDIMM/MRDIMM [2]
8-Channel memory per processor
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
[1] Intel® Xeon® 6700E-Series Processors only support up to 16 x DIMMs.
[2] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores and only in a 1DPC configuration.
LAN
Rear:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.

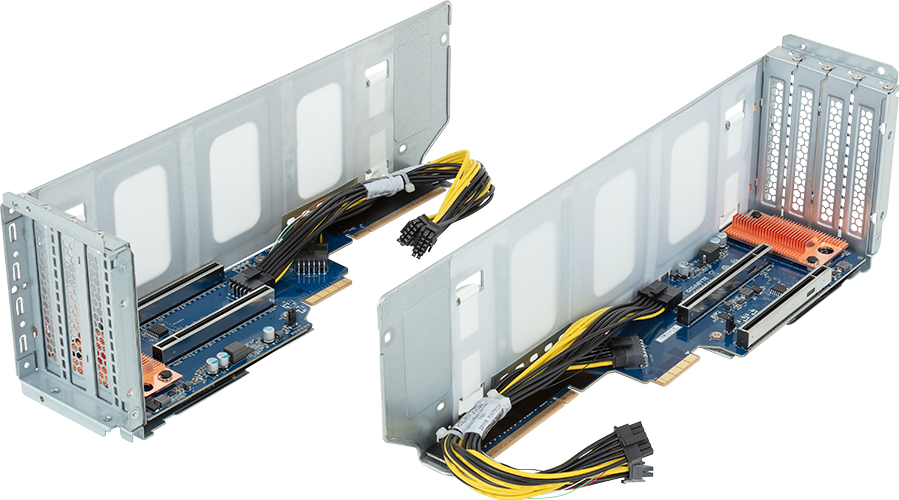

PCIe Expansion Slots
8 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
[Note] The system is only validated with a uniform GPU model.
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1
[Note] The system is only validated with a uniform GPU model.

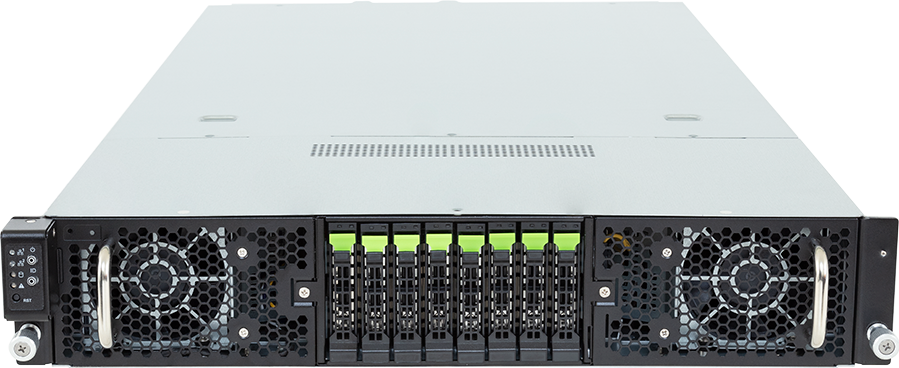

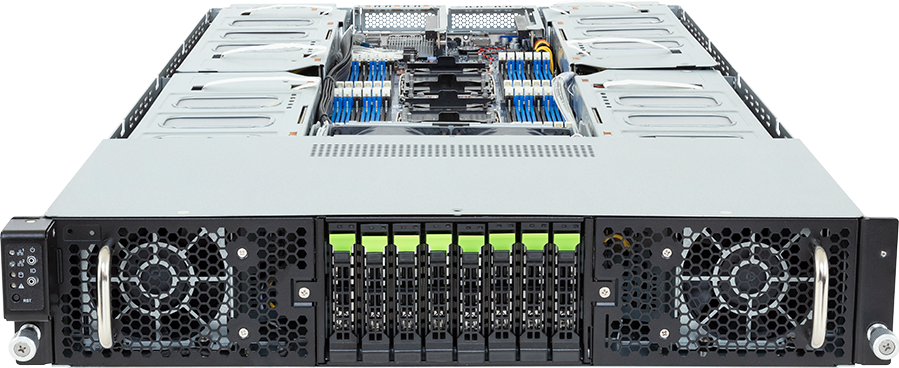

Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

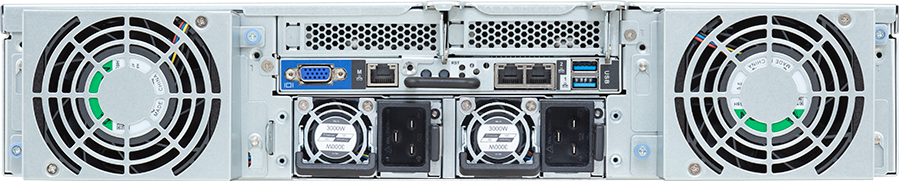

Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
Power Supply[#1]
Dual 3000W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Fans
4 x 80x80x38mm
4 x 80x80x80mm
4 x 80x80x80mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Weight
Net Weight: 25.5 kg
Gross Weight: 27.8 kg
Gross Weight: 27.8 kg
Packaging Dimensions
1175 x 727 x 266 mm
Packaging Content
1 x G294-S42-AAP1
2 x CPU heatsinks
4 x GPU power cables (16-pin, 250mm)
4 x GPU power cables (16-pin, 280mm)
4 x Carriers
1 x L-shape Rail kit
2 x CPU heatsinks
4 x GPU power cables (16-pin, 250mm)
4 x GPU power cables (16-pin, 280mm)
4 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG294S42DR000AAP1*
- Motherboard: 9MS44G20UR-000*
- Motherboard: 9MS44G20UR-000*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
