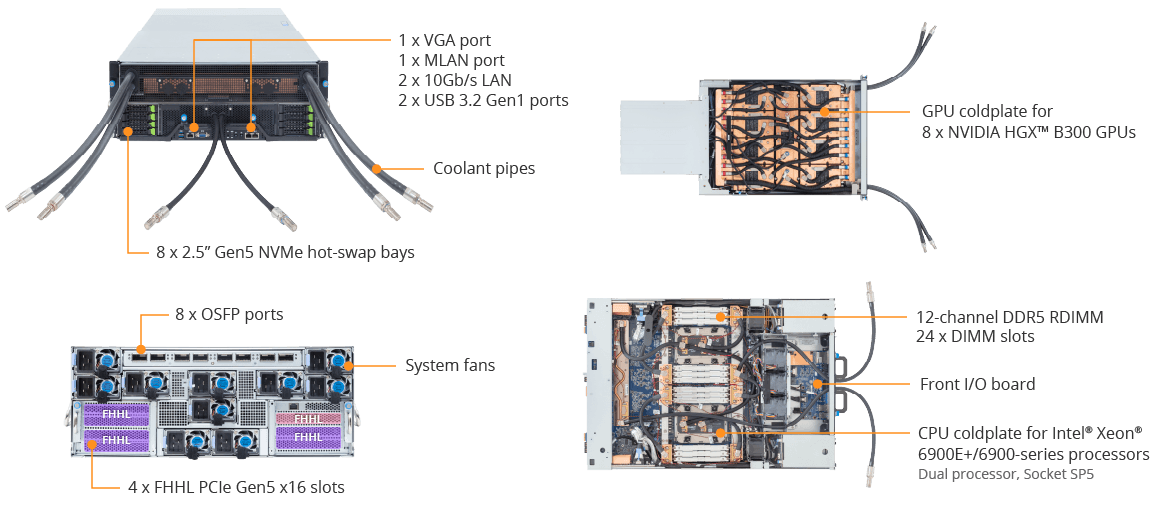

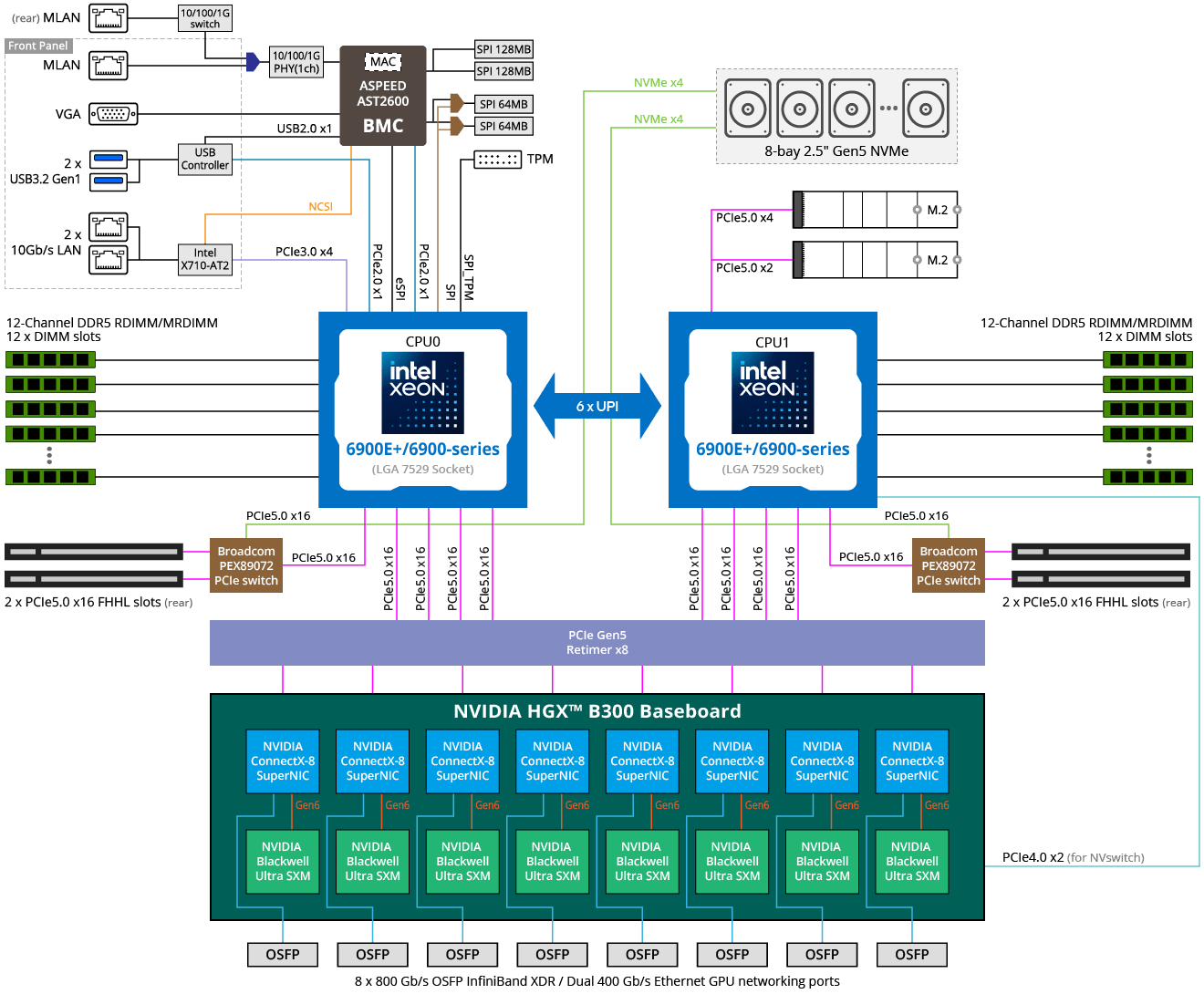

Specifications
Dimensions (WxHxD, mm)
4U
447 x 175.5 x 901
CPU
Intel® Xeon® 6+ processors
- Intel® Xeon® 6900E+ processors
Intel® Xeon® 6 processors
- Intel® Xeon® 6900-series processors
[DLC] Dual processors, TDP up to 500 W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 7529
Socket BR
Chipset
Integrated into SoC

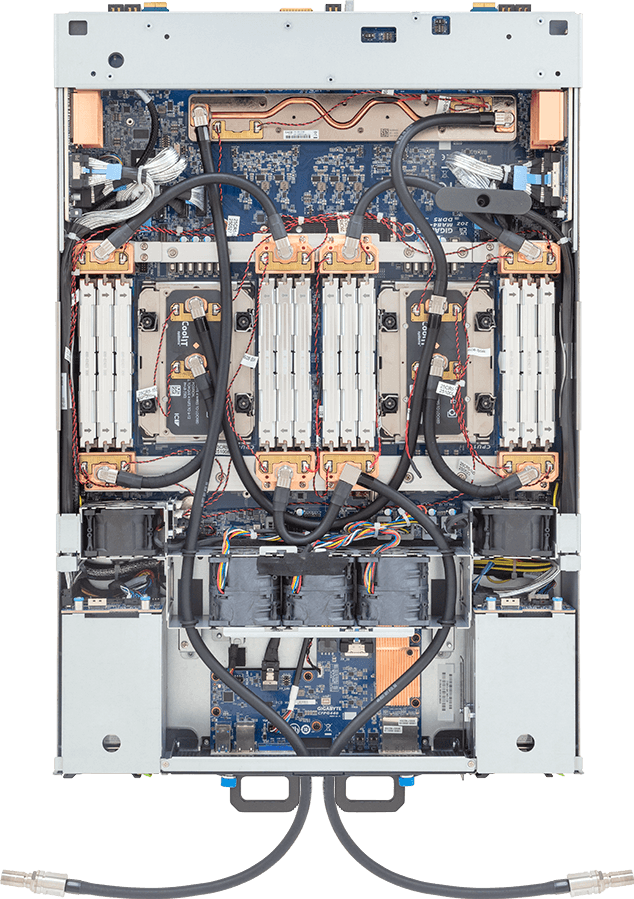

Memory
[DLC] 24 x DIMM slots
Support DDR5 RDIMM/MRDIMM [1]
12-Channel memory per processor
Intel Xeon 6900E+:
RDIMM: Up to 8000 MT/s
Intel Xeon 6900-series:
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s
[1] MRDIMMs are supported only on select Intel® Xeon® 6 processors with P-cores.
LAN
Front (I/O board):
2 x 10 Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI
1 x 10/100/1000 Mb/s Management LAN
Rear:
[DLC] 8 x 800 Gb/s OSFP XDR InfiniBand or dual 400 Gb/s Ethernet, for GPU networking, via NVIDIA ConnectX®-8 SuperNIC™
Rear (MLAN board):
1 x 10/100/1000 Mb/s Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89072)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen5 x2, from CPU_1
Modular GPU
[DLC] NVIDIA HGX™ B300 with 8 x SXM GPUs
PCIe Expansion Slots
PCIe Bridge Board x 2:
4 x FHHL x16 (Gen5 x16), from PEX89072
[Note] The ambient temperature is limited to 30°C when NVIDIA BlueField®-3 DPUs/SuperNIC™ are installed.

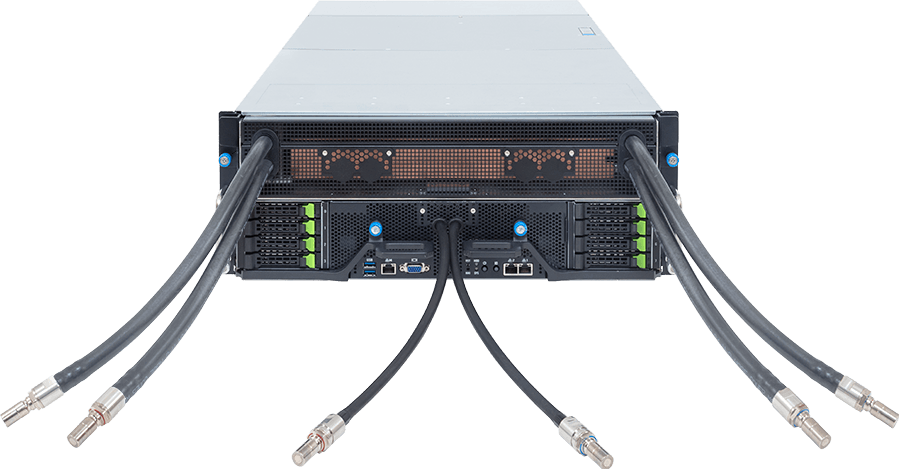

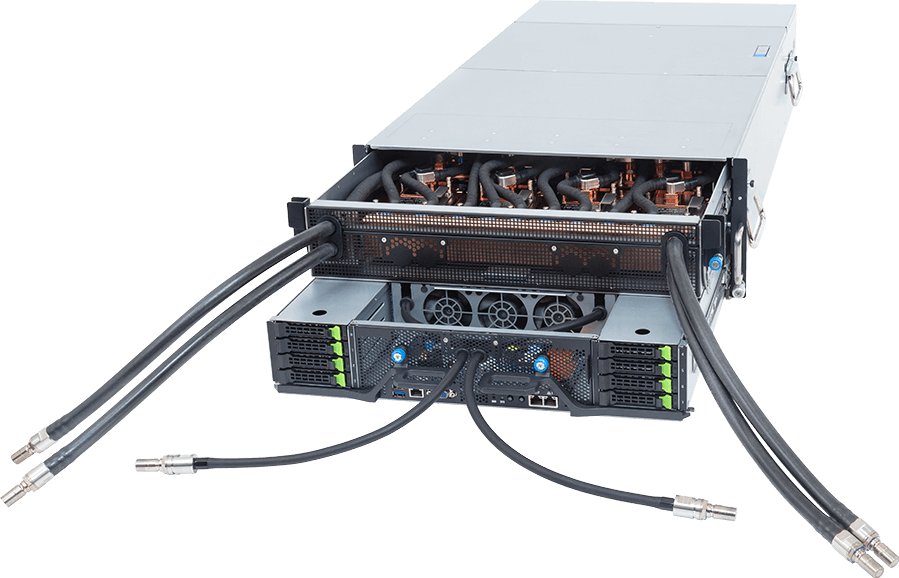

Front I/O
I/O board:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

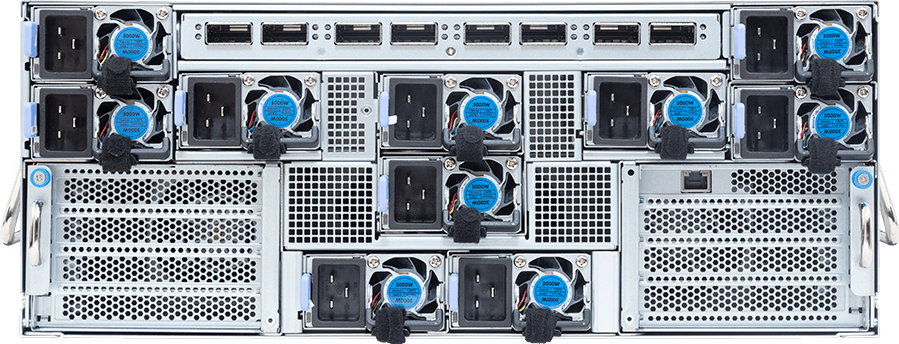

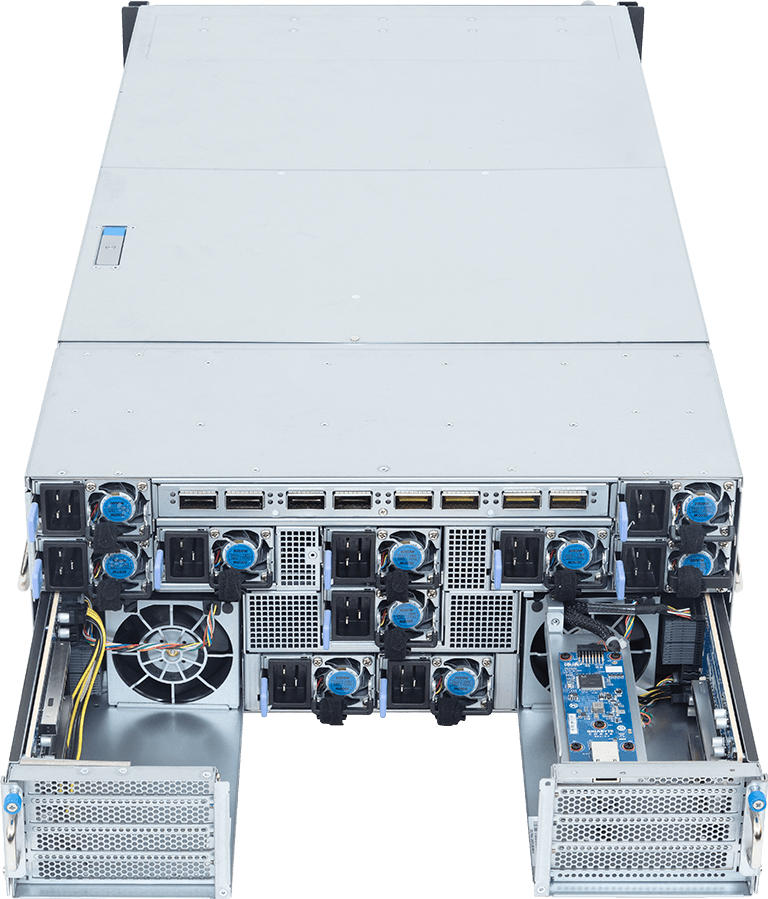

Rear I/O
8 x OSFP ports
MLAN board:
1 x MLAN port
Security Modules
1 x TPM header with SPI interface
-
Optional TPM 2.0 kit:
CTM012Power Supply[#1]
5+5 3000 W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Fans
Motherboard:
2 x 60x60x38mm
3 x 60x60x56mm
PCIe slots:
2 x 80x80x56mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Packaging Dimensions
1300 x 800 x 444 mm
Packaging Content
1 x G4L4-AD3-LAX7
2 x CPU carriers
1 x L-shape Rail kit
Part Numbers
- Barebone with NVIDIA module: 6NG4L4AD3DR000LAX7*
- Motherboard: 9MAB4PE3UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- Front panel board - CFPG440: 9CFPG440NR-00*
- Backplane board - CBPG641: 9CBPG641NR-00*
