W775-V10-L01

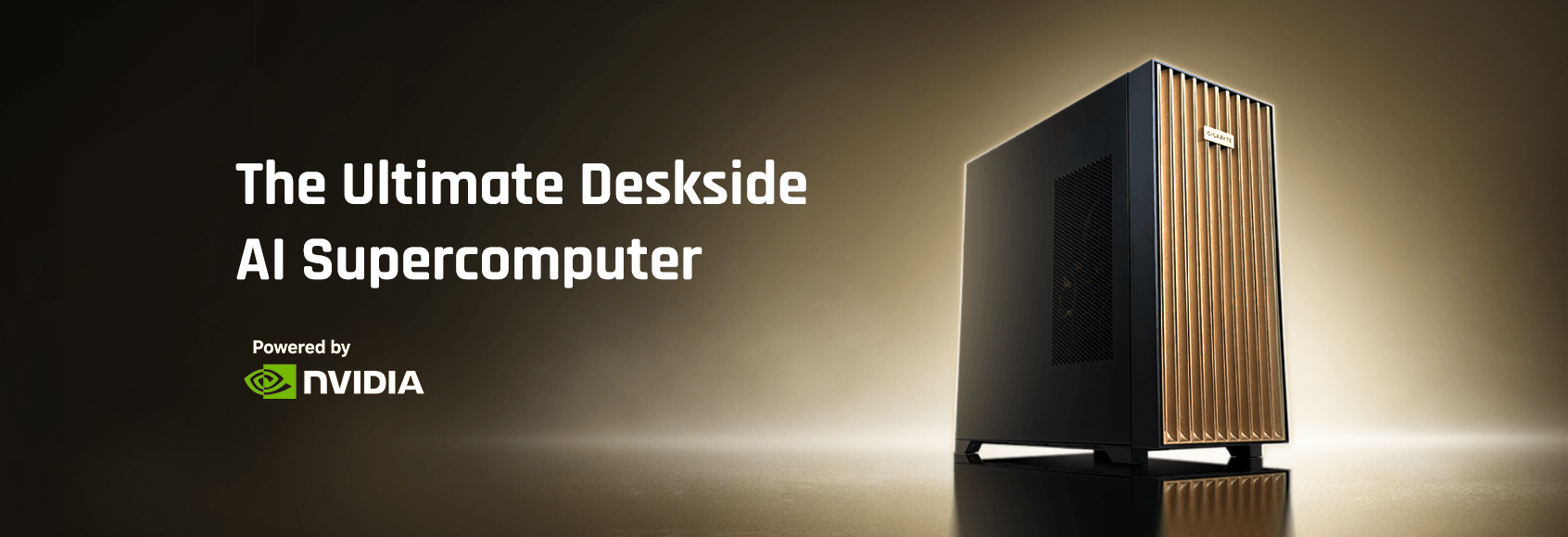

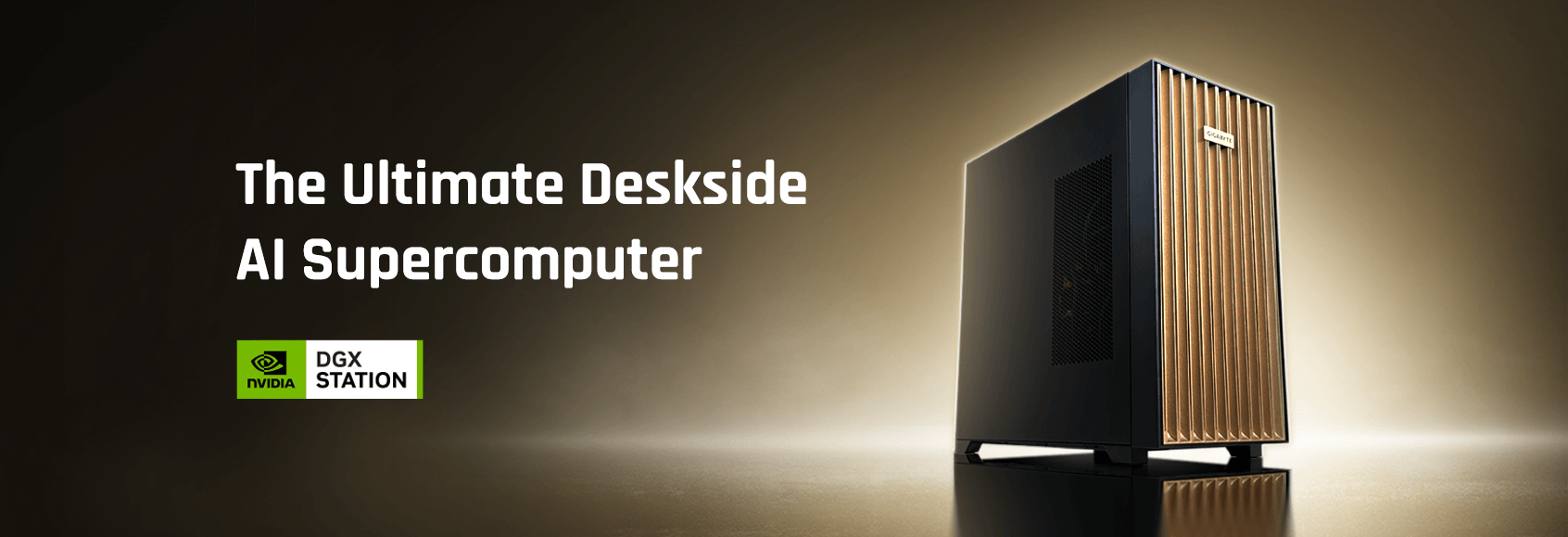

AI Workstation - NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip
- Closed-loop liquid cooling solution
- 1 x NVIDIA Blackwell Ultra GPU
- 1 x NVIDIA Grace-72 Core Neoverse V2 CPU
- 252 GB HBM3E GPU memory with 7.1 TB/s total bandwidth
- 496 GB LPDDR5X CPU memory with up to 396 GB/s bandwidth
- 2 x 400 Gb/s QSFP ports via NVIDIA ConnectX®-8 SuperNIC™
- 1 x 10 Gb/s LAN port via Marvell AQC113
- 4 x M.2 slots with PCIe Gen5 x4 interface
- 1 x PCIe Gen5 x16 slots
- 2 x PCIe Gen5 x8 slots
- Single 1600W ATX 80 PLUS Gold power supply
Ordering Numbers: 6NW775V10MR000L01*
產品規格
Dimensions (WxHxD, mm)
Pedestal
218 x 519.5 x 726.3
218 x 519.5 x 726.3
Superchip

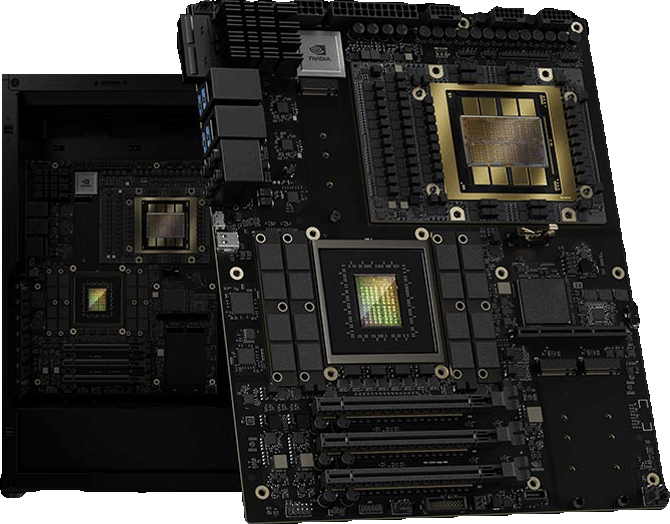

NVIDIA GB300 Grace™ Blackwell Ultra Desktop Superchip:
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Blackwell Ultra GPU
- Connected with NVIDIA NVLink™-C2C
- 1 x NVIDIA Grace™ CPU
- 1 x NVIDIA Blackwell Ultra GPU
- Connected with NVIDIA NVLink™-C2C
Memory
NVIDIA Grace™ CPU:
- 496 GB of LPDDR5X memory with ECC
- 396 GB/s memory bandwidth
NVIDIA Blackwell Ultra GPU:
- 252 GB HBM3E
- 7.1 TB/s memory bandwidth
- 496 GB of LPDDR5X memory with ECC
- 396 GB/s memory bandwidth
NVIDIA Blackwell Ultra GPU:
- 252 GB HBM3E
- 7.1 TB/s memory bandwidth
LAN
2 x 400 Gb/s QSFP (1 x NVIDIA ConnectX®-8 SuperNIC™)
1 x 10 Gb/s LAN (1 x Marvell AQC113)
1 x 10/100/1000 Mbps Management LAN
1 x 10 Gb/s LAN (1 x Marvell AQC113)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in onboard BMC
- 1 x Mini-DP
- 1 x Mini-DP
Audio
Realtek® ALC4080 Audio Codec
Front: 2 x Audio jacks (Audio out/Mic)
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Front: 2 x Audio jacks (Audio out/Mic)
Rear: 3 x Audio jacks (Audio in/Audio out/Mic)
Storage
Internal M.2:
2 x M.2 (2240/2260/2280), PCIe Gen5 x4, from CPU
2 x M.2 (2240/2260/2280), PCIe Gen6 x4, from ConnectX-8
2 x M.2 (2240/2260/2280), PCIe Gen5 x4, from CPU
2 x M.2 (2240/2260/2280), PCIe Gen6 x4, from ConnectX-8
PCIe Expansion Slots
Slot_3: PCIe x16 (Gen5 x8)
Slot_2: PCIe x8 (Gen5 x8)
Slot_1: PCIe x8 (Gen5 x8)
1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen2 x1, from ConnectX-8
Slot_2: PCIe x8 (Gen5 x8)
Slot_1: PCIe x8 (Gen5 x8)
1 x M.2 (2230), E-key (Wi-Fi), PCIe Gen2 x1, from ConnectX-8
Front I/O
1 x USB 3.2 Gen2 port (Type-C)
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button with storage activity LED
2 x USB 3.2 Gen1 ports (Type-A)
2 x Audio jacks (Audio out/Mic)
1 x Power button with LED
1 x Reset button with storage activity LED
Rear I/O
4 x USB 3.2 Gen2 ports (Type-A)
1 x Micro USB port (USB-to-UART)
1 x Mini-DP
2 x QSFP ports
1 x RJ45 port
1 x MLAN port
2 x Wi-Fi antenna ports
3 x Audio jacks (Audio in/Audio out/Mic)
1 x Micro USB port (USB-to-UART)
1 x Mini-DP
2 x QSFP ports
1 x RJ45 port
1 x MLAN port
2 x Wi-Fi antenna ports
3 x Audio jacks (Audio in/Audio out/Mic)
Power Supply[#1]
Single 1600W ATX 80 PLUS Gold power supply [1]
[1] The system power supply requires C19 power cord.
[Note] 220-240V AC input is recommended for optimized user experience.
[1] The system power supply requires C19 power cord.
[Note] 220-240V AC input is recommended for optimized user experience.
OS Compatibility
NVIDIA DGX OS
System Fans
3 x 120x120x25mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.
Packaging Content
1 x W775-V10-L01
1 x Superchip liquid cooling kit
1 x Superchip liquid cooling kit
Part Numbers
- Barebone package: 6NW775V10MR000L01*
[#1] 伺服器產品未附帶電源線。客戶需自行選擇適當的電源線 (可選配件)，或聯繫業務協助客製化。
