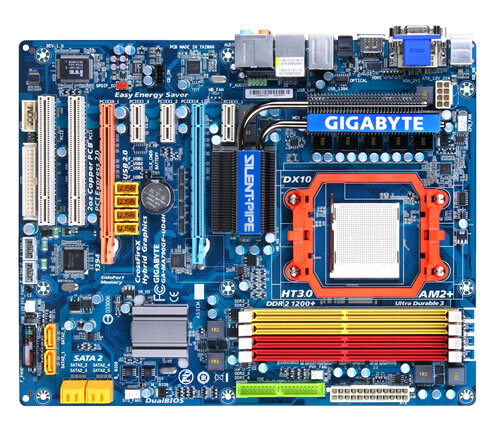

GA-MA790GP-UD4H (rev. 1.0)
AMD 790GX + SB750 Chipset
- Supports new generation of AMD Phenom™ II X6 processors
- Ultra Durable 3 Technology with copper cooled quality for lower working temperature
- Revolution energy saving design with Easy Energy Saver technology
- Supports AMD Phenom™/ Athlon™ series processors
- Dual Channel DDR2 1200+ for remarkable system performance
- Built-in 128MB DDR3 1333MHz SidePort Memory
- Integrated ATI Radeon HD3300 graphics (DirectX10)
- 2 PCI-E 2.0 x16 interface with ATI CrossFireX/ Hybrid CrossFireX support for ultimate graphics performance
- Blu-ray playback supported by high quality 106dB SNR ALC889A HD audio
- Supports Dolby Home Theater audio to enjoy a rich surround sound experience
- Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
- Patented DualBIOS with dual hardware BIOS protection
- 100% 50,000 hours lifespan of Japanese solid capacitors design
Get Ready to Unleash the Power of AMD 6-Core CPUGIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
GA-MA78LM-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LM-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
Supports next generation of 45nm AMD AM3 CPUThis motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
EC AOD-ACC SupportEC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
AMD OverDrive SupportThe AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).
Built-in 128MB DDR3 SidePort MemoryThrough the built-in 128MB DDR3 SidePort memory accelerated, the 3D performance is able to enhance up to an additional 10~15%.
AMD 790GX Graphics Performance Upgraded- up to 3DMark 2006 2800 marks!!The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.
- Hardware equipment required: [CPU] AMD Phenom 9850(2.5GHz), [Memory] DDR3 1066(1GBx2), [OS] Windows Vista 32-bit.
- Software equipment required: [Benchmark] 3DMark 2006, [Resolution] 1280x1024x32 (no AA, no AF, 32bpp).
* Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.
ATI Hybrid Graphics Technology supportATI Hybrid Graphics is a technology umbrella brand encompassing several technologies, such as ATI Hybrid CrossFireX™, ATI SurroundView™, ATI PowerPlay™, etc. that allow both an AMD integrated graphics processor and a discrete graphics processor to work co-operatively on an AMD based system to provide enhanced gaming performance, productivity and platform efficiency to the mainstream PC.
* Please use ATI Hybrid CrossFireX certified DX10.1 VGA card (i.e., ATI Radeon HD 3400-series, etc.), detail information please refer to AMD website.
ATI CrossFireX™ supportWith support for latest ATI CrossFireX™ technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI-E connectivity, the GA-890GPA-UD3H allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible.
Ultra Durable 3 – Classic
GIGABYTE Ultra Durable 3 Classic motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.
Supports Dual Channel DDR2 1200+Experience the advanced technology of DDR2 1200+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* DDR2 1200+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
EasyTune6GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
DualBIOS™ - Patented Dual Hardware BIOS ProtectionDualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
HDMI 1.3* certification, support Full HD 1080PHDMI is able to provide up to 5Gb/s video transmitting bandwidth and multi-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. GIGABYTE motherboard has obtained the latest HDMI 1.3* certification, able to support Full HD 1080p multi-media and HDCP (High-bandwidth Digital Content Protection) which allowing Blu-ray/ HD DVD and other protected contents playback.
* HDMI 1.3 certified in video spec only.
GIGABYTE innovative technology- Easy Energy SaverGIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound ExperienceDolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
- Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
- Designed to automatically deliver the best possible listening experience
ALC889A Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.
Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.
7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
Windows Vista Premium Logo CertifiedWindows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
50,000 Hours Japanese Solid CapacitorsGIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more
* 50000 hours of work time is calculated at 85℃ ambient temperature.
