CSA3548Legacy | Software updates supported

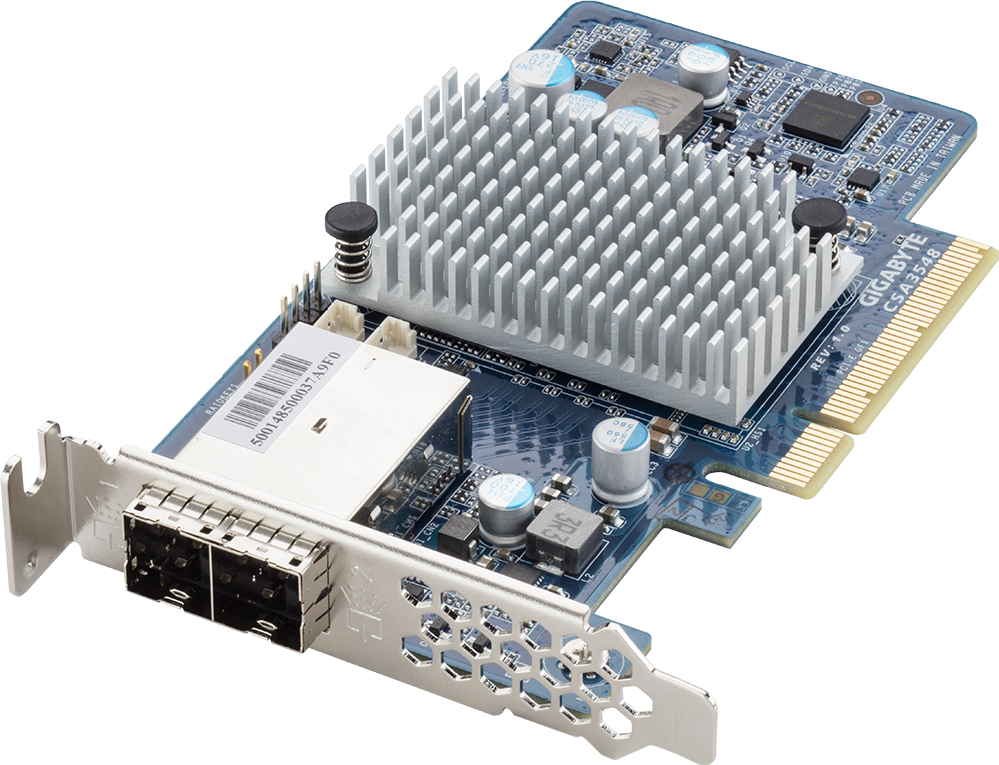

Broadcom SAS3008 HBA
Broadcom SAS3008 HBA
- 2 x external Mini-SAS HD SFF8644 connectors
- Up to 1024 physical devices supported via expander
- Broadcom SAS3008
- PCIe x8 slot (3.0 x8 bus)
- 120 x 68.9 mm
- Overview
- Specifications
- Support
Specifications
Ports
2 x external Mini-SAS HD SFF8644 connectors
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Up to 1024 physical devices supported via expander
Supports SAS / Enterprise SATA hard drives
Controller
Broadcom® SAS3008
RAID
IT mode firmware
Up to 1024 x physical devices supported via SAS expander
Up to 1024 x physical devices supported via SAS expander
Interface
PCIe x8 slot (3.0 x8 bus)
Dimension
120 x 64.4 mm
Format
Half-length low profile card
Available with full-height or low-profile bracket
Available with full-height or low-profile bracket
Includes
1 x Full-height bracket
1 x Low-profile bracket
1 x Low-profile bracket
Remark
California Proposition 65:
WARNING: This product contains a chemical, including lead,
know to the state of California to cause birth defects or other reproductive harm.
http://www.p65warnings.ca.gov/
Ordering Information
9CSA3548MR-00
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
15 units per carton
Packaging dimensions: 305 x 251 x 220 mm
