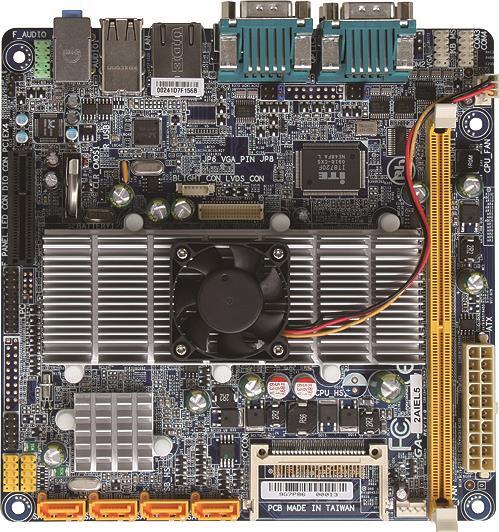

GA-2AIEL5-RHLegacy | Software updates supported

AMD Sempron 210U 1.5GHz + M690E + SB600
  • Mini-ITX form factor addresses slim nettops, affordable all-in-one PCs, thin-client PCs.
  • AMD Sempron 210U 1.5GHz processor onboard.
  • HDMI supports 1080i high-definition and dual display.
  • Onboard LVDS ideal for dual display application such as POS, kiosk, and digital signage system.
  • Compact Flash card slot support boot up function.
  • 1 port Gigabit Ethernet.
Save
This model has been saved to favorite!
  • Specifications
  • Support

Specifications

Form Factor
Mini-ITX
170W x 170D (mm)
CPU
  • Onboard AMD Sempron 210U 1.5GHz processor
  • HyperTransport link up to 800MHz
Chipset
  • AMD M690E chipset with AMD SB600
Memory
  • 1 DDR2 DIMM socket
  • 667/ 800MHz up to 2GB
LAN
  • 1 Gigabit LAN (Realtek RTL8111C)
Video
  • ATI Radeon Xpress 1270 (AMD M690E)
Audio
  • 7.1+2 channel HD audio (Realtek ALC889A)
SATA
  • 4 ports SATA 3Gbps via AMD SB600
Expansion Slots
  • 1 PCI Express x1 (x4 mechanical)
  • 1 Compact Flash card slot support boot-up function
Internal I/O
  • 2 COM
  • 1 LVDS (24bit)
  • 4 USB
Rear I/O
  • 3 Audio
  • 2 COM
  • 1 HDMI 1.3
  • 1 RJ45
  • 1 SPDIF out (Optical)
  • 4 USB
  • 1 VGA
Power Supply
  • ATX power 24pin
Ordering Information
  • 9M2AIEL50R-00-10A

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
