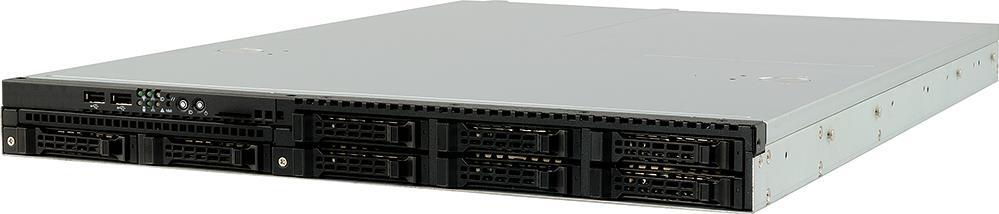

GS-R12P8GLegacy | Firmware updates supported

1U
444 x 43.6 x 615

GA-7PESH4

Supports:

• Intel^® Xeon^® E5-2600 V2 processors
• Intel^® Xeon^® E5-1600 V2 processors (single CPU configuration only)
• Intel^® Xeon^® E5-2600 processors
• Intel^® Xeon^® E5-1600 processors (single CPU configuration only)

2 x LGA 2011
Mounting pitch: narrow ILM (56x94mm)
2 x CPU heatsinks included
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C602

16 x DIMM slots
Quad channel memory architecture
ECC & non-ECC UDIMM/RDIMM modules supported
Single and dual rank UDIMM modules up to 8GB supported
Single, dual and quad rank RDIMM modules up to 32GB supported
1.35V modules: 1066/1333/(1600*) MHz
1.5V modules: 1066/1333/1600/(1866*) MHz

*Supported by Intel^® Xeon^® E5-2600 V2 processors only

Download the detailed memory configuration table for the E5-1600/2600 V2 processors
Download the detailed memory configuration table for the E5-1600/2600 processors

4 X GbE LAN ports (Intel^® I350-AM4)
1 x 10/100 management LAN

Integrated in Aspeed^® AST2300
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

8 x 2.5" hot-swappable HDD/SSD bays

2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports

1 x Mini-SAS (for 4 x SATA 3Gb/s ports)
1 x Mini-SAS (disabled, can be enabled via Intel^® upgrade key)

Intel^® SATA RAID 0/1/10/5

-

2 x Half-length low-profile slots
1 x PCIe x16 (Gen3 x8 bus) connector
1 x PCIe x8 (Gen3 x8 bus) connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x PMBus connector
4 x System fan headers
2 x CPU fan headers
1 x USB 2.0 vertical Type A port
1 x HDD back plane board header
1 x Front panel header
1 x SATA1 port DOM support jumper
1 x SATA2 port DOM support jumper
2 x SATA III 6Gb/s ports
4 x SATA II 3Gb/s ports
1 x USB 2.0 header
1 x Serial header
2 x Mini-SAS cable connectors
1 x S3_MASK jumper
1 x Flash descriptor security jumper
1 x Clear CMOS jumper
1 x ME recovery jumper
1 x Skip supervisor password jumper
1 x BIOS recovery jumper
1 x Force to Stop FRB3 Timer jumper
1 x BIOS write protect jumper
1 x TPM header
1 x SATA SGPIO header
1 x IPMB connector
1 x Chassis intrusion header

2 x USB 2.0
2 x System status LED
1 x HDD LED
2 x LAN LED
1 x ID LED
1 x Reset button
1 x NMI button
1 x ID button with LED
1 x Power on/off button

4 x USB 2.0
1 x VGA
1 x Serial
5 x RJ45
1 x ID button with LED

N/A

1 x TPM header

1 x 600W PSU
80 PLUS Gold
100~220V AC

Aspeed^® AST2300 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

Windows Server 2008 SP2 (x86)
Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 5.6 (x86/x64)
Red Hat Enterprise Linux 6.1 (x86/x64)

SUSE Linux Enterprise Server 11.1 (x86/x64)

VMware ESXi 5.0 / 5.1 / 5.1 U1 / 5.1 U2

3 x 40x40x28mm (18'000rpm)
Š3 x 40x40x56mm (front: 16'000rpm / rear: 15'400rpm)

Operating temperature: 5°C to 35°C
ŠNon-operating temperature: 0°C to 50°C
10-80% operating humidity at 30°C

10 kg

Barebone: 6NR12P8GMS-00
Rail kit: 25HB2-3C6100-K0R
