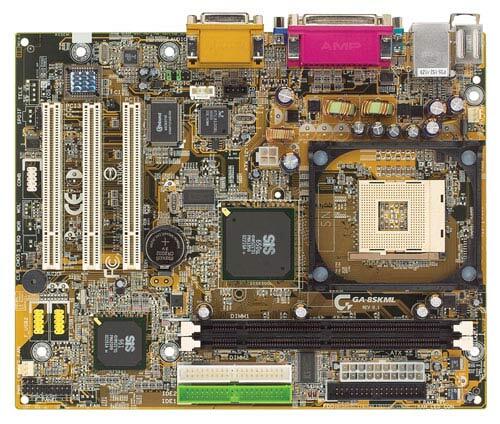

GA-8SKML

SpesifikasiDukunganBerita / PenghargaanWhere to Buy

Spesifikasi

  • Prosesor
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • Chipset
    1. North bridge: SiS650GL IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. REALTEK RTL8100L LAN chip
    4. Super I/O: Winbond 83697HF
  • Memori
    1. Type: PC133 SDRAM by 168-pin DIMM slot
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Slot Tambahan
    1. 3 x PCI slots (PCI 2.2 compliant)
  • Konektor I/O Internal
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable)
    3. 1 x FDD port
  • Konektor Panel Belakang
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. 1 x RJ45 LAN port (GA-8SKML)
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi Port
  • Pengawasan Hardware
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Paket Sofware
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 19.5 cm)
  • Pengaturan Prosesor/AGP/DIMM
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GL VGA driver
    2. REALTEK LAN driver
    3. REALTEK Sound Driver
  • Fitur Lainnya
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Daya
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • Prosesor
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • Chipset
    1. North bridge: SiS650GL IGUI Host Memory Controller
    2. South bridge: SiS961(B) MuTIOL® Media I/O
    3. REALTEK RTL8100L LAN chip
    4. Super I/O: Winbond 83697HF
  • Memori
    1. Type: PC133 SDRAM by 168-pin DIMM slot
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Slot Tambahan
    1. 3 x PCI slots (PCI 2.2 compliant)
  • Konektor I/O Internal
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB 1.1 connectors (4 ports by cable)
    3. 1 x FDD port
  • Konektor Panel Belakang
    1. 1 x VGA port
    2. 2 x USB 1.1 ports
    3. 1 x RJ45 LAN port (GA-8SKML)
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi Port
  • Pengawasan Hardware
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Paket Sofware
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 19.5 cm)
  • Pengaturan Prosesor/AGP/DIMM
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GL VGA driver
    2. REALTEK LAN driver
    3. REALTEK Sound Driver
  • Fitur Lainnya
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Daya
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

* Istilah HDMI, HDMI High-Definition Multimedia Interface, desain Dagang HDMI, dan Logo HDMI adalah merek dagang atau merek dagang terdaftar HDMI Licensing Administrator, Inc.
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
