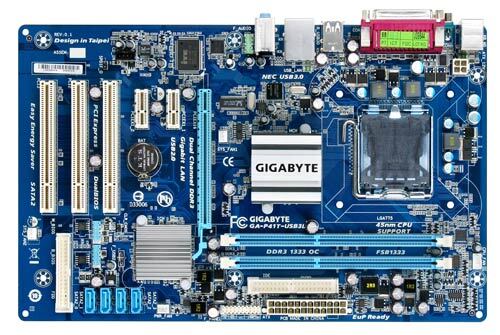

GA-P41T-USB3L (rev. 1.0)
Intel®G41 + ICH7 Chipset
- Revolution energy saving design with Easy Energy Saver technology
- Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates
- 3X USB power delivery for greater compatibility and extra power for USB devices
- Solid capacitors and Ferrite core choke design in CPU VRM
- Supports 45nm Intel Core 2 multi-core processors with FSB 1333 MHz
- Dual channel DDR3 1333(O.C.) for remarkable system performance
- Ultimate graphics performance with PCI-Ex16 interface
- Features high speed Gigabit Ethernet connection
- Patented DualBIOS with dual hardware BIOS protection
- Home theater quality 8-channel High Definition Audio
- Compatible with Window 7 to deliver the best operation experience
- Meet European Union ErP(Energy-related Products) requirement
USB 3.0 SupportThe GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.
* USB 3.0 10x performance is a maximum theoretical value. Actual performance may vary by system configuration.
3x USB Power BoostGIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
Solid Capacitor and Ferrite Core Choke for CPU VRMStable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors and Ferrite Core Choke for CPU VRM featuring better electronic conductivity, excellent heat resistance, and ensures a longer lifespan for systems in daily operation and boost system stability under extreme conditions.
Qualified for Windows® 7The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
GIGABYTE innovative technology- Easy Energy SaverGIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with Intel's highly efficient 45nm CPU's, Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
Intel® Core™ 2 multi-core and upcoming 45nm processorsGA-EP41T-UD3L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
Dual Channel DDR3 1333 (O.C)Experience the advanced technology of DDR3 1333(O.C) memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information.
DualBIOS™ - Patented Dual Hardware BIOS ProtectionDualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
SATA 3Gb/s storage interfaceSATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
Intel® High Definition AudioIntel® High Definition Audio enables 8 channel premium digital sound in the PC for an immersive surround sound experience. In addition, Intel HD Audio delivers multiple audio channels in your PC so you can listen to two different streams simultaneously in two separate rooms
Gigabit LAN connectivityThe Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
ErP Lot 6 supportThe ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
