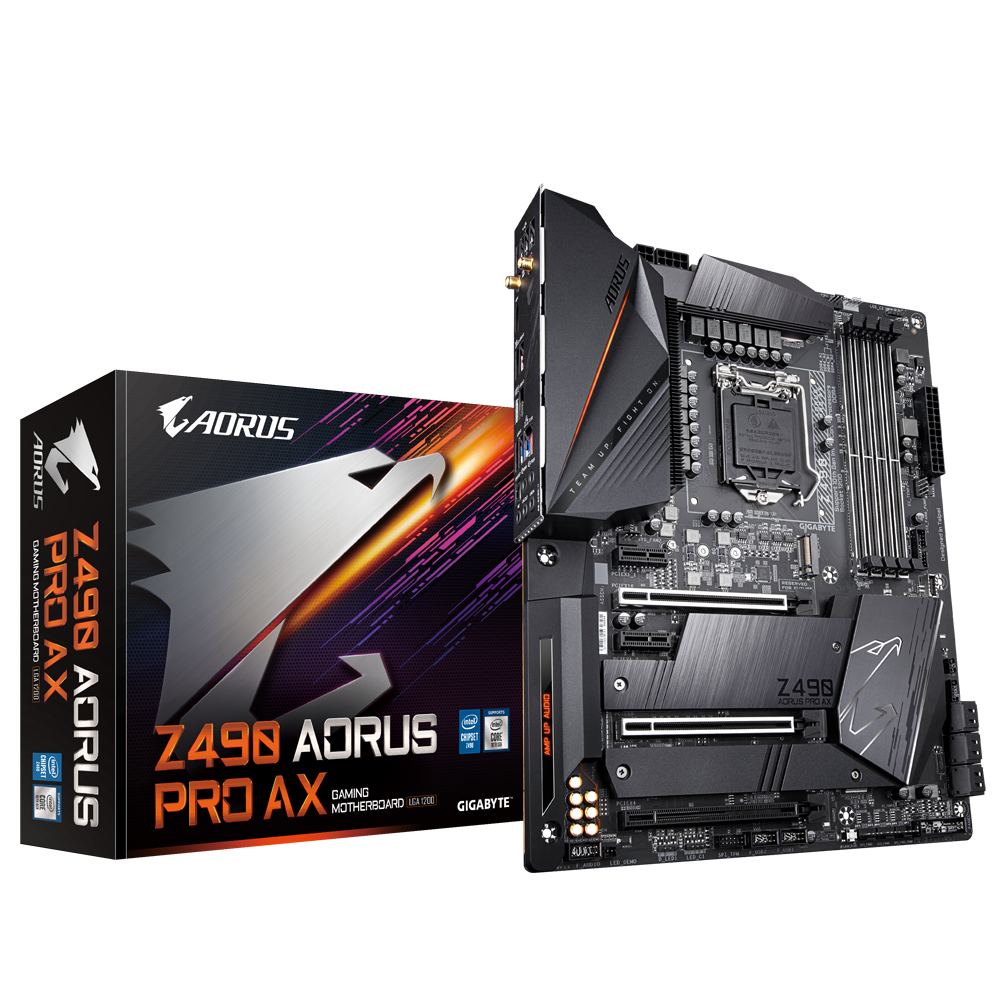

Z490 AORUS PRO AX (rev. 1.x)
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- Direct 12+1 Phases Digital VRM Solution with 55A DrMOS
- Shielded Memory Routing for Better Memory Overclocking
- Fins-Array II Heatsink and Direct Touch Heatpipe II
- Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
- AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
- Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
- Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
* Updated BIOS is required for compatibility.
- Fins-Array II
- Direct-Touch Heatpipe II
- 5 W/mK LAIRD Thermal Conductivity Pad
- 2X Enlarged M.2 Thermal Guard
- NVMe PCIe 3.0 x4
- ALC1220 Audio
- Audio Noise Guard
- High-End Audio Capacitor
- Audiophile Grade WIMA Capacitors
- Addressable LED Header*2
- RGB LED Header*2
- PCIe 4.0 Ready Mid-Loss PCB
- 55A DrMOS
- Premium Choke and Capacitor
- 6 Layer PCB
- 2X Copper PCB
- 24 Pin ATX Power Connector
- 8+4 Pin CPU Power Connector
- Running 1 x16 or 2 x8
- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 12+1 Phases DrMos without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 660 Amps current in total.
- Tantalum Capacitors Array to improve Transient response and minimize oscillation.
- 8+4 Solid Pin CPU Power Connectors
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 5000MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Please see the complete validated memory support list. Product features may vary by model.
AORUS RAID SSD 2TB*
Shows information on adaptors and SSDs are successfully detected.
Check adaptor and SSD working temperature, change fan profile as needed.
* Functions may vary by different platform.
* AORUS Storage Manager doesn't support un-RAID with one click, it has to be manually set up at BIOS.
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2A x 12V) with Over-Current Protection
■ Intuitive UI for Fan Control
Assume complete control over your liquid cooling setup! Smart Fan 5
on flow-rate and water-temperature through the Hybrid Fan Pin
external thermistor sensors—giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
- 5.5X throughput than 802.11ac 1x1*
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
- All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
- AORUS Antenna with smart antenna function for the best WIFI signal transmitting
- Multiple angle tilt and magnetic base for the best signal strength direction and location
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
