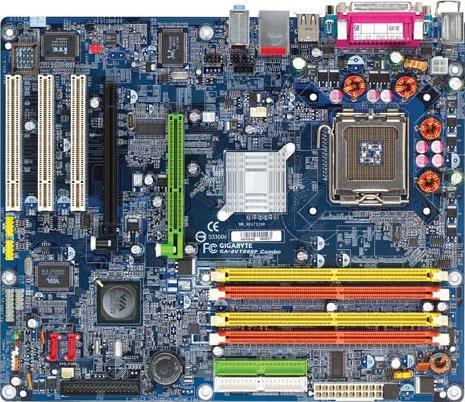

GA-8VT880P Combo (Rev. 1.x)

Rev. 1.xRev. 2.x
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. LGA775 Intel® Pentium® 4 processor
    2. Supports 800/533MHz FSB
  • Chipset
    1. Northbridge: VIA PT880 Pro
    2. Southbridge: VIA VT8237R
    3. Realtek 8110SB Gigabit LAN PHY chip
    4. Realtek ALC850 AC'97 Audio Codec
  • Memory
    1. Type: Dual Channel DDR2 533/400 or Dual Channel DDR 400/333
    2. Max capacity: 2 GB
    3. DIMM slots: 4
  • Expansion Slots
    1. 1 x PCIe X 16 slot (Running at PCI-E X 4 bandwidth due to PT880 Pro chipset limitation)
    2. 1 x AGP slot
    3. 3 x PCI slots
  • Internal I/O Connectors
    1. 2 x Serial ATA connector
    2. 2 x UDMA 133/100/66 IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 2 x cooling fan pin headers
    6. 1 x S/P-DIF input/output pin header
    7. CD in
  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 port
    3. 3 x Audio ports(Line-in / Line-out / MIC)
    4. PS/2 Keyboard/Mouse
    5. 2 x COM ports
    6. 1 x LPT
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM, Award BIOS
  • Form Factor
    1. ATX form factor
    2. 29.5 x 24.4 cm
  • Other Features
    1. Norton Internet Security
    2. XpressTM 3
    3. EasyTune™ 5
    4. M.I.T. (Motherboard Intelligent Tweaker)
    5. S.O.S. (System Overclock Saver)
    6. Download Center
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.
  • CPU
    1. LGA775 Intel® Pentium® 4 processor
    2. Supports 800/533MHz FSB
  • Chipset
    1. Northbridge: VIA PT880 Pro
    2. Southbridge: VIA VT8237R
    3. Realtek 8110SB Gigabit LAN PHY chip
    4. Realtek ALC850 AC'97 Audio Codec
  • Memory
    1. Type: Dual Channel DDR2 533/400 or Dual Channel DDR 400/333
    2. Max capacity: 2 GB
    3. DIMM slots: 4
  • Expansion Slots
    1. 1 x PCIe X 16 slot (Running at PCI-E X 4 bandwidth due to PT880 Pro chipset limitation)
    2. 1 x AGP slot
    3. 3 x PCI slots
  • Internal I/O Connectors
    1. 2 x Serial ATA connector
    2. 2 x UDMA 133/100/66 IDE connectors
    3. 1 x FDD connector
    4. 2 x USB 2.0/1.1 connectors (supports 4 ports)
    5. 2 x cooling fan pin headers
    6. 1 x S/P-DIF input/output pin header
    7. CD in
  • Back Panel Connectors
    1. 4 x USB 2.0/1.1 ports
    2. 1 x RJ45 port
    3. 3 x Audio ports(Line-in / Line-out / MIC)
    4. PS/2 Keyboard/Mouse
    5. 2 x COM ports
    6. 1 x LPT
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for case open, CPU voltage, and fan speed
  • BIOS
    1. 2M bit flash ROM, Award BIOS
  • Form Factor
    1. ATX form factor
    2. 29.5 x 24.4 cm
  • Other Features
    1. Norton Internet Security
    2. XpressTM 3
    3. EasyTune™ 5
    4. M.I.T. (Motherboard Intelligent Tweaker)
    5. S.O.S. (System Overclock Saver)
    6. Download Center
  • Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME. However we still offer available related drivers to serve our customers.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
