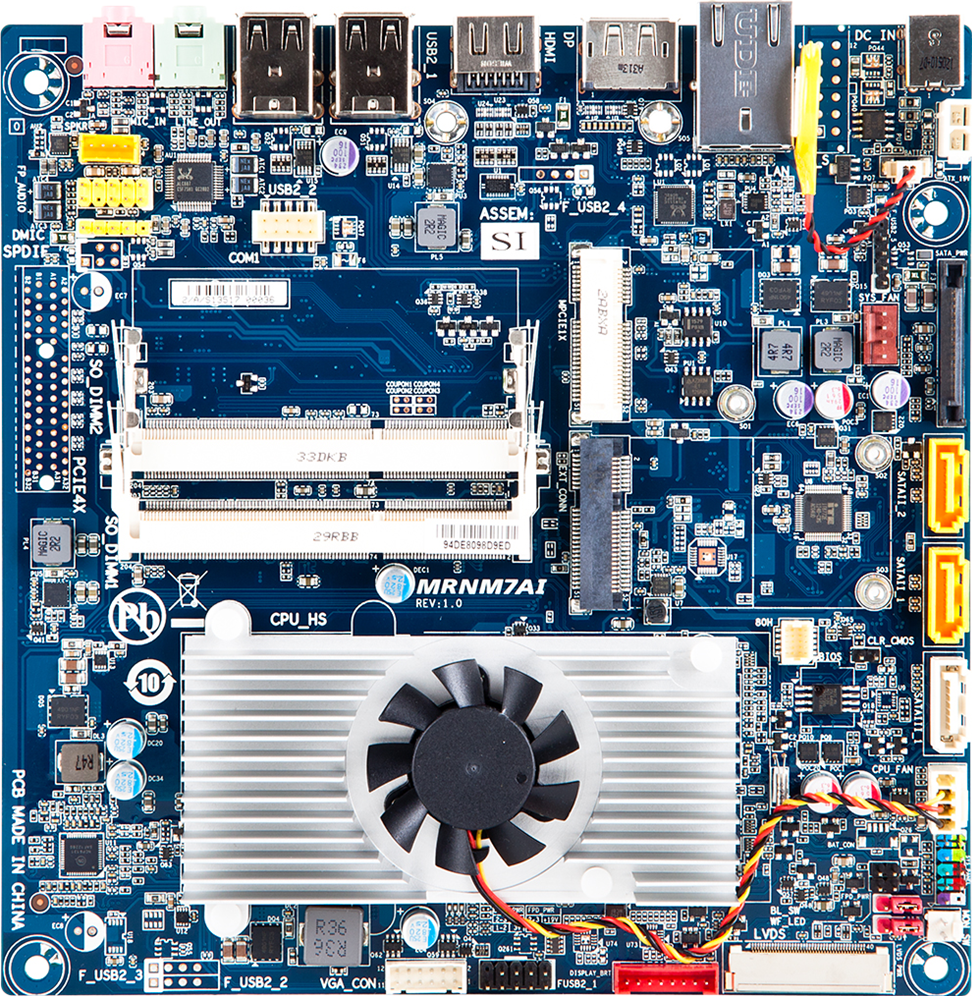

MRNM7AI

Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield

Intel^® Celeron^® 1037U
2 cores / 2 threads
1.8 GHz
17W max. TDP

1 x BGA 1023

Intel^® NM70

2 x SO-DIMM DDR3 slots
Dual channel memory architecture
Up to 16GB
1.5V modules: 1333 MHz

1 x GbE LAN port (Realtek^® RTL8111E)

Intel^® HD Graphics

Realtek^® ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

1 x SATA III 6Gb/s port
2 x SATA II 3Gb/s ports

-

1 x PCIe x4 (Gen3 x4 bus) slot (25W only)
1 x mSATA slot
1 x Half-size Mini-PCIe slot

1 x 2-pin ATX 19V power connector
1 x USB 2.0 headers
1 x Digital MIC
1 x LVDS 18/ 24bit
1 x Front audio header
1 x System fan header
1 x CPU fan header
1 x SATA power (15-pin)
1 x Front panel header
1 x Back light control
1 x Speaker
1 x VGA header
1 x Serial header
1 x MON SW

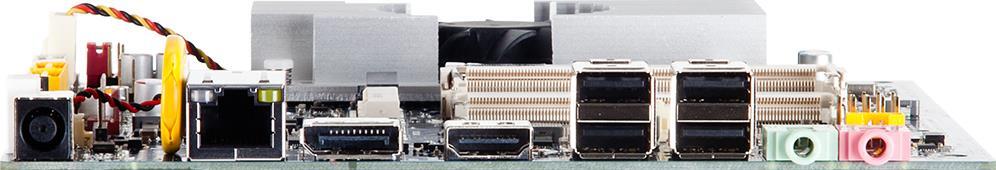

4 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ45
1 x Line-Out
1 x Mic-In
1 x DC-In

-

Windows 7 (32/64bit)
Windows 8 (32/64bit)

1 x DC-In 12V/19V
1 x 2-pin ATX 19V power connector

DC-In 19V or 12V
Adapters available in option:

• 90W, 19V, 4.7A, DC plug (74x51mm)

-

9MRNM7AINR-SI
