MSH61QI

Legacy | Firmware updates supported

Rev. 1.0

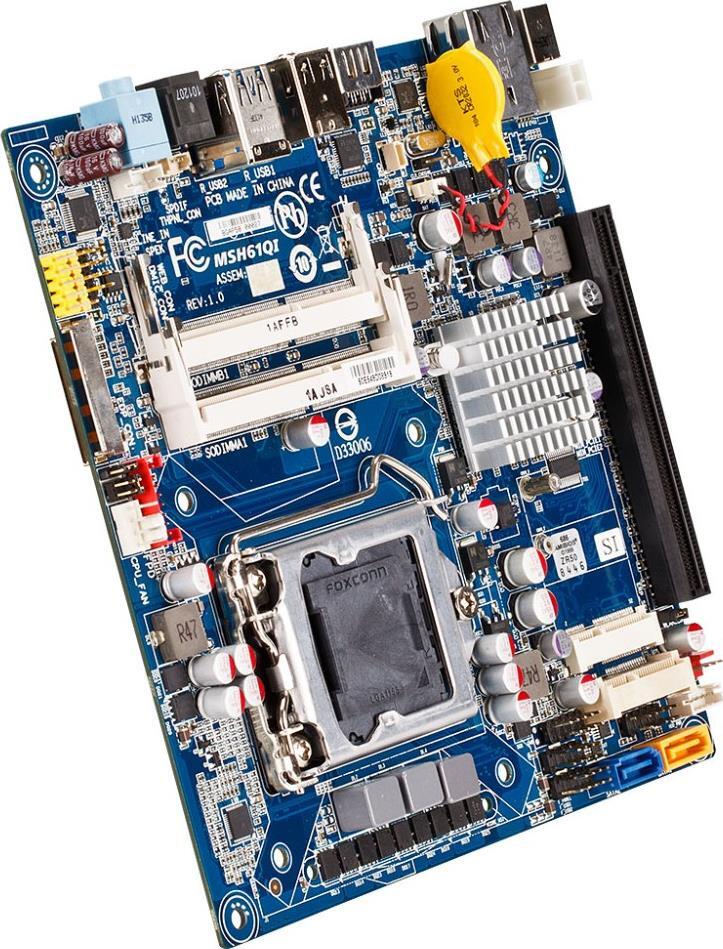

Thin Mini-ITX Motherboard

Compliant with Intel Thin Mini-ITX form factor, optimized for AIO PCs and space saving slim PCs
Socket LGA 1155 supporting 3rd Gen Intel Core processor family up to TDP 95W
Built with a PCIe x16 connector
Two built-in SO-DIMM slots supporting DDR3 1600MHz memory up to 8GB
Supports two SATA 6Gbps connectors
Gigabit Ethernet LAN supporting
One built-in half-sized mini card, and one mini PCIe for mSATA

儲存

產品規格

Board Size

Thin Mini-ITX (170x170mm)

Processor Supported

1 x LGA1155 socket
Supports Intel^® Core™ 2^nd & 3^rd generation i7 / i5 / i3 series
Up to 95W TDP
L3 cache based on CPU type

Chipset Description

Intel^® H61 Express Chipset

Memory Type

2 x SO-DIMM slots
Up to 8GB of DDR3 memory
2^nd generation Core processors support up to 1333MHz memory
3^rd generation Core processors support up to 1600MHz memory

Integrated Network

1 x Gigabit Ethernet Controller
Realtek RTL8111E (10/100/1000 Mbit)

Integrated Video Controller

Intel^® HD Graphics
2^nd generation Core processors support DirectX 10.1
3^rd generation Core processors support DirectX 11

Integrated Audio Controller

Realtek ALC887 controller

Integrated SATA Controller

2 x SATA II 3Gb/s ports

Expansion Slot

1x PCIe x16 slot
1x Mini-PCIe (full size)
1x Mini-PCIe (half size)

On Board Connectors

4x USB 2.0
1x Touch Panel Connecotor ( USB Interface )
1x Speaker connector
1x Web camera connector ( USB Interface )
1x Digital Mic con
1x Front Audio header
1x LVDS 24bit
1x CPU Fan
1x System Fan
1x SATA Power
1x ATX 19V 2Pin Connector
1x Front Panel

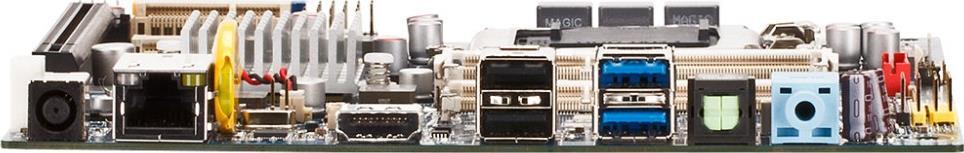

Rear I/O Connectors

2x USB 3.0
2x USB 2.0
1x HDMI-Out
1x RJ45
1x Line-In
1x SPDIF-Out
1x DC-In

OS Driver Supported

Windows 7
Windows 8

Power

19V DC 180W AC100~240V, 50~60Hz (universal)
