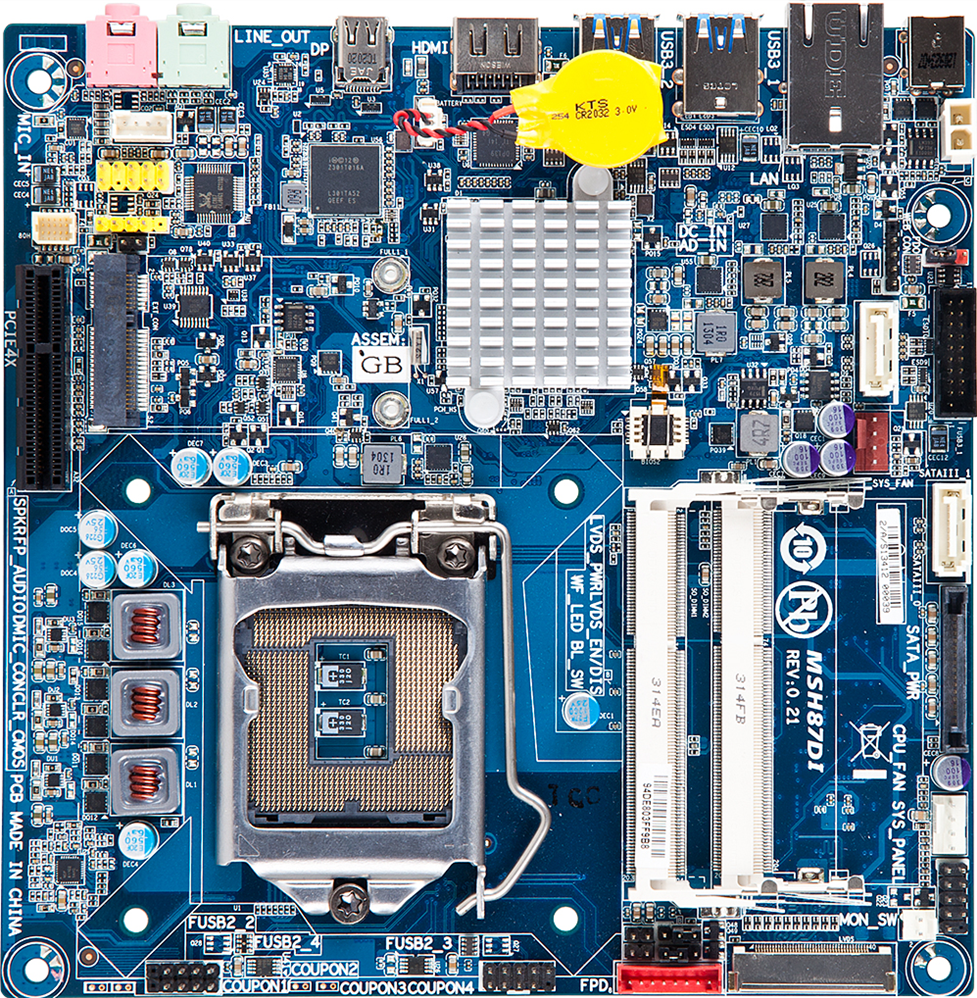

MSH87FI

Thin Mini-ITX
170W x 170D (mm)
2.5cm thick I/O shield

Operating temperature: -10°C to 60°C
Operating humidity: 0-85% (non-condensing)
ŠNon-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-85% (non-condensing)

4th Gen. Intel Core Processors
Up to 85W TDP

1 x LGA 1150

Intel H87

2 x SO-DIMM slots
1.5V Dual channel DDR3 memory
Up to 16GB
1333/1600MHz

1 x GbE LAN port (Realtek RTL8111G)

Intel HD Graphics
Max. resolution via HDMI: 4096 x 2304 @ 24Hz
Max. resolution via LVDS: 1920 x 1200 @ 60Hz

Realtek ALC887 controller
Supports 2/4/5.1/7.1 channel configurations

2 x SATA 6Gb/s ports
1 x mSATA slot supports SATA 6Gb/s

Intel SATA RAID 0/1

1 x PCIe x4 (3.0 x4 bus) slot (25W only)

1 x 19V power connector
1 x USB 3.0 header
3 x USB 2.0 headers
2 x SATA 6Gb/s ports
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x LVDS 18/24bit connector
1 x FPD header
1 x Front audio header
1 x Backlight control jumper
1 x LVD power selection jumper
1 x Speaker header
1 x Digital Mic header
1 x Webcam header
1 x MON_SW

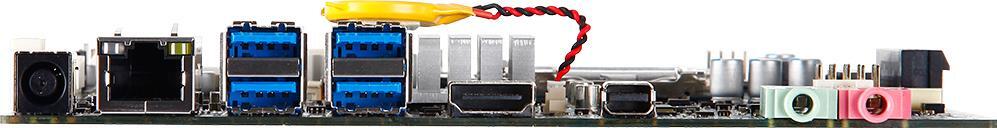

1 x DC-in
1 x RJ45
4 x USB 3.0
1 x Thunderbolt 2 20Gb/s
1 x HDMI v1.4
1 x Line-out
1 x MIC-in

-

Windows 8.1 (x32/x64)
Windows 8 (x32/x64)
Windows 7 (x32/x64)

1 x 12-19V DC-in or
1 x 19V power connector GIGABYTE recommends 180W power adapters for processors above 84W TDP. Processors with a TDP lower than 84W, may use 150W power adapters.
Adapters available in option:
- 120W, 19V, 6.3A, DC plug (74 x 51mm)
- 150W, 19V, 7.89A, DC plug (74 x 51mm)
- 180W, 19V, 9.47A, DC plug, (74 x 51mm)

1 x I/O shield

9MSH87FINR-SI
