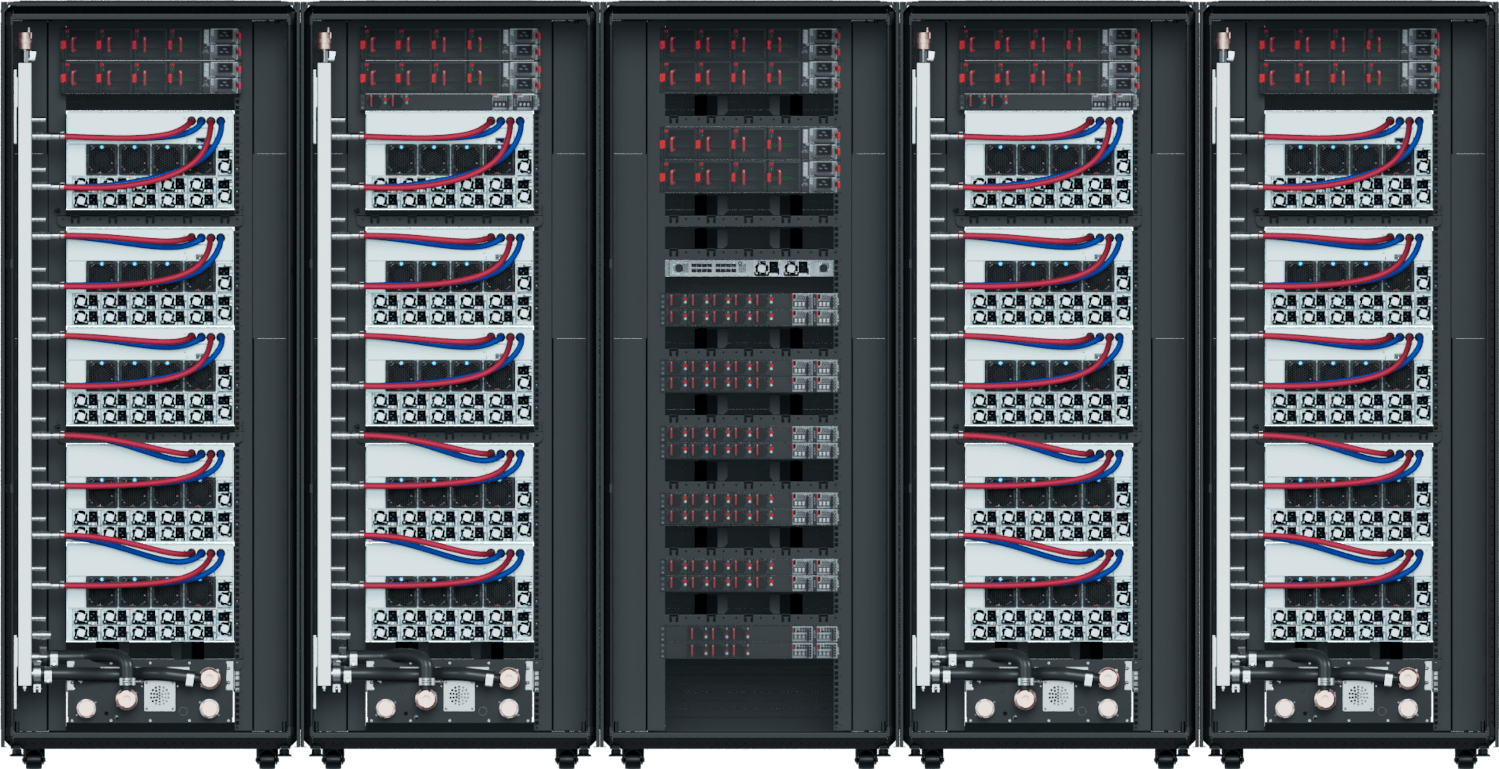

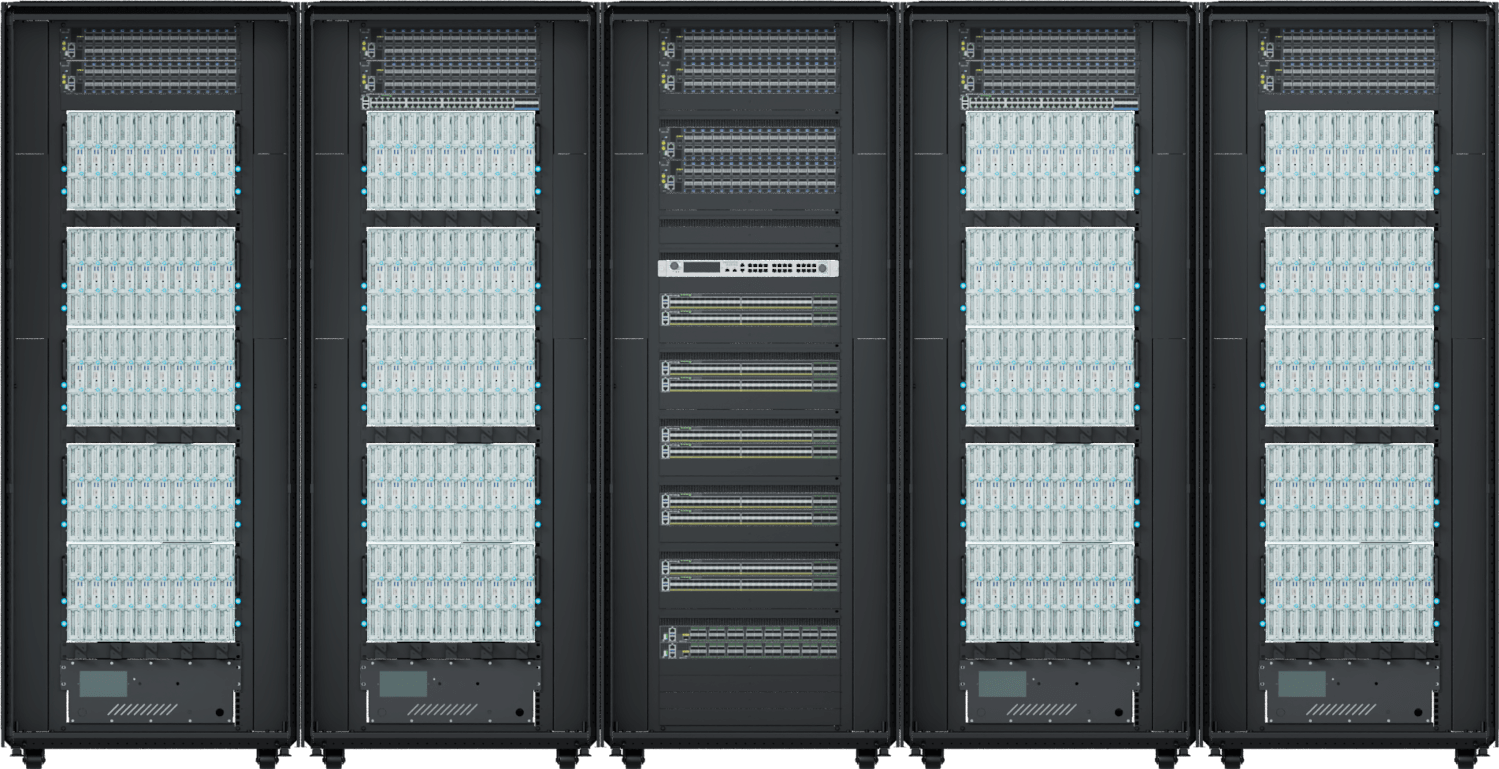

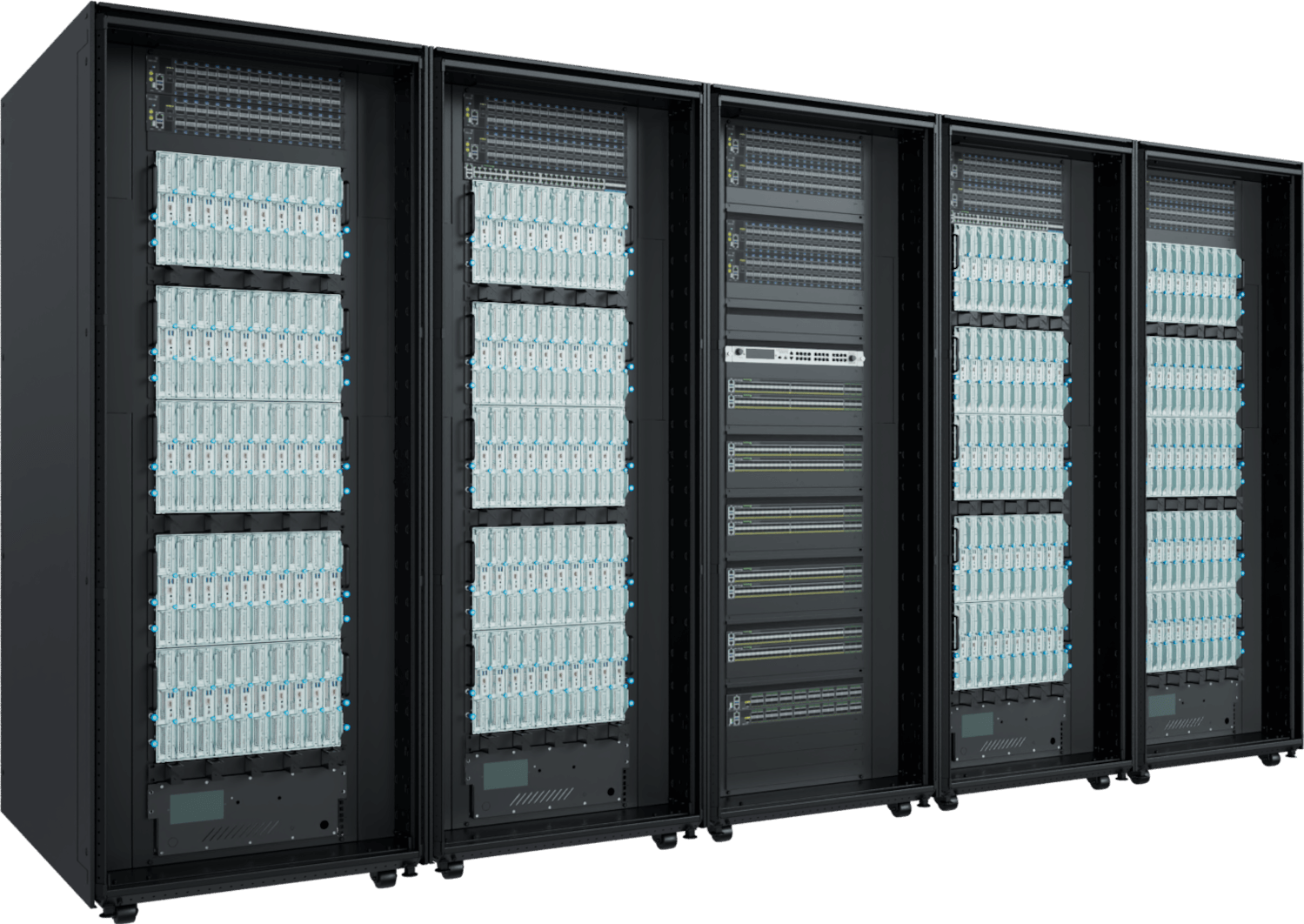

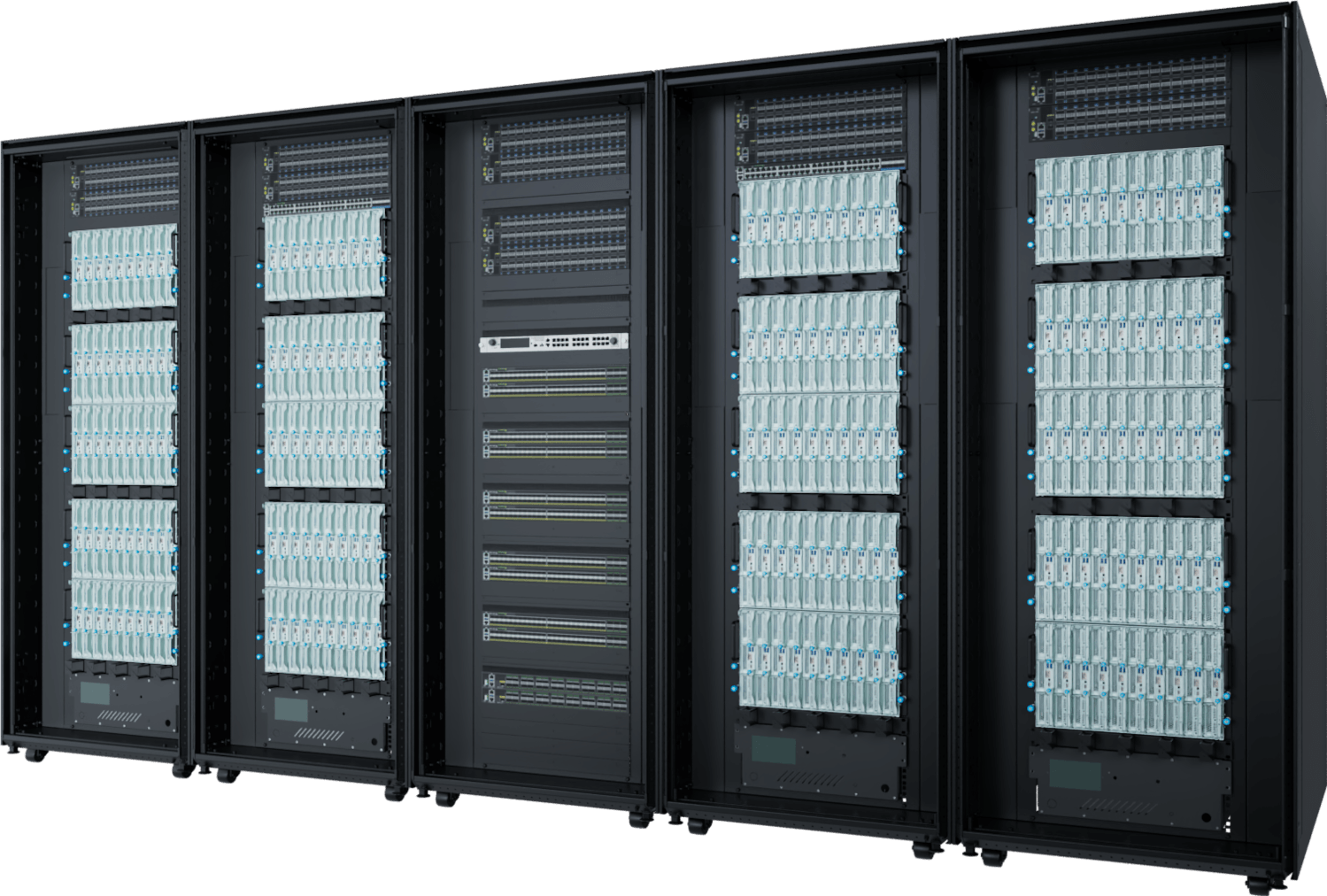

42U 200 Nodes
GIGAPOD HPC DLC POD Scale Solution
- 20 x GIGABYTE 6U10N DLC blade servers
- 400 x AMD EPYC™ 9005/9004 Server Processors or
Intel® Xeon® 6900E+/6900-Series Processors - Up to 90 kW rack power consumption
- Reserved space for InfiniBand / Ethernet switches
- Integrated G-REX cluster-level DLC power and cooling management kit
- Compatible with GIGABYTE POD Manager software for cluster management / orchestration
- Supports flexible storage with GIGABYTE storage servers and validated partner solutions
Configuration
| PH06 Series | ||
|---|---|---|
| Cooling Type | Direct Liquid Cooling | |
| Racks per Scalable Unit (Compute + Management) | 4+1 | |
| Rack Height | 42U | |
| Server Model | ||
| Servers per Rack | 5 x 6U10N DLC blade servers | |
| CPU | AMD EPYC™ 9005 Server Processors AMD EPYC™ 9004 Server Processors Total 400 processors | Intel® Xeon® 6+ Processors - Intel® Xeon® 6900E+ Processors Intel® Xeon® 6 Processors - Intel® Xeon® 6900-Series Processors Total 400 processors |
| Switch | Flexible validated InfiniBand / Ethernet switch configurations | |
| PDUs per Rack | 4 x PDUs | |
| PDU Specifications | Input: 415 V, 100 A, 3-phase | |
| Rack Power Consumption | Up to 90 kW | |

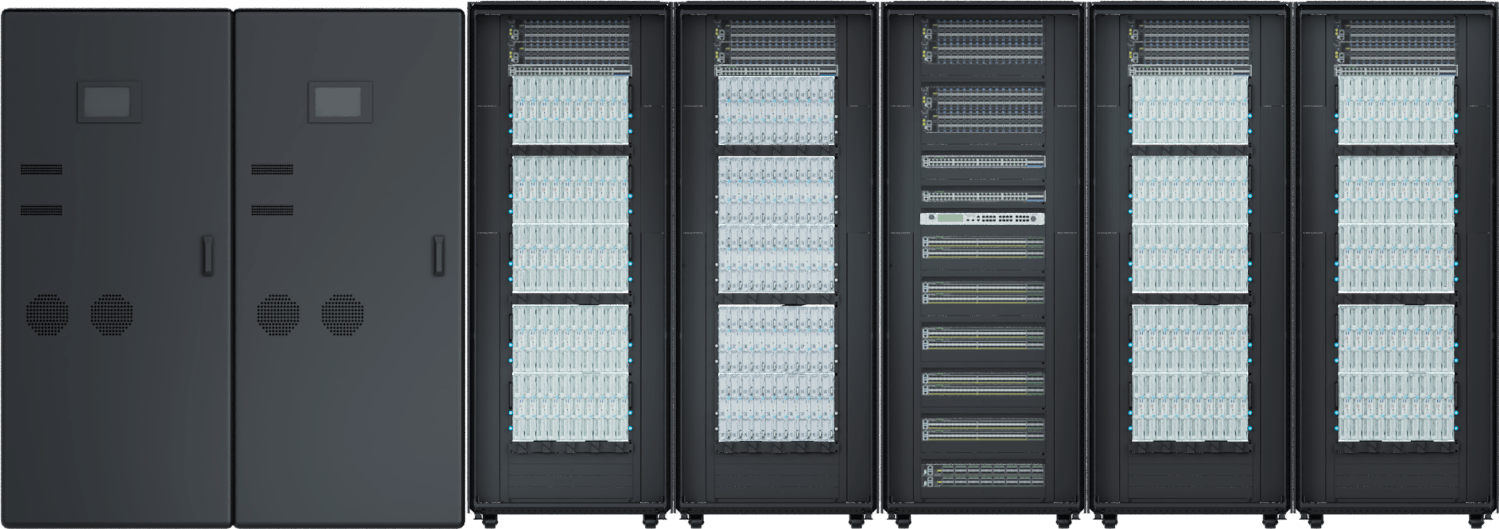

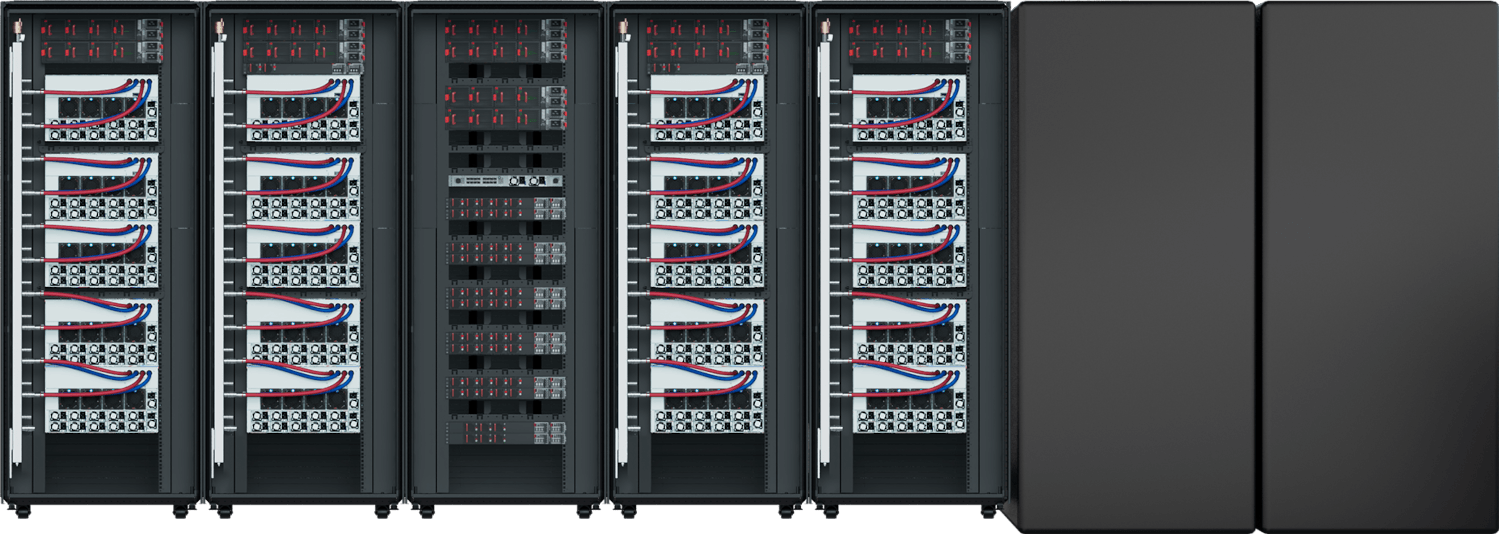

| CDU | In-Rack / In-Row | |
| CDU Specifications | In-Rack Liquid-to-Liquid CDU: Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 1P / AC 220-240 V / 50-60 Hz 1+1 redundant power supplies and pumps In-Row Liquid-to-Liquid CDU: Cooling Capacity: 1350 kW (4°C approach temperature) Primary Loop Connections: 5" clamp interface (inlet/outlet) Input Power: 2 x IEC 60309 100A (4P5W, 6h plug), AC 380 V ±10% / 3P / 60 Hz 1+1 redundant pumps and redundant A/B power feeds [Note] The Facility Water System (FWS) loop must meet the water quality values specified in ASHRAE Liquid Cooling Guidelines for Datacom Equipment Centers, 2nd ed., Ch. 5, as reproduced in the ASHRAE TC 9.9 white paper Water-Cooled Servers: Common Designs, Components, and Processes (2019), Table 1. | |
| Management | Integrated G-REX DLC power and cooling management kit: - N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring | |
| Storage Solutions | Flexible validated partner solutions with GIGABYTE storage servers | |
