G293-S43-AAP1

HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 16 x PCIe Gen5 GPUs (with PCIe switches)
  • NVIDIA-Certified Systems™ - Data Center Servers
  • Supports up to 16 x Single slot Gen5 GPUs
  • Dual 5th/4th Gen Intel® Xeon® Scalable Processors
  • 8-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
  • 4 x 2.5" SATA/SAS hot-swap bays
  • 16 x FHFL PCIe Gen5 x16 slots for GPUs
  • 2 x LP PCIe Gen5 x16 slots for add-in cards
  • Dual 3000W 80 PLUS Titanium redundant power supply
Get a Quote
* 以上產品之規格、圖片及其他資訊僅供參考,如與實際產品有任何不相符之處,應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失,技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值,實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示,均為其合法所有人之財產。
* 基於PC基本架構,有部分記憶體空間須留作系統用途,故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
Motherboard
MS43-G20
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors

Dual processor, TDP up to 225W

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Chipset
Intel® C741
Memory
24 x DIMM slots
DDR5 memory supported
8-Channel memory architecture

5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC)

4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
LAN
Rear:
2 x 10Gb/s LAN (Intel® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS [1]
4 x 2.5" SATA/SAS [1]
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)

[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Intel® SATA RAID 0/1/10/5
Onboard VROC key header

Support optional RAID add-in cards

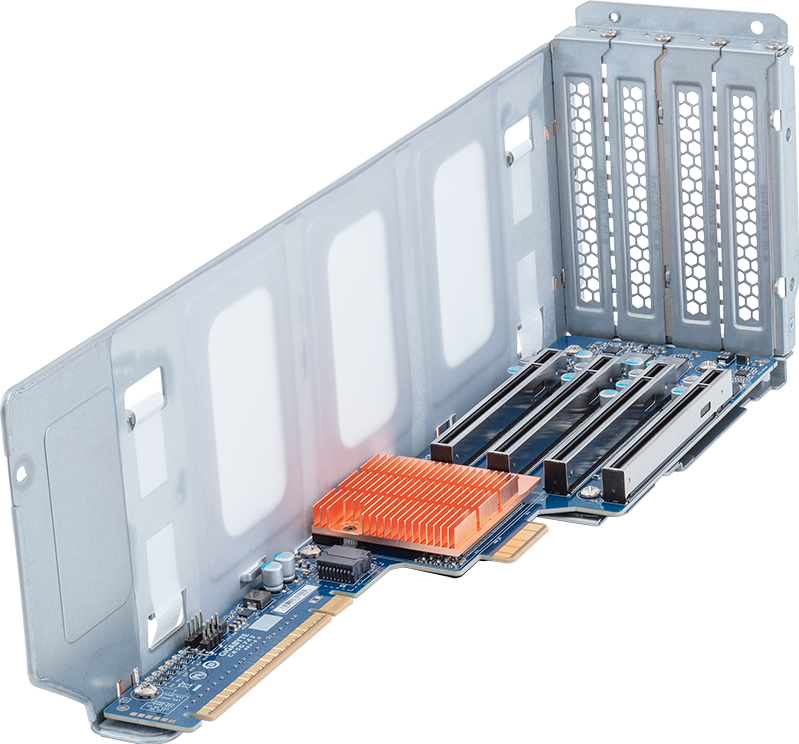

PCIe Expansion Slots
Riser Card CRSG742 x 2:
- 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs

Riser Card CRSG743 x 2:
- 8 x FHFL x16 (Gen5 x16), from PEX89088, for GPUs

Riser Card CRSG01F x 2:
- 1 x LP x16 (Gen5 x16), from CPU_0
- 1 x LP x16 (Gen5 x16), from CPU_1

[Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.

[Note] The system is only validated with a uniform GPU model.

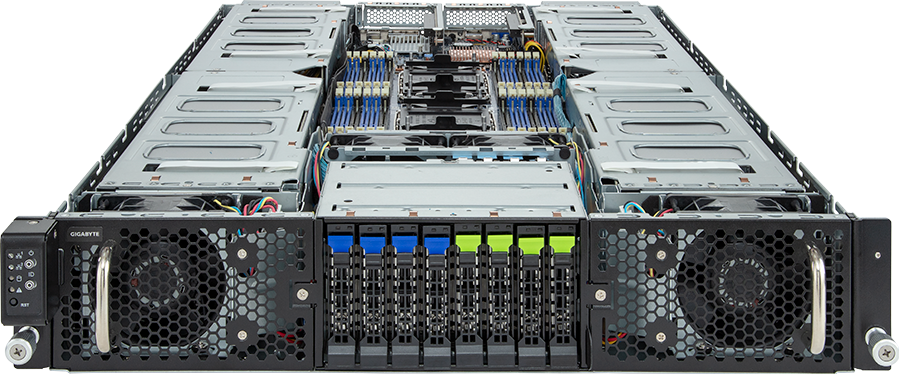

Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

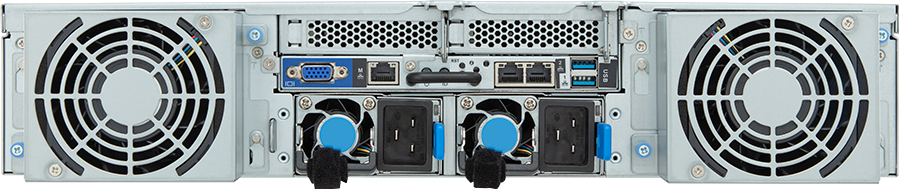

Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply [1]

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page

Additional certifications:
Windows Server 2022
System Fans
8 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 34.71 kg
Gross Weight: 52 kg
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G293-S43-AAP1
2 x CPU heatsinks
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NG293S43DR000ABP1*
- Barebone package (4th Gen): 6NG293S43DR000AAP1*
- Motherboard: 9MS43G20UR-000*
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-35320F-C1R/25ST1-453207-C1R
- Backplane board - CBPG086: 9CBPG086NR-00*
- Fan module: 25ST2-88382R-S1R
- Riser card - CRSG01F: 9CRSG01FNR-00*
- Riser card - CRSG742: 9CRSG742NR-00*
- Riser card - CRSG743: 9CRSG743NR-00*
- Power supply: 25EP0-230005-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293S43SR-RMA-A100
