G293-S47-AAP1
HPC/AI Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP NVIDIA OVX™ 4 x PCIe Gen5 GPUs
- NVIDIA-Certified Systems™ - OVX Servers
- Optimized for NVIDIA OVX™ L40S Server with 4 GPUs configuration
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 8 x 2.5" Gen5 NVMe/SATA hot-swappable bays
- Dual 3000W 80 PLUS Titanium redundant power supply
* 以上產品之規格、圖片及其他資訊僅供參考,如與實際產品有任何不相符之處,應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失,技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值,實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示,均為其合法所有人之財產。
* 基於PC基本架構,有部分記憶體空間須留作系統用途,故所偵測到之記憶體大小會比實際上較少。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值,實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示,均為其合法所有人之財產。
* 基於PC基本架構,有部分記憶體空間須留作系統用途,故所偵測到之記憶體大小會比實際上較少。
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
448 x 87.5 x 800
Motherboard
MS43-G21
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 225W
- NVIDIA OVX Specifications: 2 x Intel® Xeon® Gold 6448Y
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 225W
- NVIDIA OVX Specifications: 2 x Intel® Xeon® Gold 6448Y
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
- NVIDIA OVX Specifications: Minimum 384GB DDR5 ECC (1 DIMM per slot)
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
- NVIDIA OVX Specifications: Minimum 384GB DDR5 ECC (1 DIMM per slot)
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Broadcom® BCM57416)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
8 x 2.5" Gen5 NVMe/SATA hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage
8 x 2.5" Gen5 NVMe/SATA hot-swappable bays
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRCG320 x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
Riser Card CRSG22A x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from DS320PR810
- NVIDIA OVX Specifications: 4 x NVIDIA L40S
- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)
Riser Card CRSG01F x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
- NVIDIA OVX Specifications: 2 x ConnectX-7 (2x200Gb)
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
Riser Card CRSG22A x 2:
- 2 x PCIe x16 (Gen5 x16) FHFL slots, from DS320PR810, for GPUs
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from DS320PR810
- NVIDIA OVX Specifications: 4 x NVIDIA L40S
- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)
Riser Card CRSG01F x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1
- NVIDIA OVX Specifications: 2 x ConnectX-7 (2x200Gb)
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

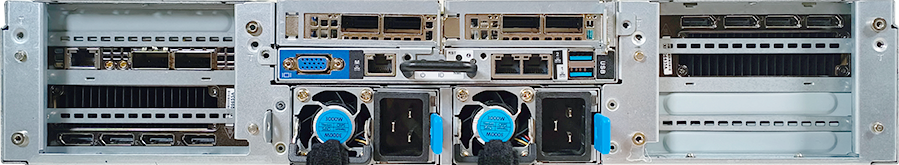

Rear I/O
2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s
PCIe Gen5 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
6 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G293-S47-AAP1
2 x CPU heatsinks
2 x GPU power cables (12VHPWR, 250mm)
2 x GPU power cables (12VHPWR, 350mm)
6 x Carriers
1 x L-shape Rail kit
2 x CPU heatsinks
2 x GPU power cables (12VHPWR, 250mm)
2 x GPU power cables (12VHPWR, 350mm)
6 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NG293S47DR000ABP1*
- Barebone package (4th Gen): 6NG293S47DR000AAP1*
- Motherboard: 9MS43G21UR-000
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-35320F-C1R/25ST1-453207-C1R
- Backplane board - CBPG086: 9CBPG086NR-00
- Fan module: 25ST2-88382R-S1R
- Riser card - CRCG320: 9CRCG320NR-00
- Riser card - CRSG01F: 9CRSG01FNR-00
- Riser card - CRSG22A: 9CRSG22ANR-00
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 350mm): 25CRI-350006-Y4R
- Power supply: 25EP0-230005-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293S47SR-RMA-A100
- Barebone package (4th Gen): 6NG293S47DR000AAP1*
- Motherboard: 9MS43G21UR-000
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-35320F-C1R/25ST1-453207-C1R
- Backplane board - CBPG086: 9CBPG086NR-00
- Fan module: 25ST2-88382R-S1R
- Riser card - CRCG320: 9CRCG320NR-00
- Riser card - CRSG01F: 9CRSG01FNR-00
- Riser card - CRSG22A: 9CRSG22ANR-00
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 350mm): 25CRI-350006-Y4R
- Power supply: 25EP0-230005-G1S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293S47SR-RMA-A100
