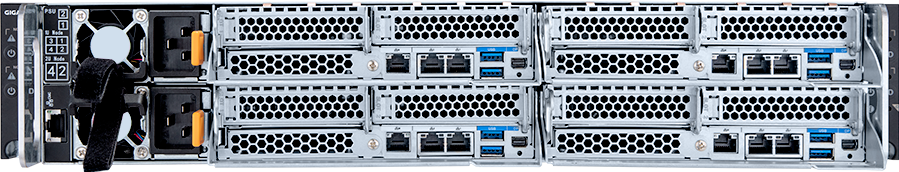

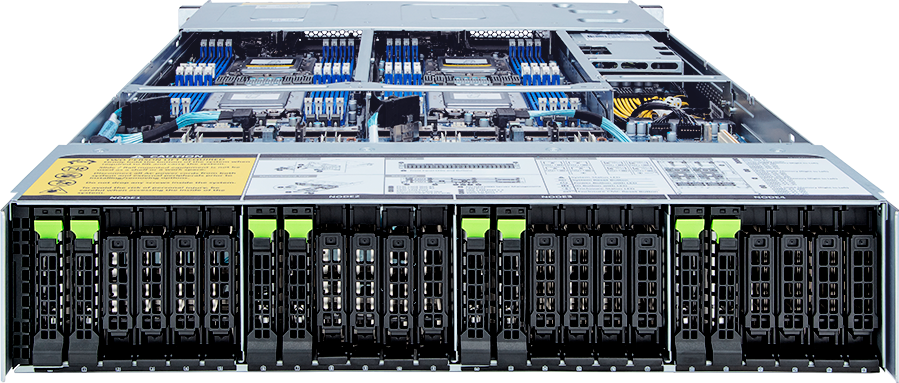

H262-Z6B-ICP1

Other SKUCompare

ICP1Immersion 3000W PSU

ICU1Immersion 2200W PSU

2U 4-Node - Front access
440 x 87.5 x 840

MZ62-HD4 Rev. 3.0

AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors

Dual processor, TDP up to 280W

^[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

8 x LGA 4094
Socket SP3

System on Chip

64 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s

Top:
8 x 1Gb/s LAN (4 x Intel^® I350-AM2)
- Support NCSI function

4 x 10/100/1000 Mbps Management LAN
1 x CMC port

Integrated in ASPEED^® AST2500 x 4
- 4 x Mini-DP

Bottom hot-swap:
8 x 2.5" Gen4 NVMe/SATA
- (NVMe from CPU_1)
- (SATA from CPU_0)

Internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

N/A

N/A

Riser Card CRSH01E x 4:
- 4 x LP x16 (Gen4 x16), from CPU_0

Riser Card CRSH01H x 4:
- 4 x LP x16 (Gen4 x16), from CPU_0

4 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Support NCSI function

8 x USB 3.2 Gen1 ports (Type-A)
4 x Mini-DP
8 x RJ45 ports
4 x MLAN ports
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
4 x ID LEDs
1 x CMC port
1 x CMC status LED
1 x CMC reset button

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Dual 3000W 80 PLUS Titanium power supply ^[1]

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A

^[1] The system power supply requires C19 power cord.

ASPEED^® AST2500 Baseboard Management Controller
ASPEED^® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Operating coolant temperature: 25°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1180 x 779 x 300 mm

1 x H262-Z6B
8 x CPU heatsinks

- Barebone package: 6NH262Z6BRR000ICP1*
- Motherboard: 9MZ62HD4NR-00*
- CPU heatsink: 25ST1-443109-A3R/25ST1-44310A-A3R
- Backplane board: 9CBPH082NR-00*
- Riser card - CRSH01E: 9CRSH01ENR-00*
- Riser card - CRSH01H: 9CRSH01HNR-00*
- Power supply: 25EP0-23000E-G1S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP061: 9CMTP061NR-00*
- Ring topology kit: 6NH262Z65SR-00-100
