ME03-CE0

Rev. 1.0

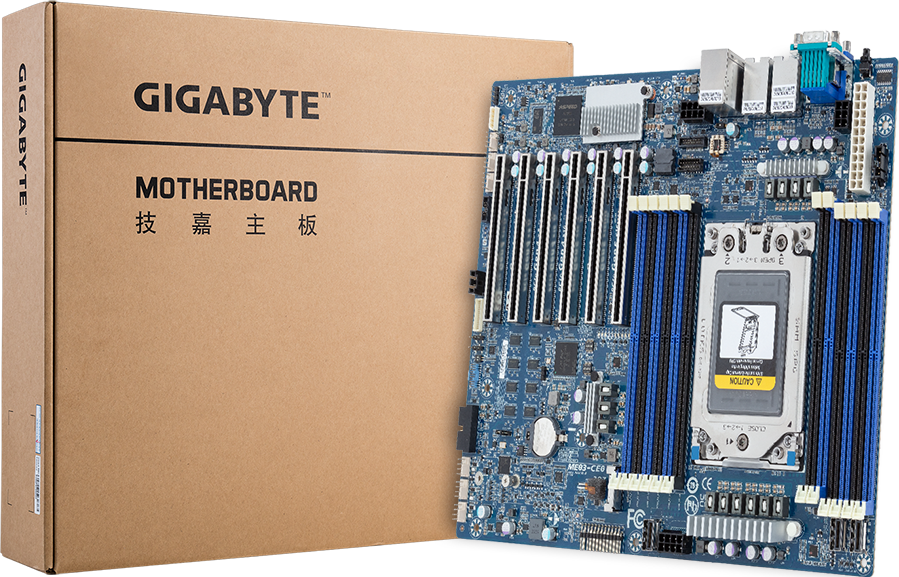

Motherboard - AMD EPYC™ 8004 - ATX UP 10Gb/s LAN

Single AMD EPYC™ 8004 Series Processors
6-Channel RDIMM DDR5, 12 x DIMMs
2 x 10Gb/s LAN ports via Broadcom^® BCM57416
3 x MCIO 4i connectors with PCIe Gen5 x4 or SATA interface
1 x M.2 slot with PCIe Gen3 x4 interface
3 x PCIe Gen5 x16 expansion slots
3 x PCIe Gen4 x16 and x8 expansion slots

Get a Quote

加入比較表

Get a Quote

* 以上產品之規格、圖片及其他資訊僅供參考，如與實際產品有任何不相符之處，應以實際產品為準。技嘉科技保留在任何時間做出修改之權利。對任何因使用上述資料而引致之損失，技嘉科技概不承擔任何責任。
* 本產品所標示之各項效能表現為各晶片廠商或各制定介面官方組織所提出的最大理論值，實際效能可能因規格及設備而有所不同。
* 本文中所使用之各項商標及企業識別圖示，均為其合法所有人之財產。
* 基於PC基本架構，有部分記憶體空間須留作系統用途，故所偵測到之記憶體大小會比實際上較少。

SPECIFICATIONS

Board Size

ATX
304.8W x 254D mm

Processor Supported

AMD EPYC™ 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W

Socket

1 x LGA 4844
Socket SP6

Chipset Description

System on Chip

Memory Type

12 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

Integrated Network

2 x 10Gb/s LAN ports (1 x Broadcom^® BCM57416)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Integrated Audio Controller

N/A

Storage Interface

3 x MCIO 4i connectors for 3 x Gen5 NVMe or 12 x SATA 6Gb/s

Support RAID Function

N/A

Expansion Slot

Slot_6: PCIe x16 (Gen5 x16) slot
Slot_5: PCIe x16 (Gen5 x16) slot
Slot_4: PCIe x16 (Gen5 x16) slot
Slot_3: PCIe x16 (Gen4 x16) slot
Slot_2: PCIe x16 (Gen4 x8) slot
Slot_1: PCIe x16 (Gen4 x16 or x8) slot, shared with Slot_2

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards

3 x MCIO 4i (PCIe Gen5 x4 or SATA) connectors

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
3 x MCIO 4i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

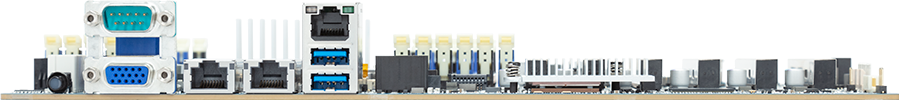

Rear I/O Connectors

2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x ME03-CE0
1 x I/O shield
1 x Quick start guide
1 x MCIO 4i to 4 x SATA 6Gb/s cable

Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x ME03-CE0
10 x I/O shields

Carton dimensions: 600 x 473 x 495 mm

Ordering Information

Retail: 9ME03CE0MR-000-10*
Bulk: 9ME03CE0NR-000-10*

Part Numbers:

- I/O shield: 12AIO-ME03CE-00R
- MCIO 4i to 4 x SATA cable: 25CF9-780721-A4R
