B353-C60-AAS1

Blade Server - AMD EPYC^™ 4005/4004 & Ryzen^™ 9000/7000 Series Processors - 3U 10-Blade 20-Node UP

Networking Hybrid/Private Cloud Server

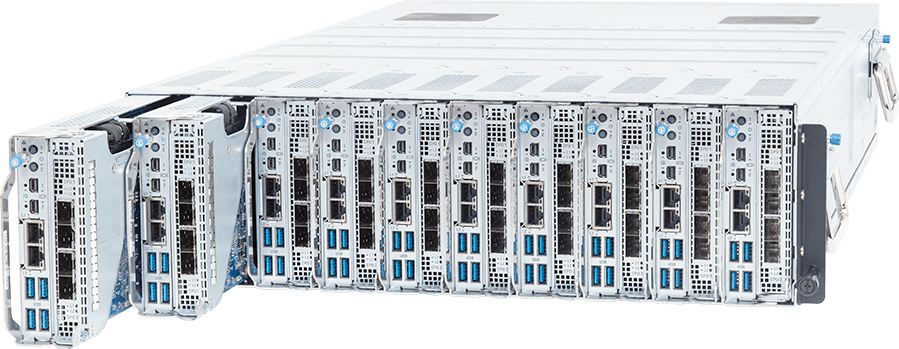

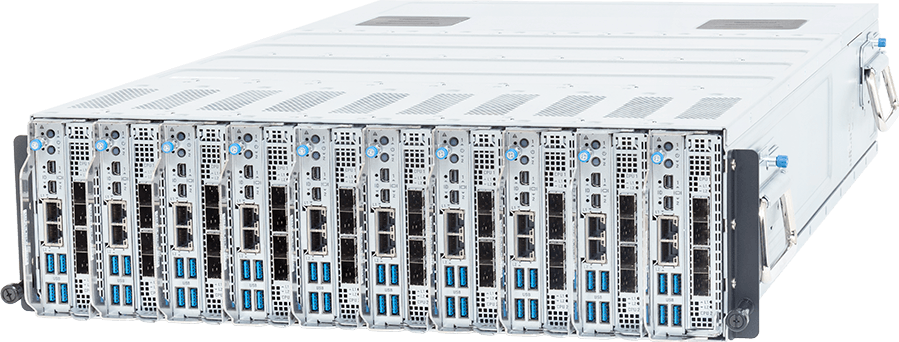

3U 10-blade 20-node front access server system
Single AMD EPYC^™ 4005/4004 & Ryzen^™ 9000/7000 Series processors per node
Dual Channel DDR5 ECC/Non-ECC UDIMM per CPU with 4 x DIMMs per node
2 x 25 Gb/s SFP28 LAN ports & 1 x 1 Gb/s LAN port per node
2 x CMC LAN ports
2 x M.2 slots with PCIe Gen5 x4 per node
4 x 3200 W 80 PLUS Titanium redundant power supplies

Ordering Numbers: 6NB353C60MR000ACS1*

Compare

Save

Quote

AMD EPYC™ CPUs for 24x7 Business Growth and Manageability

AMD EPYC™ 4004 Series Processors were a welcome addition to the 4th Gen AMD EPYC™ processor family, and now the 4005 Series comes out of a new processor family with “Zen 5” core architecture - lowering the threshold for businesses and hosting services that have been wanting to move to a platform with a server OS and other enterprise features, yet at an optimal price point in GIGABYTE solutions. SMB and hosting services rely on server-grade reliability so they can continue running 24x7. At the same time, they need to have a higher degree of manageability than what is found at the consumer level. On top of validating, GIGABYTE provides GIGABYTE Management Console (GMC) for system management and GIGABYTE Server Management (GSM) software for monitoring multiple servers.

AMD EPYC 4005 Series Processor

AMD AM5 Socket is versatile as it can support the consumer platform yet is able to step into the field of enterprise-level applications, and GIGABYTE has motherboards and servers to support it. Taking advantage of its low cost per core and high core count options, the first processor on this platform, the AMD Ryzen™ 7000 Series, has proven its value in the enterprise server market. Now leaping to the AMD EPYC™ 4005 Series, AMD furthers expands capabilities by including even more enterprise features, such as support for Windows Server 2025. Using “Zen 5” architecture, processors can easily handle compute-heavy workloads yet are multiskilled for users to find an optimal choice for applications where performance, productivity, and efficiency matter.

4nm

process

Up to 16

cores

Up to 32

threads

B650E

chipset

PCIe 5.0

support

Up to 5600 MT/s

DDR5

Select GIGABYTE for the AMD EPYC™ 4005 Platform

Support for Server OS

GIGABYTE has validated AM5 platforms for compatibility with Windows Server 2025 and Ubuntu 24.04, for greater manageability and security.

Ease of Management

GIGABYTE servers come with GIGABYTE Management Console for IPMI management. And when using a server OS, greater management and control is possible.

Continuous Operation

GIGABYTE solutions have RAS features for continuous uptime and availability as users require and expect stable performance around the clock.

Energy Efficient

The use of high-efficiency VRMs & MOSFETs and low ESR capactitors & DCR choke achieve higher levels of efficiency in servers and motherboards.

Low-cost

With a cost down approach to design, unnecessary features are omitted, ensuring enterprise features in a very favorable, entry-level price point.

Ideal Form Factor

From micro ATX motherboard to short depth edge server to traditional rack server, every deployment scenario is covered in the GIGABYTE AM5 platform.

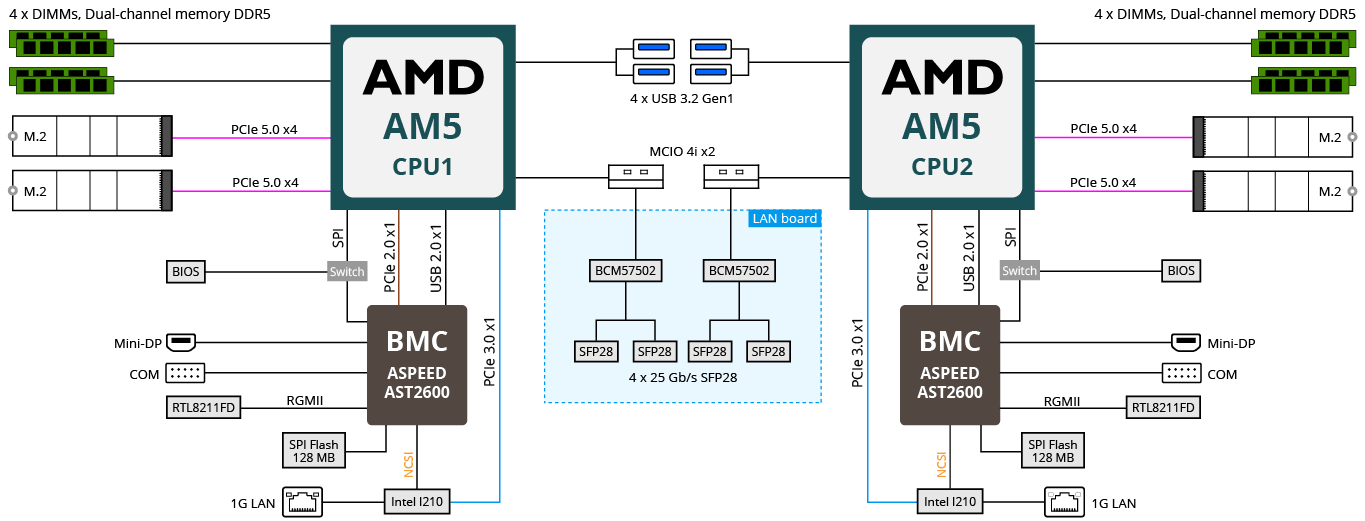

B353-C60-AAS1 Block Diagram

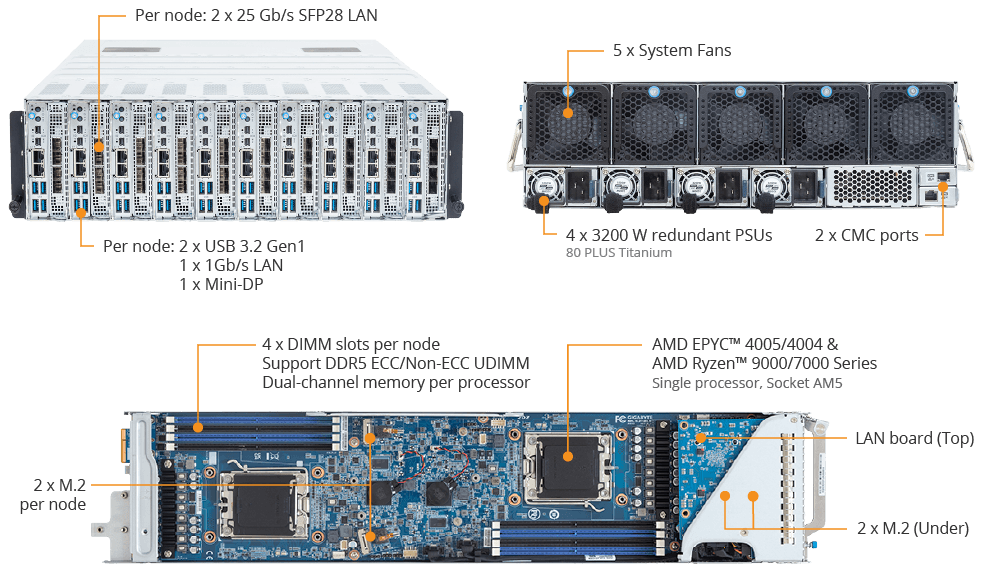

B353-C60-AAS1 Product Overview

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

Ring Topology Example

User Friendly

Flexible and Resilient Management Architecture

The integration of CMC technology and auto-IP detection simplifies node discovery and deployment, enabling flexible cluster architectures including resilient ring topologies. The bi-directional ring design significantly enhances cluster stability by automatically rerouting traffic upon failure to ensure uninterrupted oversight and self-healing connectivity across the remaining nodes.

Specifications

Dimensions (WxHxD, mm)

3U 10-Blade 20-Node - Front access
447 x 132 x 770

Motherboard

MC63-BL0

CPU

AMD EPYC^™ 4005 Series processors
AMD EPYC^™ 4004 Series processors
AMD Ryzen^™ 9000 Series processors
AMD Ryzen^™ 7000 Series processors

Single processor per node, TDP up to 65 W

^[Note]Overclocking is not supported due to thermal limitations.

^[Note]Mixing different CPU series across nodes is not recommended due to thermal considerations.

Socket

20 x AM5

Chipset

N/A

Memory

4 x DIMM slots per node
Support DDR5 ECC/Non-ECC UDIMM
Dual-channel memory per processor

AMD EPYC^™ 4005 / Ryzen^™ 9000:
Up to 5600 MT/s (1DPC), 3600 MT/s (2DPC)

AMD EPYC^™ 4004 / Ryzen^™ 7000:
Up to 5200 MT/s (1DPC), 3600 MT/s (2DPC)

LAN

Front (LAN board):
2 x 25 Gb/s SFP28 LAN (1 x Broadcom^® BCM57502) per node
1 x 1 Gb/s LAN (1 x Intel^® I210-AT) per node
- Supports NCSI

Rear (MLAN board x 2):
2 x Chassis Management LAN^[1]

^[1]Spanning Tree Protocol (STP) must be enabled on LAN switches when using a ring topology.

Video

Integrated in ASPEED^® AST2600
- 1 x Mini-DP per node

Storage

Internal M.2:
2 x M.2 (2280) per node, PCIe Gen5 x4

PCIe Expansion Slots

N/A

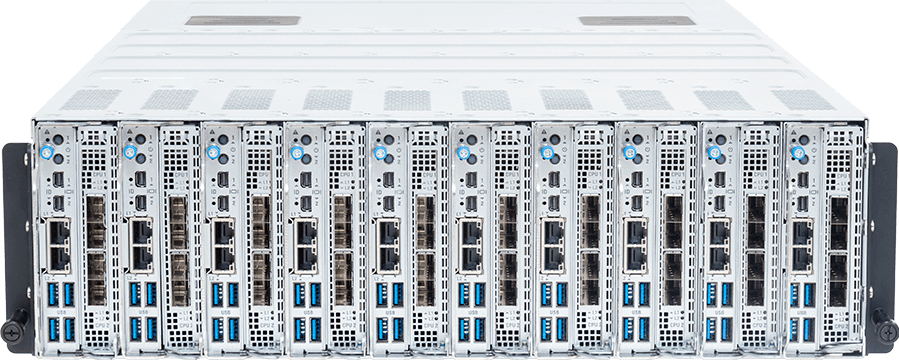

Front I/O

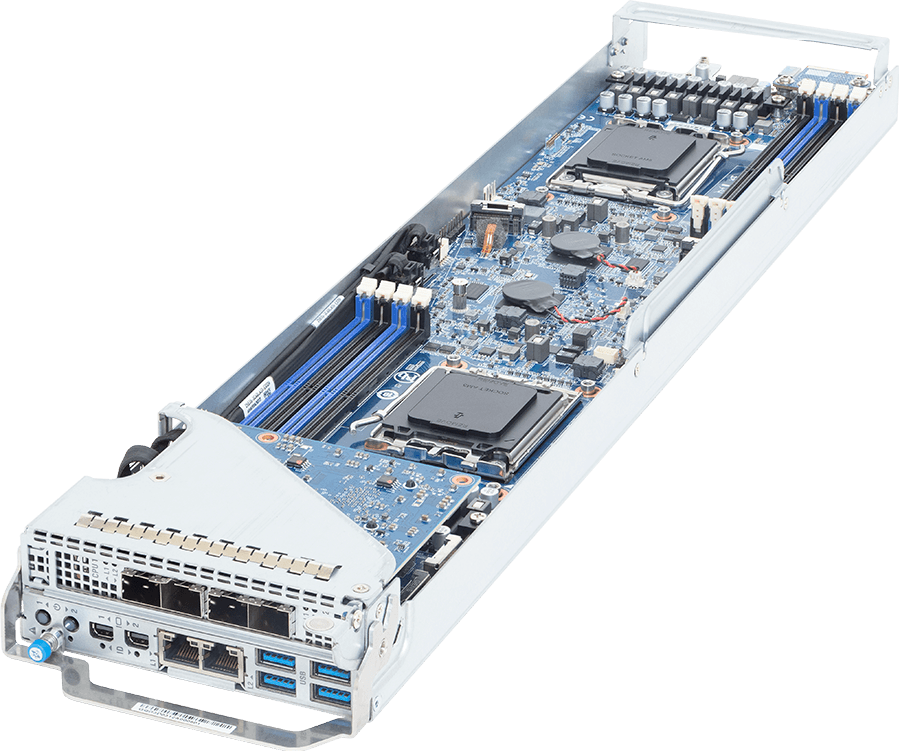

Per node (2 x nodes on a single blade):
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x Power button with LED
1 x ID LED
LAN board:
2 x SFP28 ports
2 x LAN activity LEDs

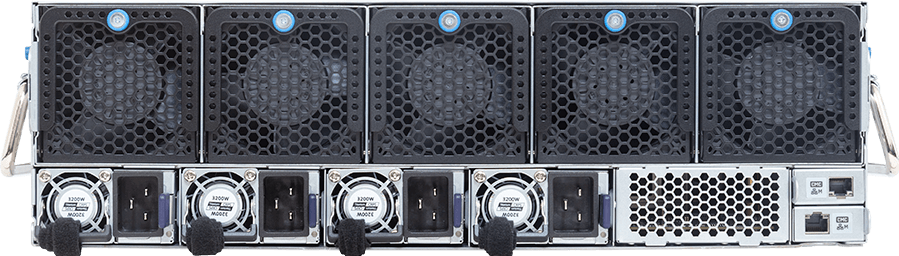

Rear I/O

MLAN board x 2:
2 x CMC ports

Security Modules

Onboard TPM 2.0

Power Supply^[#1]

4 x 3200 W 80 PLUS Titanium redundant power supplies^[1]

AC Input:
- 100-127V~, 16A, 50-60Hz
- 200-220V~, 16A, 50-60Hz
- 220-240V~, 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc, 16A

DC Output:
- Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A
- Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A
- Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

^[1]The system power supply requires C19 power cord.

System Fans

5 x 80x80x80mm

Operating Properties

Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

Weight

Net Weight: 75 kg
Gross Weight: 82 kg

Packaging Dimensions

1087 x 686 x 564 mm

Packaging Content

1 x B353-C60-AAS1
20 x CPU heatsinks
1 x Mini-DP to D-Sub cable
40 x M.2 heatsinks
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NB353C60MR000ACS1*
- Motherboard: 9MC63BL0NR-000*
- L-shape Rail kit: 25HB2-A96100-K0R

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.

[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
