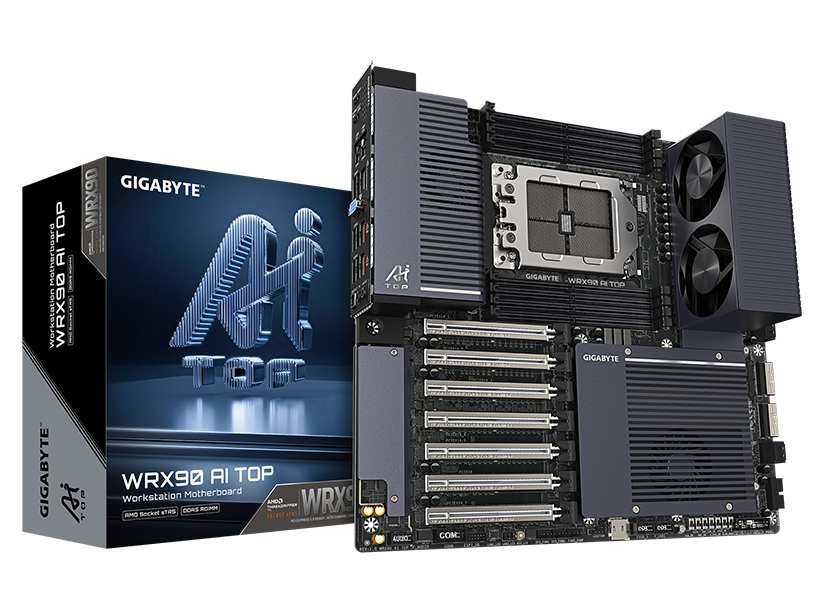

WRX90 AI TOP

Key FeaturesSpecificationsSupportGalleryWhere to Buy

Key Features

AI TOP

Scalability

CONNECTIVITY

POWER

COOLING

MEMORY

PCB

OVERCLOCK

ULTRA DURABLE

REMOTE MANAGEMENT

SOFTWARE

FEATURES
  • Ready for Advanced AI Computing : Engineered with the performance, scalability, and connectivity for demanding AI workloads
  • Socket sTR5 : Supports AMD Ryzen™ Threadripper™ PRO processors
  • Robust Power Design : 32+3+3+3-phase digital VRM solution
  • Ultimate Scalability : 7*PCIe 5.0 x16 slots, 2*MCIO 8i connectors, and up to 3x M.2 slots
  • 8 Channel DDR5 : Supports up to 2 TB of ECC R-DIMM (1DPC)
  • Next-Gen Connectivity : Dual USB4® Type-C ports
  • Ultra-Fast Networking : Dual server-grade 10GbE LAN plus dedicated IPMI LAN
  • Advanced Active Cooling : DDR Wind Blade XTREME Duo and SYS Wind Blade
  • Comprehensive Thermal Design : VRM Thermal Armor Advanced, M.2 Thermal Guard, and UD Backplate
  • Server-Grade Remote Management : Onboard BMC with IPMI support

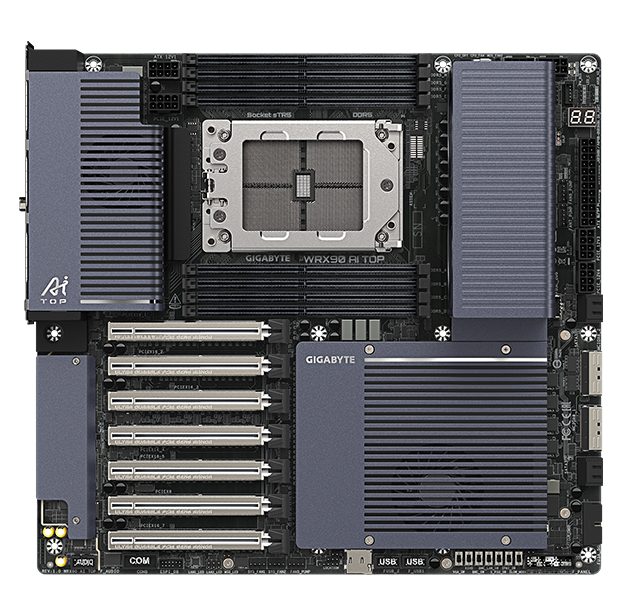

OVERVIEW
Performance
Thermal
Connectivity
Remote Management

  • 32+3+3+3 Twin Digital VRM Design

    • 110A Smart Power Stage
    • 14-Layer PCB
    • Server level Very Low Loss PCB
    • 2X Copper PCB
    • Premium Choke and Capacitor

  • Support AMD Ryzen™ Threadripper™ PRO processors

  • UD Power Connector

    • 24 pin ATX Power Connector
    • 8+8 pin CPU with UD Solid Pin

  • 8 x DDR5 8-Channel ECC R-DIMMs

  • 3 x PCIe 5.0 / 4.0 M.2 Slots

  • Full-length PCIe slots

    • PCIe 5.0 x16 (run x8, x16) with PCIe UD Slot X

    • VRM Thermal Armor Advanced

      • 7 W/mk Thermal Pad
      • Integrated IO Shield

    • DDR Wind Blade XTREME Duo

    • M.2 Thermal Guard Ext.

    • UD Backplate

    • SYS Wind Blade

      • Rear EZ Button

        • Reset Button
        • Power Button
        • Q-flash Plus button
        • Clear CMOS button

      • 2 x USB 4 Type-C

      • 2 x DisplayPort In port

      • 6 x USB 3.2 Gen 2

      • Dual Server-Grade
        10 GbE LAN

      • 2 x SATA 6Gb/s

      • Front USB-C 20Gb/s

      • 2 x MCIO 8i Connectors

      • 2 x SATA 6Gb/s

        • Dedicated IPMI LAN

        • VGA for Dedicated BMC

        • ASPEED AST2600 BMC

        • MicroSD Card Slot

        • BMC Related Switches

          GIGABYTE AI TOP

          Train your own AI on your desk.

          Ultimate scalability and Connectivity

          Brings you the future-proofing capability.

          Infinite Memory Performance

          D5 Bionic Corsa Technology.

          Steady Power

          Keeps your computing smooth.

          Comprehensive Thermal

          Keep your system cool and efficient.

          Tailored Computing

          More superb, user-friendly, customized BIOS & software.

          Born from Ultra Durable™

          Built for longevity and reliability.

          GIGABYTE AI TOP
          Create Your Own AI on Your Desk

          As part of the GIGABYTE AI TOP ecosystem, WRX90 AI TOP provides a powerful and reliable foundation for building your own local AI system. Its exceptional scalability, robust power delivery, advanced cooling, and high-speed connectivity are engineered to support demanding AI development and continuous workloads.

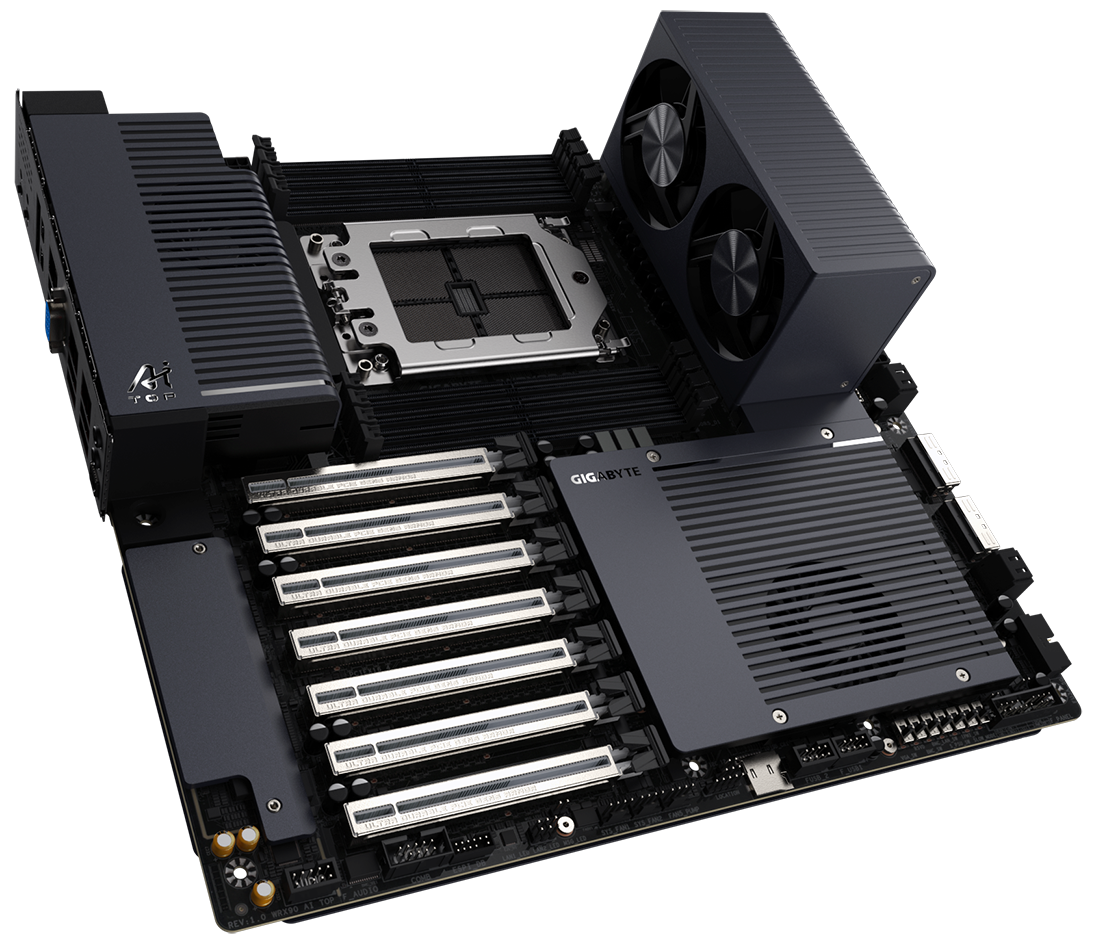

          Scalability
          Expand Without Limits

          WRX90 AI TOP is built for workloads that demand serious computing scale, providing the flexibility to configure a system for multi-GPU AI, rendering, simulation, data science, and other compute-intensive applications.

          7x PCIe 5.0 x16 Slots
          2x MCIO 8i Connectors
          Up to 3x M.2 Slots

          More Scalability info.

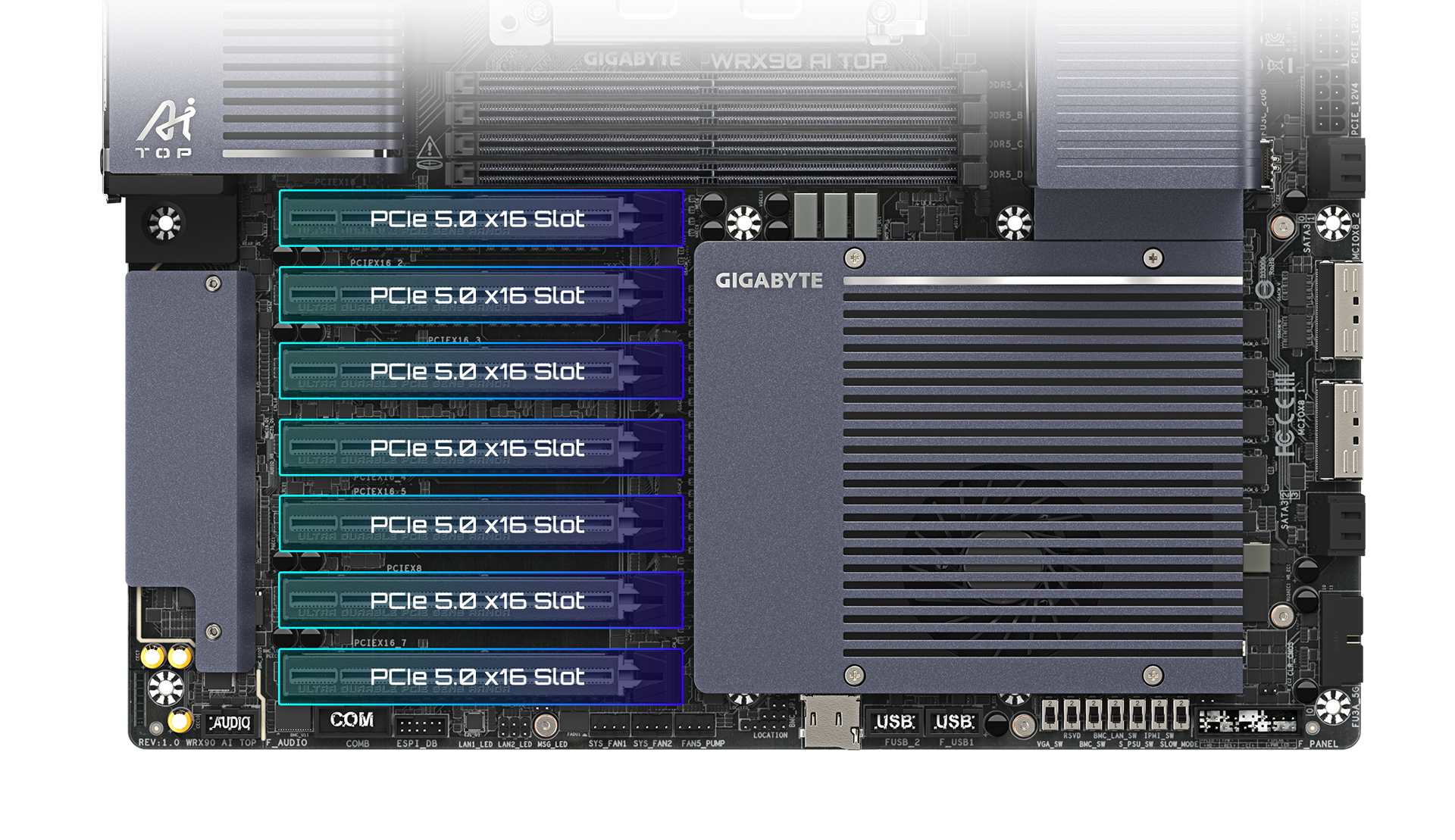

          7x PCIe 5.0 x16 Slots

          Deploy multiple GPUs and high-bandwidth accelerator cards to scale performance for demanding AI and professional workloads.

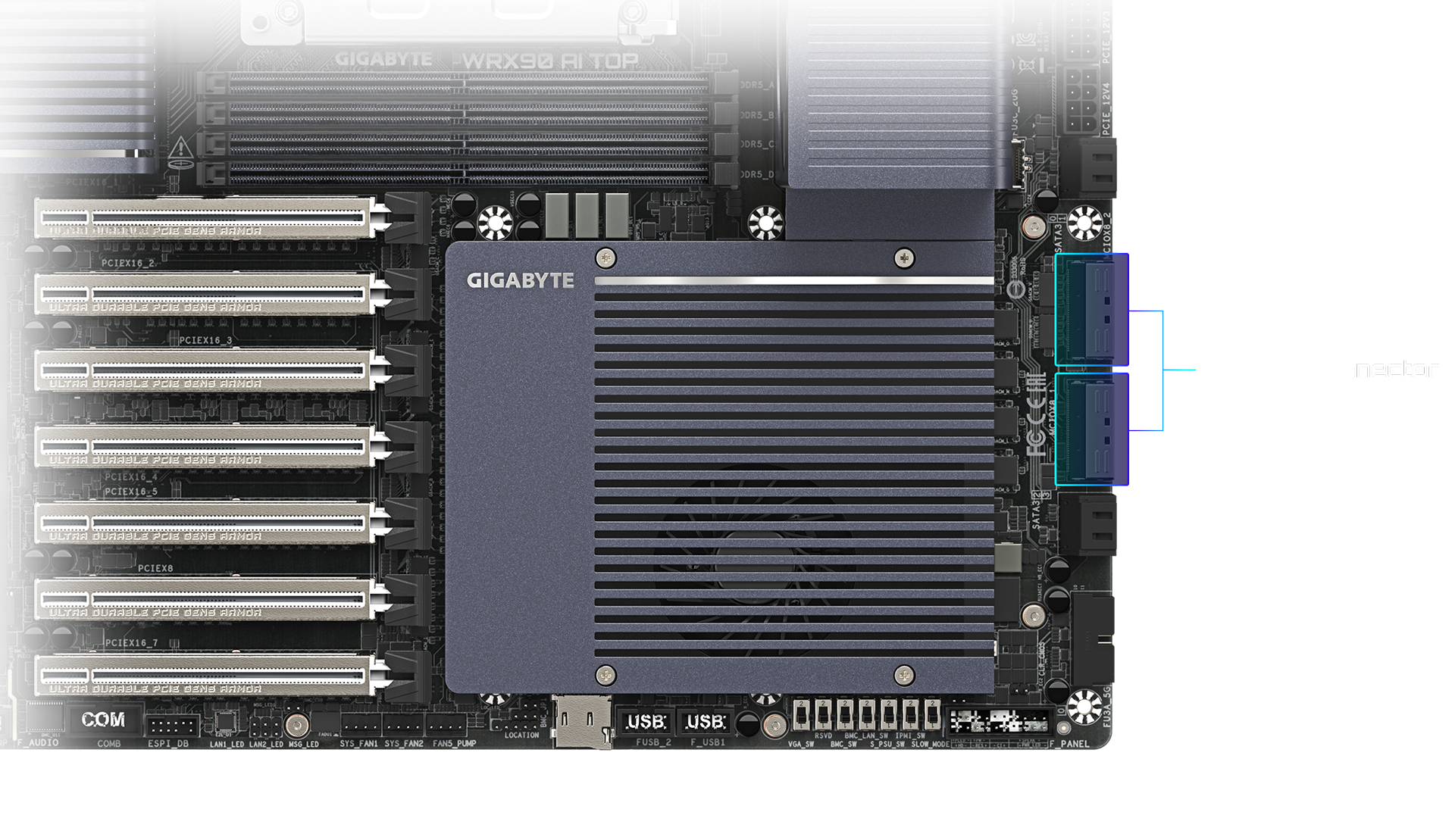

          2x MCIO 8i Connectors

          Expand beyond the motherboard with high-bandwidth connections for additional storage, accelerators, or other PCIe devices as you wish.

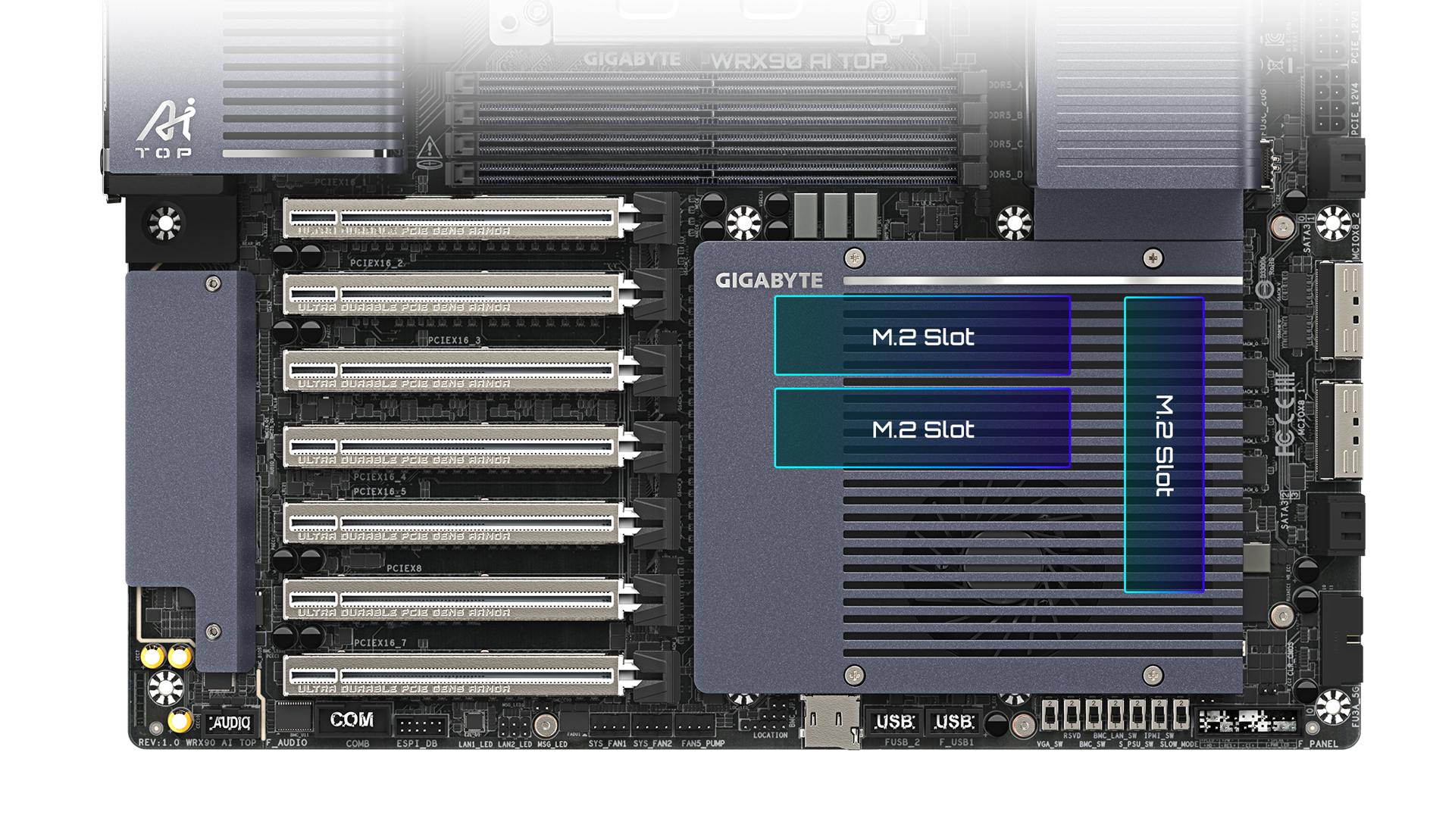

          Up to 3x M.2 Slots

          Access high-speed storage for operating systems, AI models, datasets, and frequently used project files.

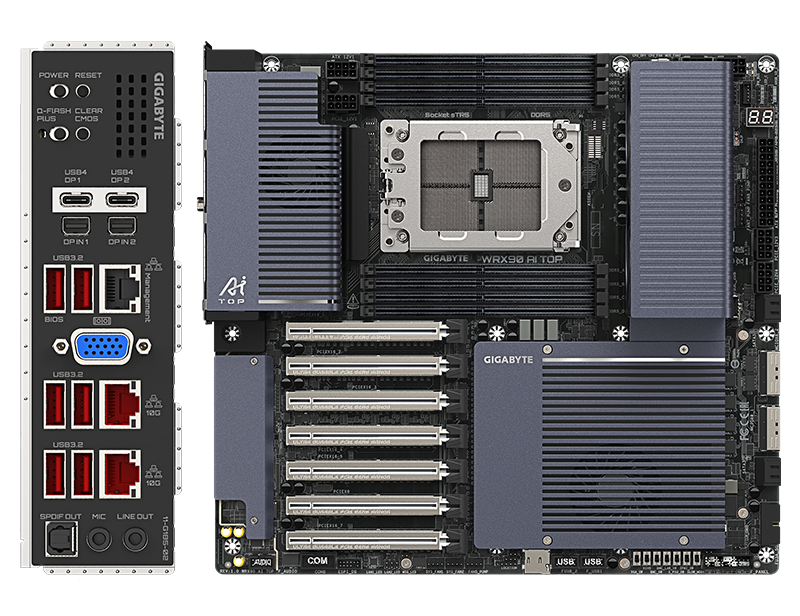

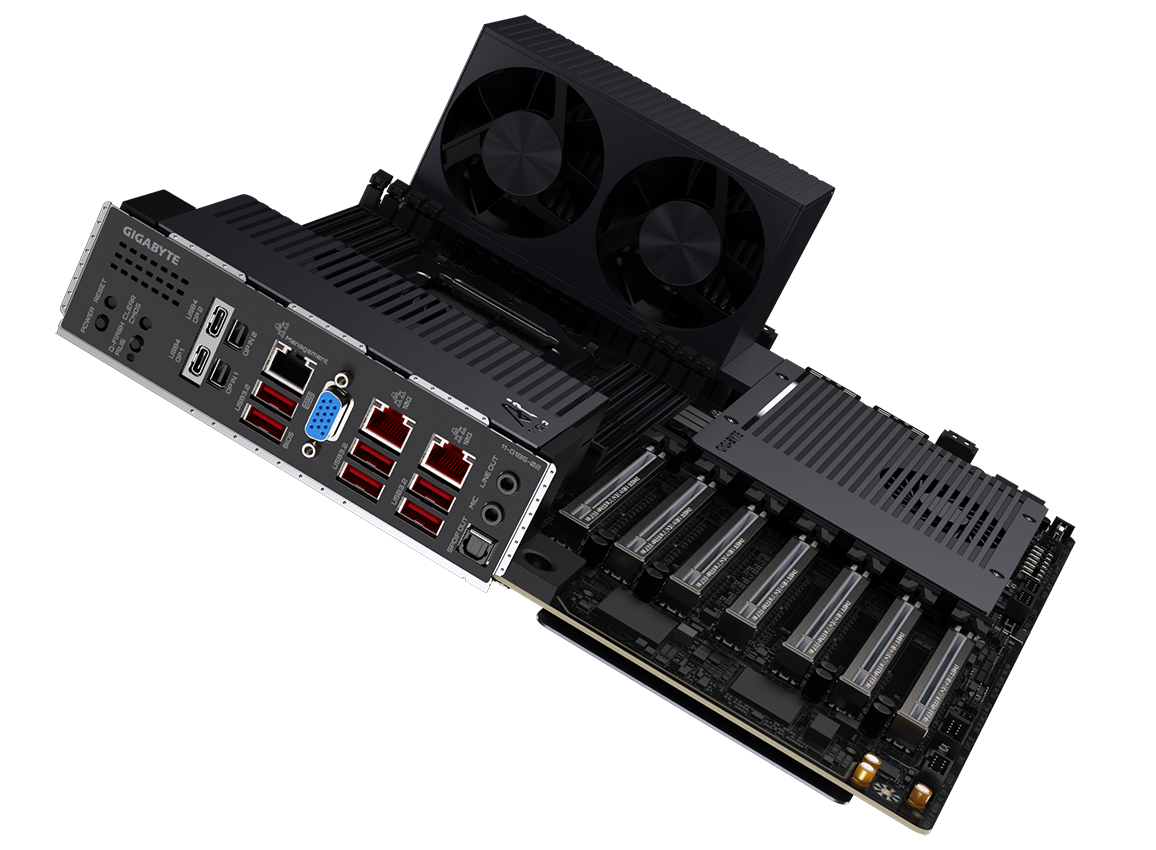

          Connectivity
          High-Speed Connections for Complex Workflows

          WRX90 AI TOP provides the high-bandwidth networking and I/O required to move large datasets, connect professional devices, and integrate the system into advanced AI and production environments.

          Dual Server-Grade 10GbE LAN
          Dedicated IPMI LAN
          Dual USB4® Type-C

          More Connectivity info.

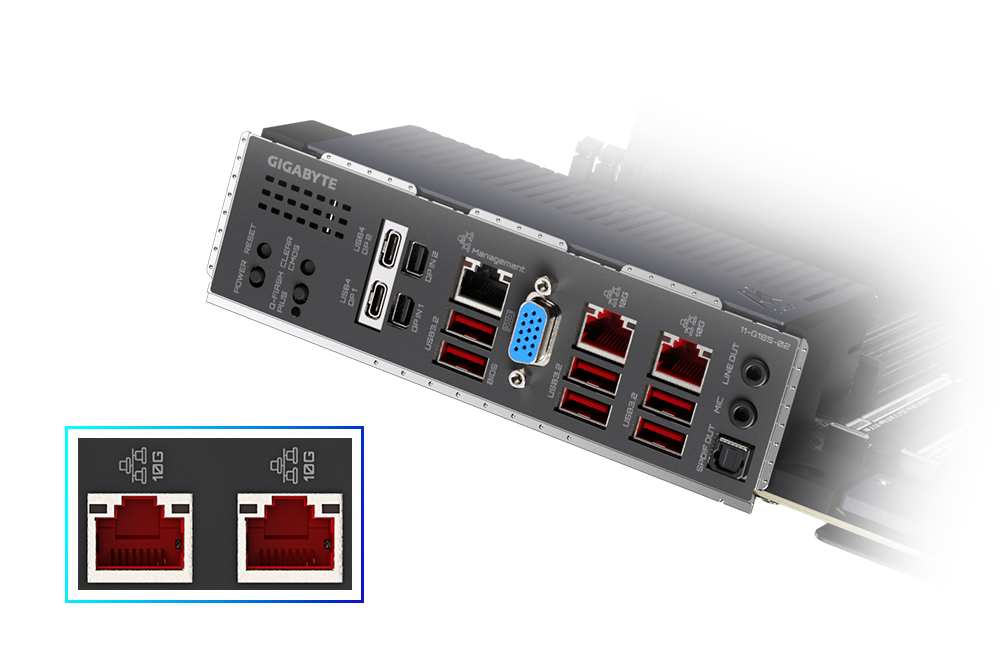

          Dual Server-Grade 10GbE LAN

          Accelerate dataset transfers, access network storage, and support bandwidth-intensive collaborative workflows with fast and stable wired networking.

          Dedicated IPMI LAN

          Keep remote system-management traffic separate from primary network workloads for more efficient administration.

          Dual USB4® Type-C

          Transfer large files, connect high-resolution displays, and expand your workspace through versatile high-speed Type-C connectivity.

          Power
          Robust Power

          The premium digital VRM delivers precise and stable power to the processor and critical components, helping maintain consistent performance during demanding, sustained AI workloads.

          Digital VRM Design

          Delivers stable, responsive power across the processor, memory, and key system components.

          32
          VCORE Phases

          Stable power for sustained multi-core performance.

          *8+8 phases parallel power design

          3
          SoC Phases

          Reliable power for memory, data fabric, and integrated I/O.

          3
          VDDIO Phases

          Supports stable, high-bandwidth memory operation.

          3
          MISC Phases

          Powers auxiliary CPU functions for greater system stability.

          Cooling
          Comprehensive Thermal

          Advanced cooling is essential when powerful processors, multiple GPUs, and high-capacity memory operate together for extended periods. WRX90 AI TOP combines active cooling with full-board thermal reinforcement to help maintain reliable performance under sustained workloads.

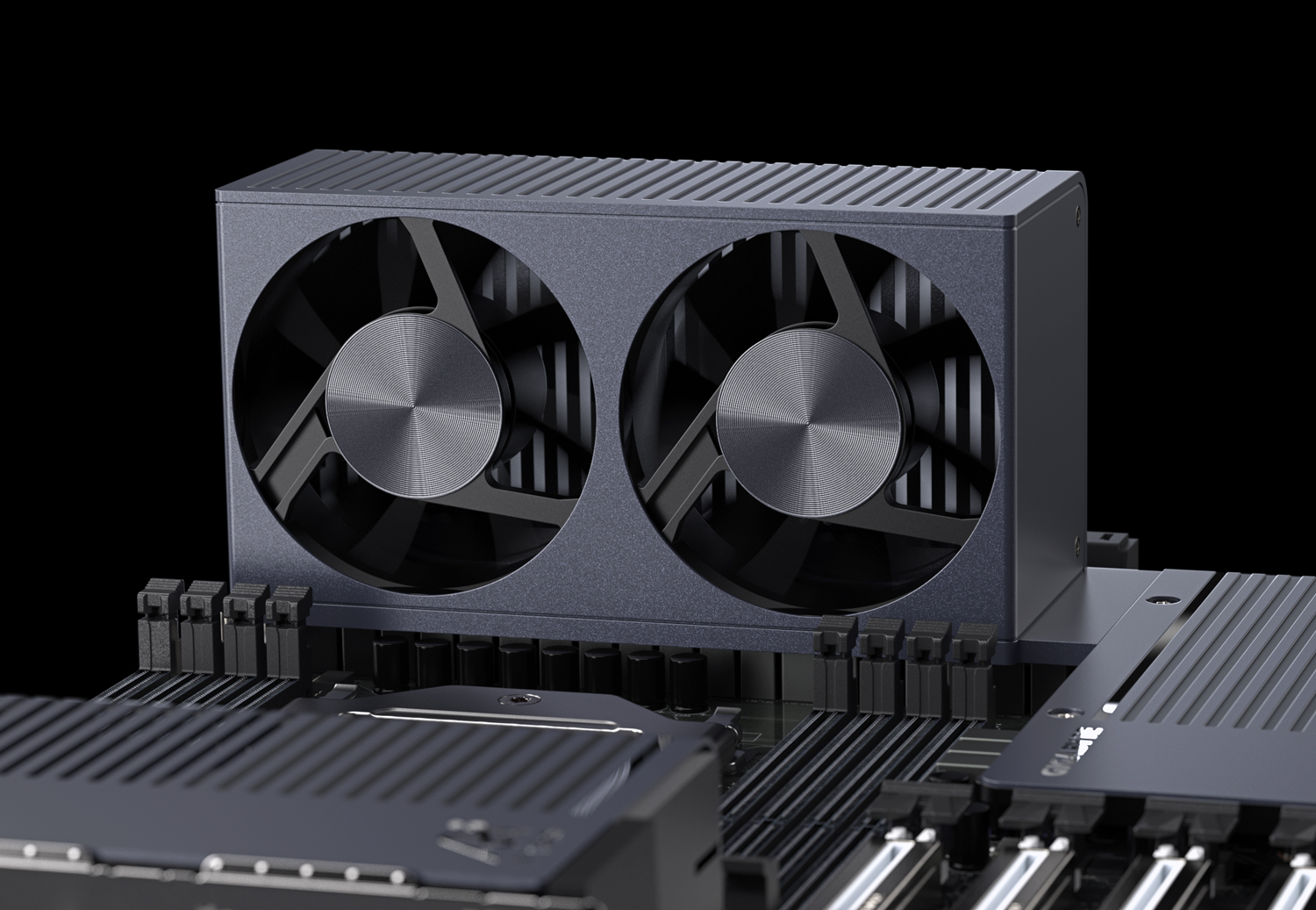

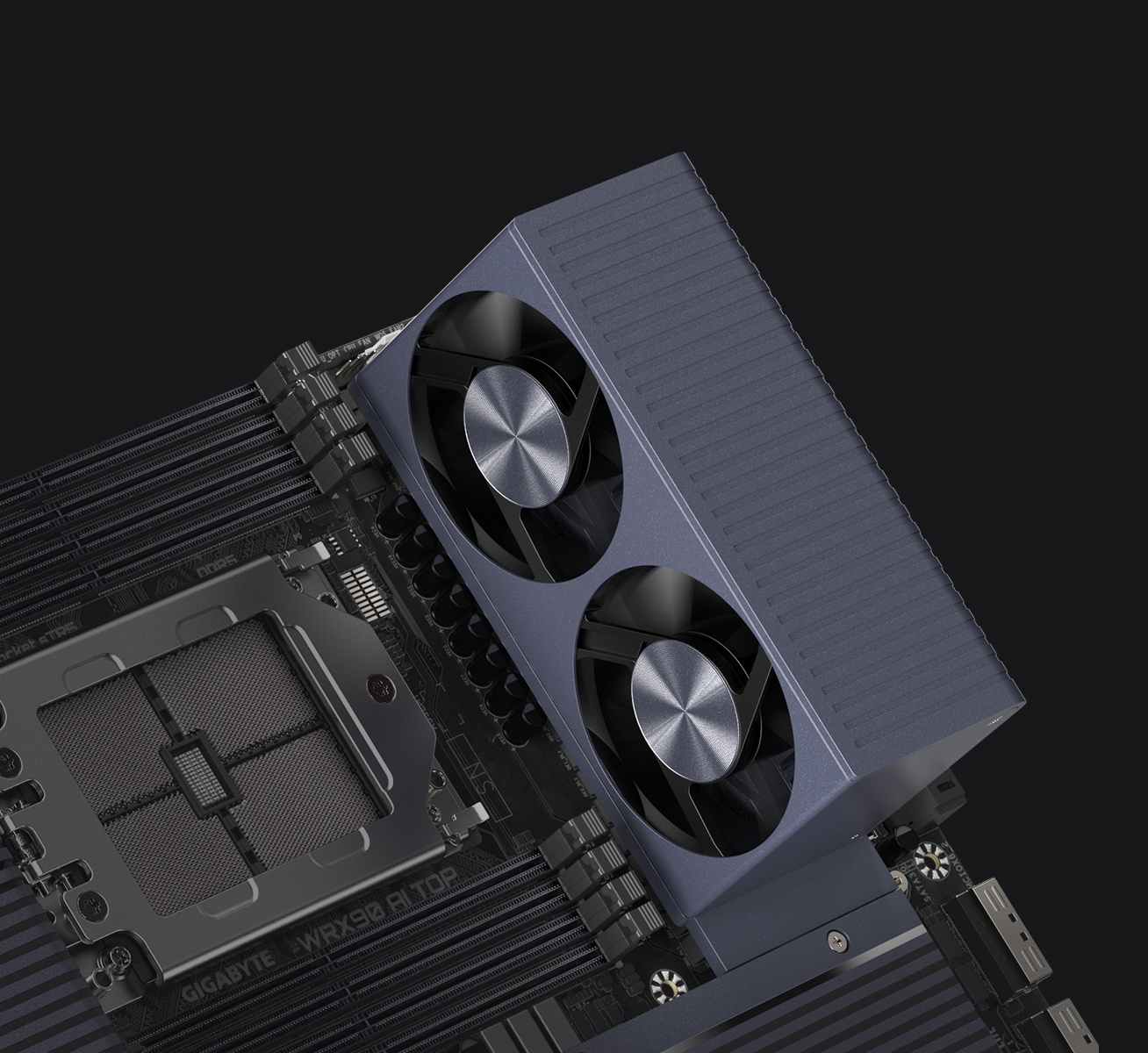

          DDR Wind Blade XTREME Duo
          DDR Wind Blade XTREME Duo

          A large dual-fan cooling module positioned beside the DIMM slots drives powerful airflow across the memory modules, reducing temperatures by up to 43°C for greater stability at high capacities and memory speeds.

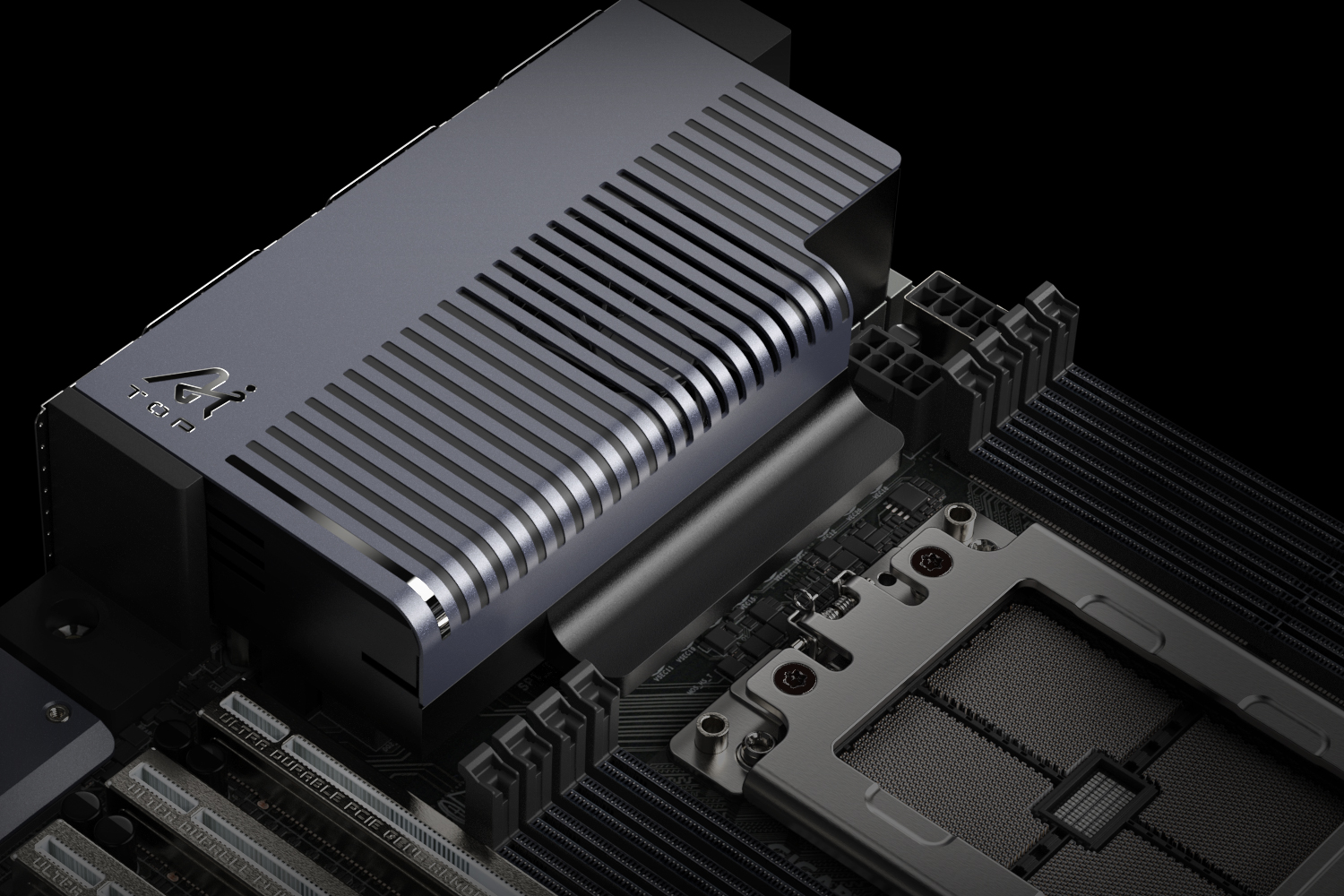

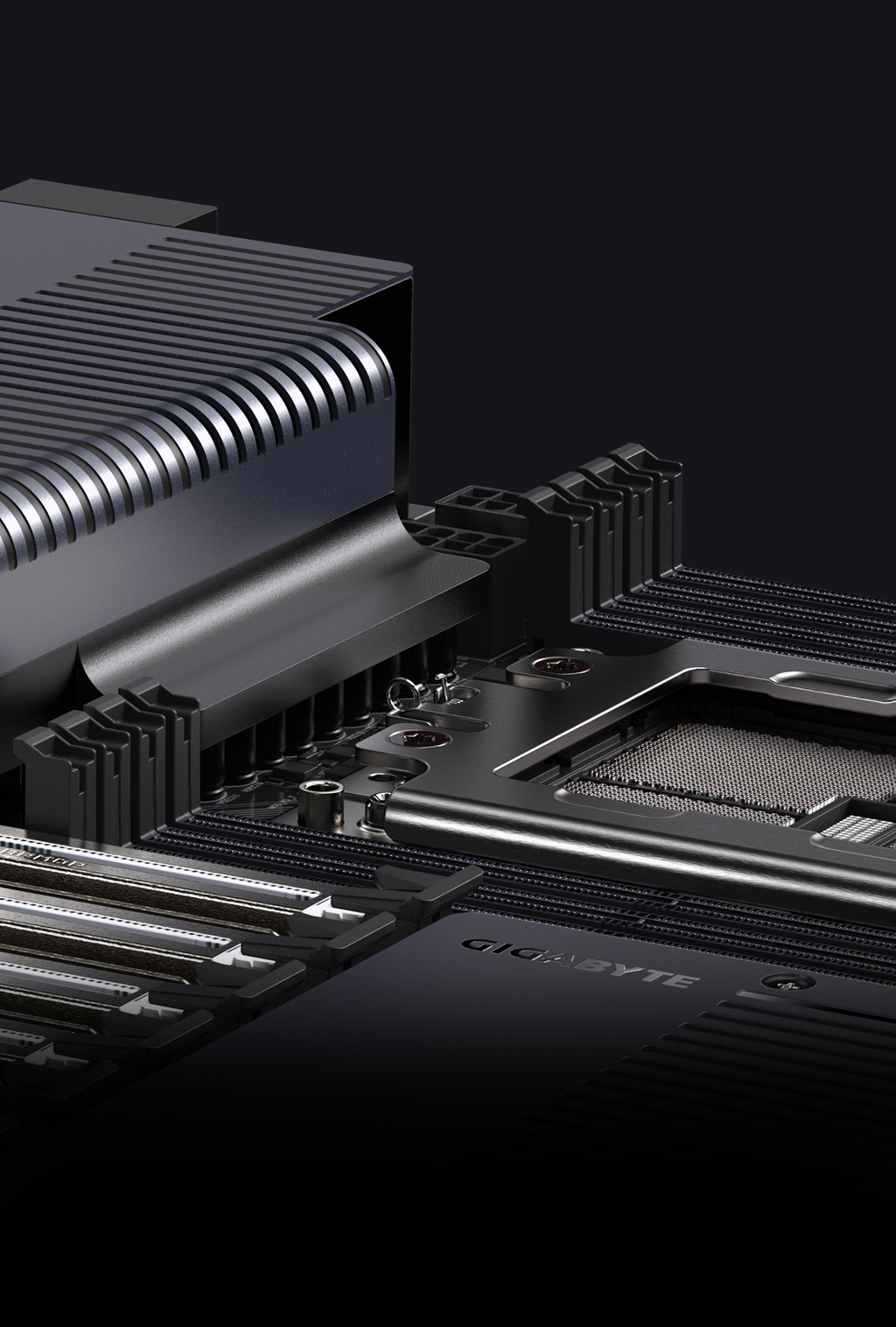

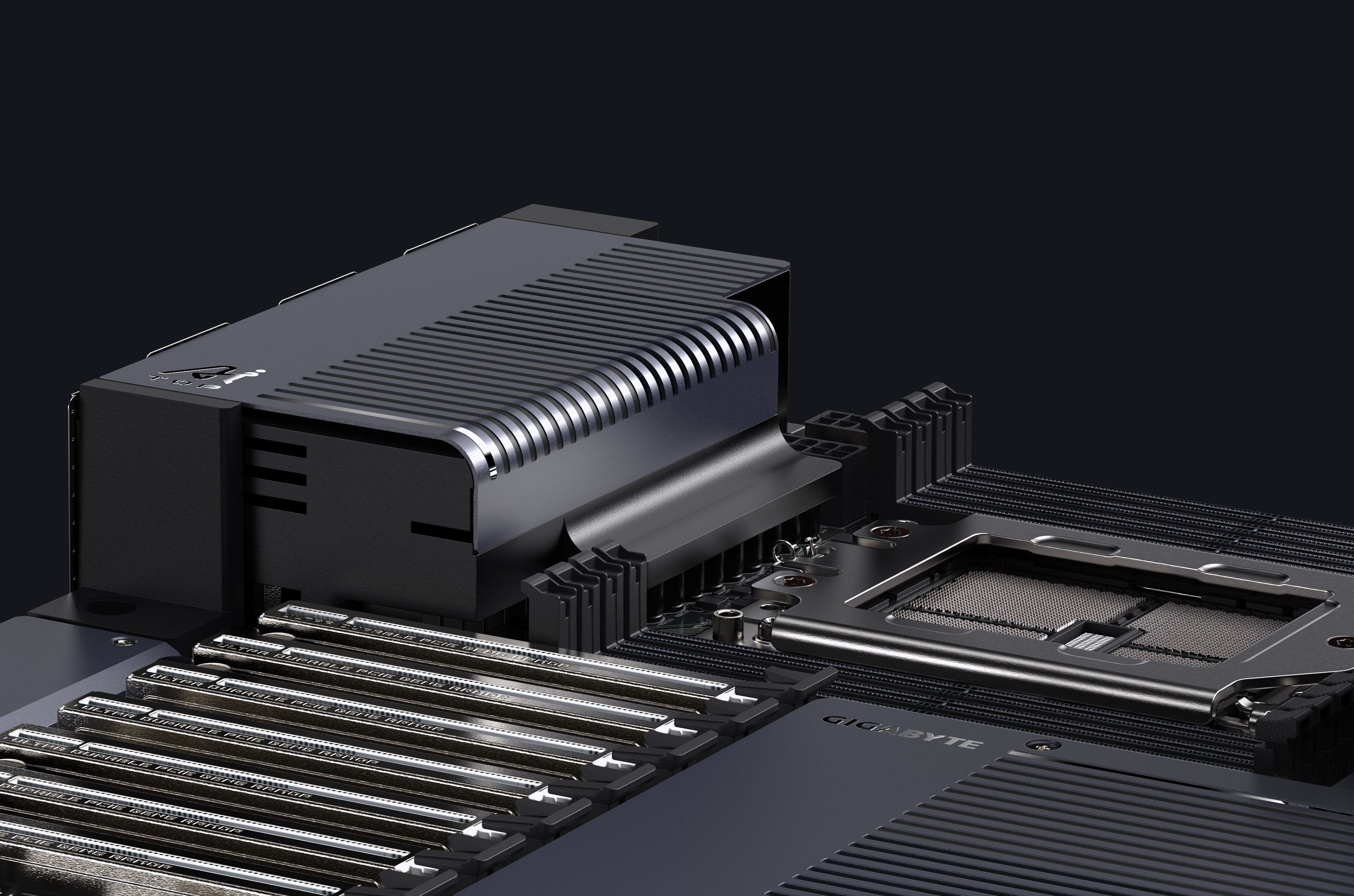

          VRM Thermal Armor Advanced
          7W/mK Thermal Pad
          VRM Thermal Armor Advanced

          Extensive heatsinks and a high-conductivity 7 W/mK thermal pad efficiently draw heat away from the power-delivery components, keeping VRM temperatures in check for stable processor performance.

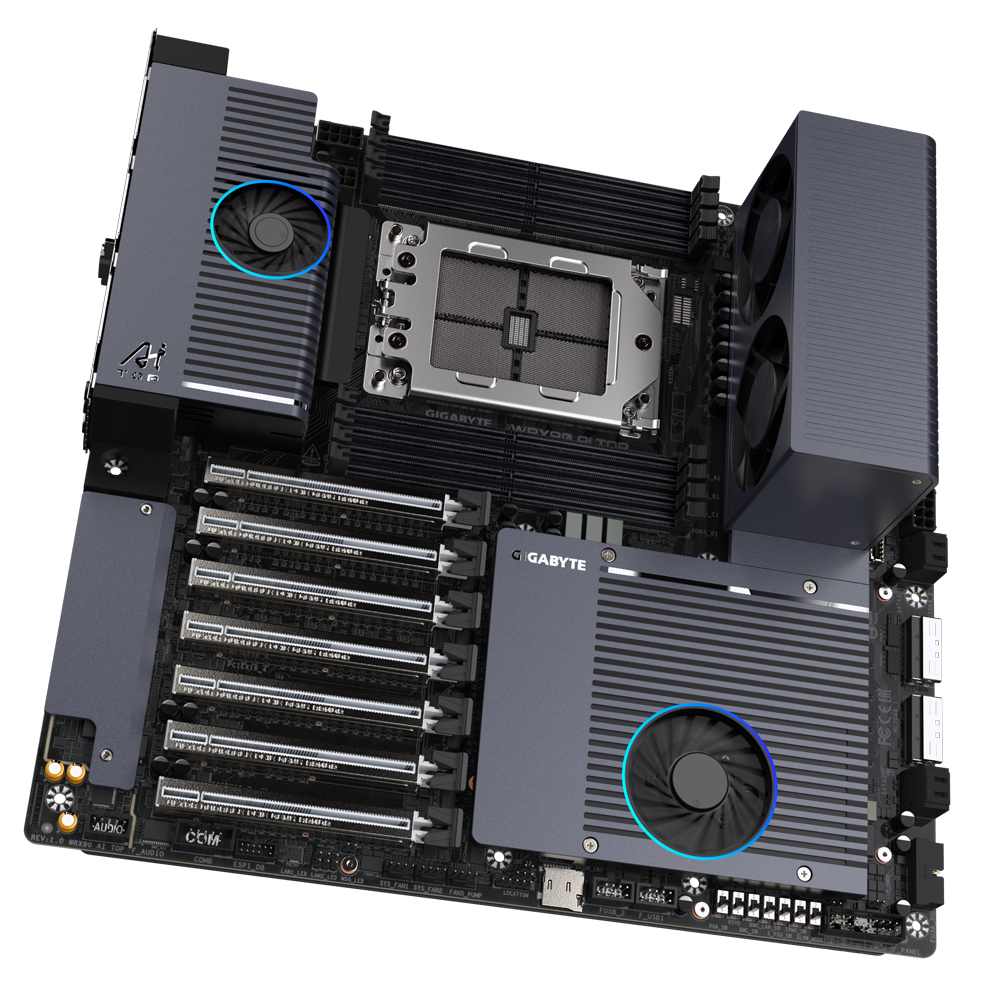

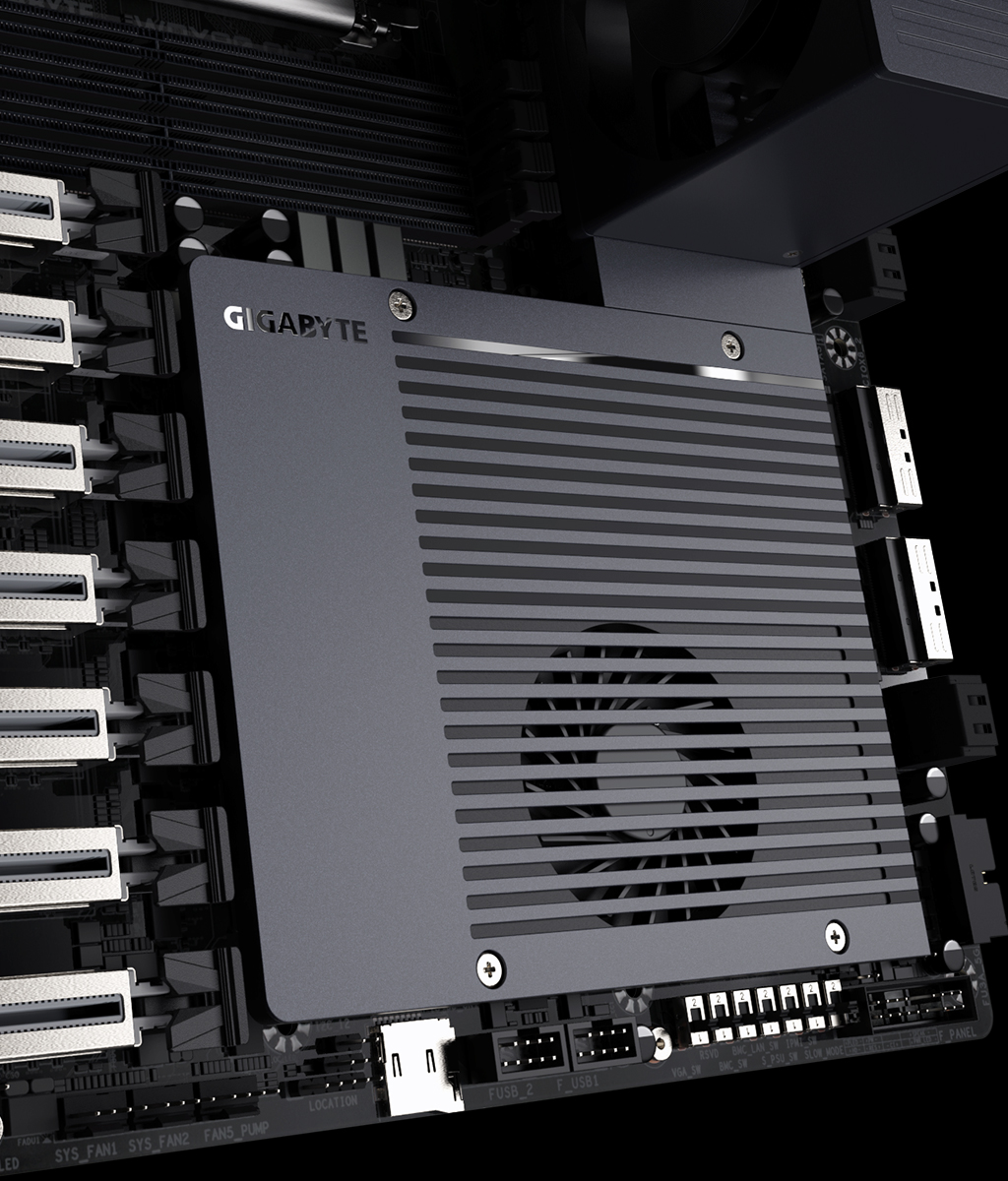

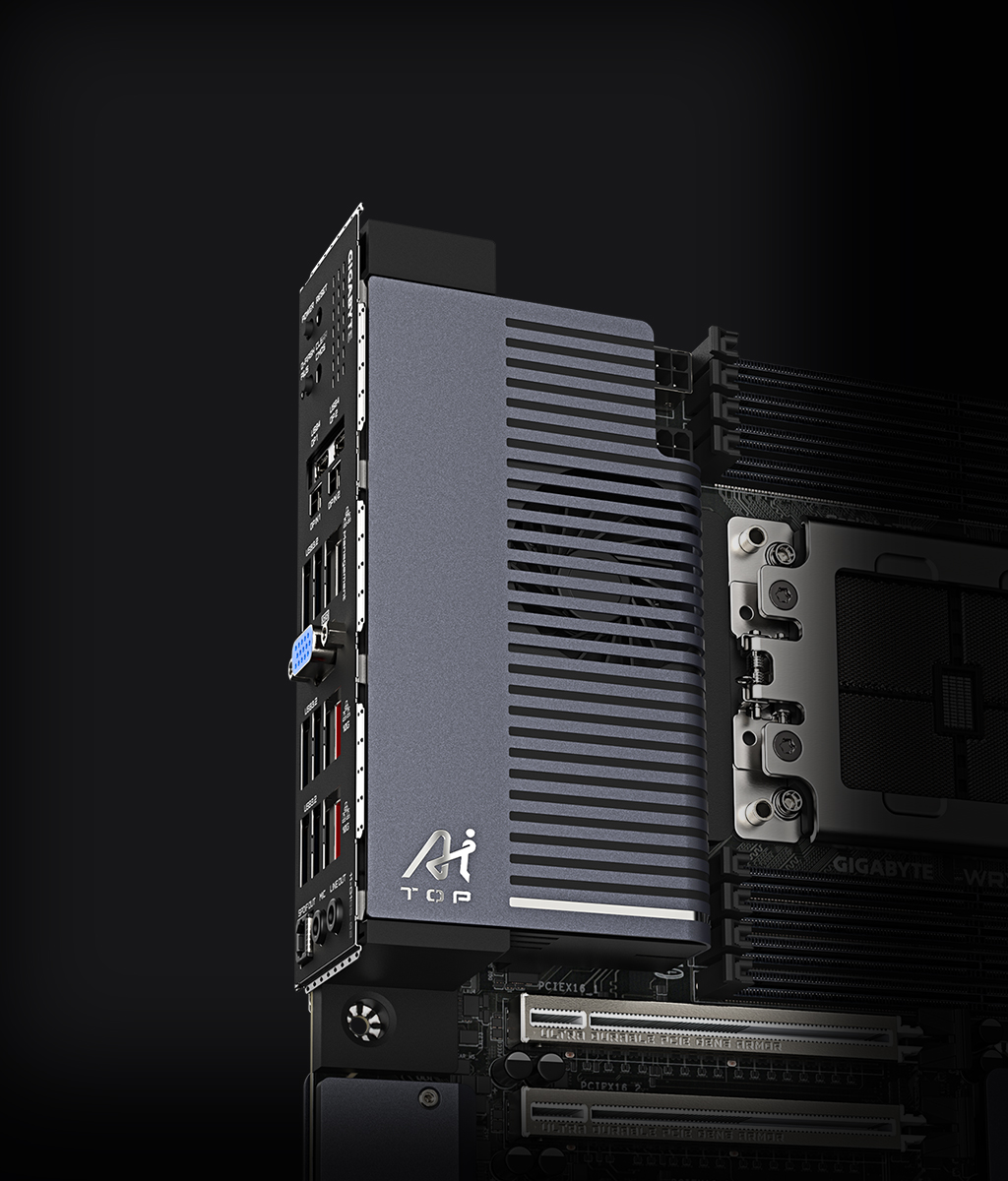

          SYS Wind Blade
          SYS Wind Blade

          Equipped with cooling fans for enhanced heat dissipation across the VRM heatsinks and PCH, helping critical components maintain stable operation under sustained heavy workloads.

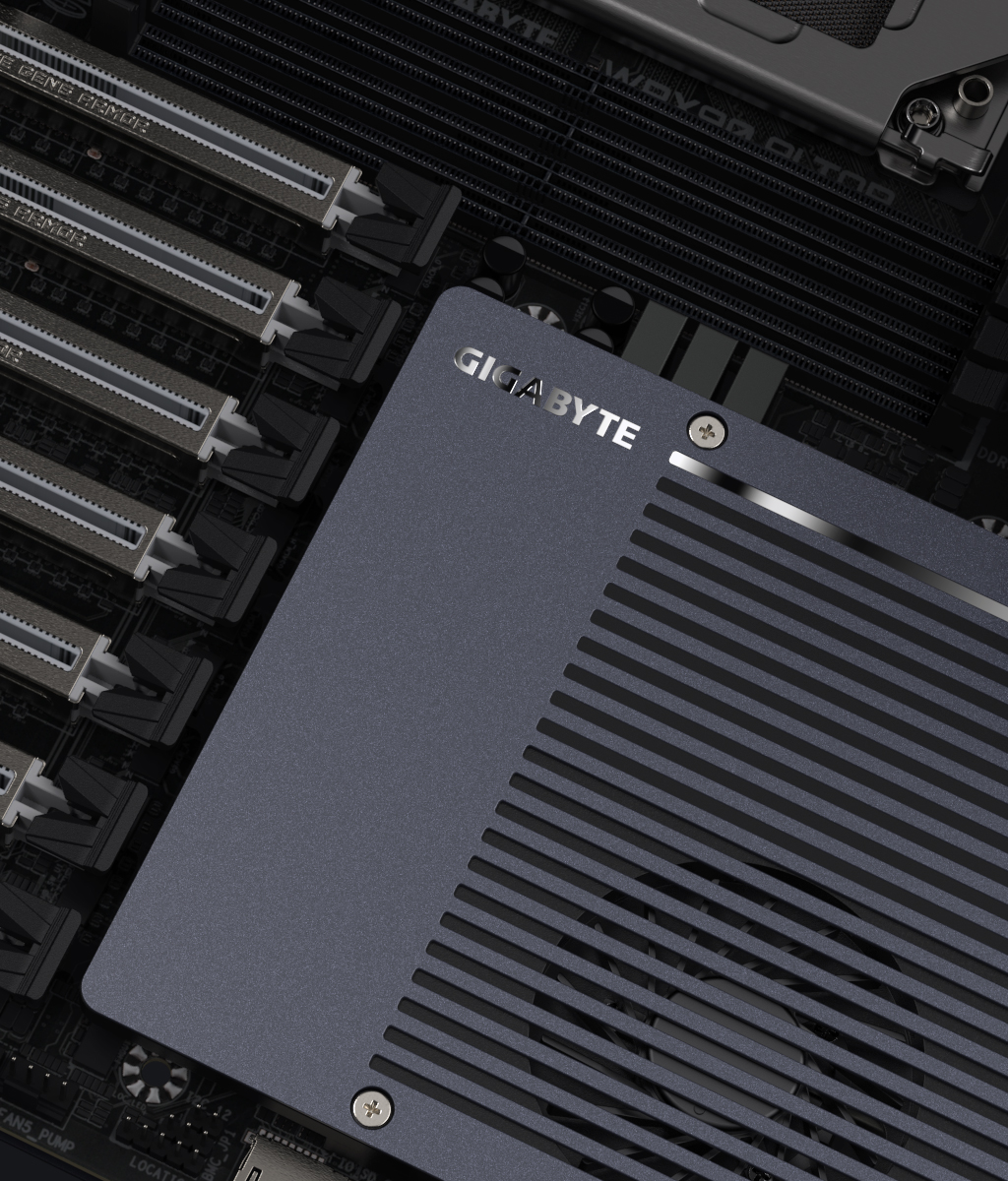

          M.2 Thermal Guard
          UD Backplate

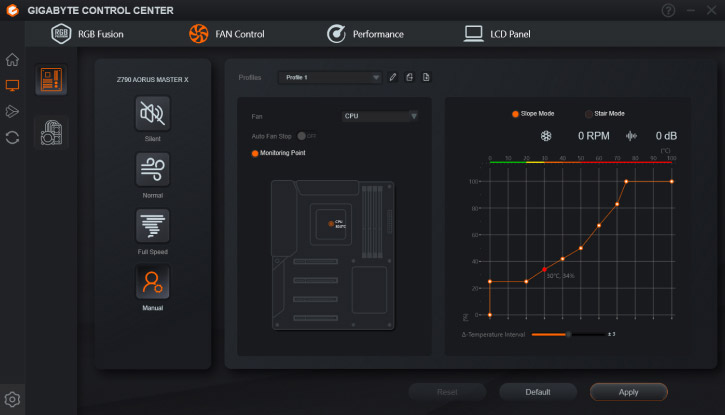

          Smart Fan 6

          Cool. Quiet. Customized.

          Smart Fan 6

          Superior cooling performance and whisper-quiet operation for your gaming rig.

          High Current Support
          • Supports both PWM and DC fans, plus water cooling pumps
          • Up to 24W (12V x 2A) capacity per fan header
          • Built-in over-current protection
          Precision Control
          • Multiple temperature and fan speed points
          • Customizable fan curves for optimal performance
          Dual Curve Mode
          • Choose between slope and stair modes
          • Tailor cooling to your specific needs and preferences
          Fan Stop Technology
          • Fans can be completely turned off at low temperatures
          • Ensures silent operation during light loads

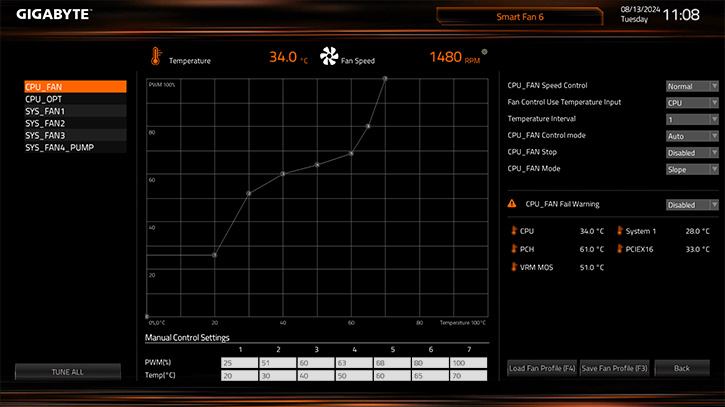

          Smart Fan 6 BIOS UI

          Note: Images are for illustrative purposes and may differ based on your model.

          Enhance Fan Curve UI
          • 7 adjustable control points
          • Expanded speed graph for precise adjustments
          Slope/Stair Dual Graph Mode
          • Slope mode: Smooth fan speed curve
          • Stair mode: Steady speeds within temperature ranges
          • Easy switching between modes
          Manual Input
          • Fine-tune fan speeds for optimal performance
          • Precise control for enthusiasts
          EZ Tuning
          • Quick setup with 4 temperature and fan speed points
          • Automatic optimization of fan curve
          Fan Curve Profile
          • Save personalized settings to BIOS ROM
          • Maintain custom settings through BIOS updates

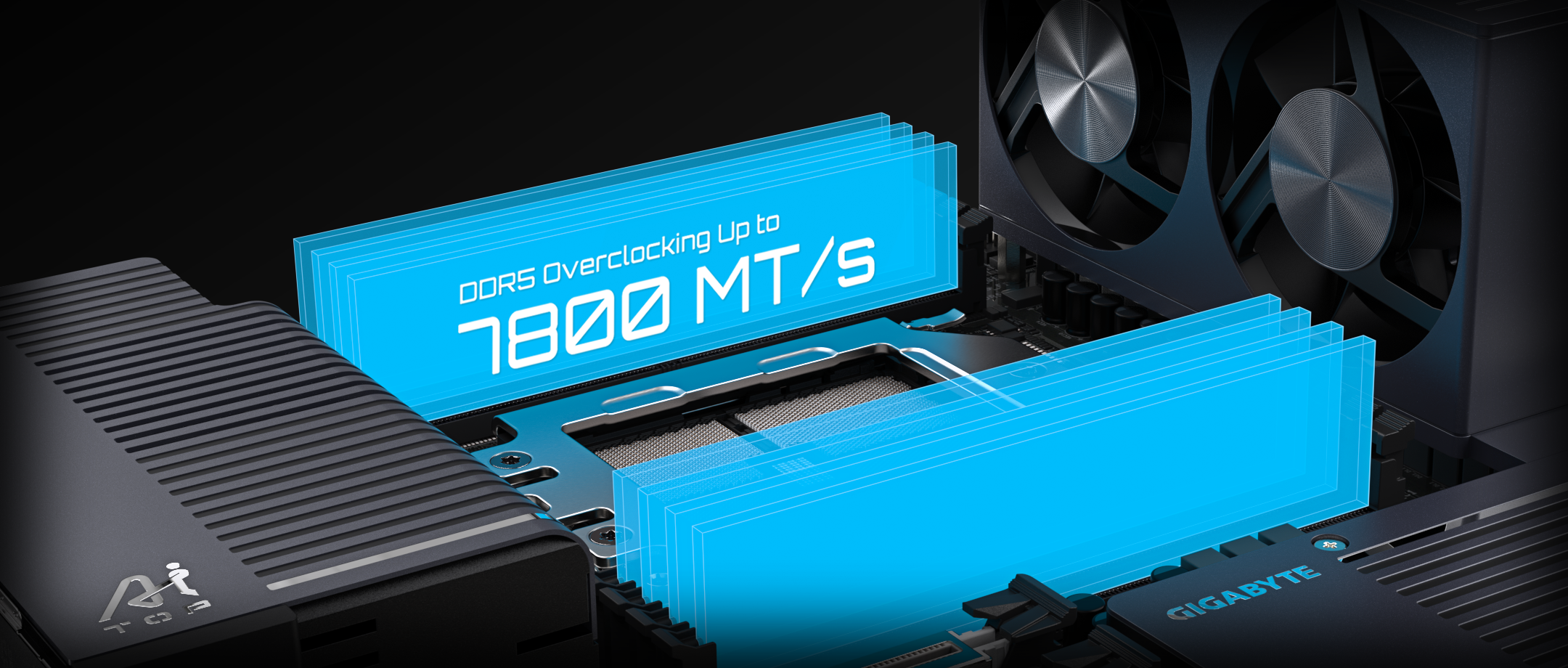

          Memory
          High-Capacity ECC Memory

          Tackle complex AI models, simulations, and heavy multitasking with support for up to 2 TB of 1DPC ECC R-DIMM memory. Full ECC support guards against memory corruption and system crashes, ensuring maximum uptime for critical professional applications.

          PCB Mastery
          Server-Grade Foundation

          Serving as the core of the motherboard, the PCB plays a critical role in overall system stability and performance.

          14-Layer Server-Grade PCB

          Optimizes signal integrity and EMI shielding while enhancing structural and electrical reliability for heavy computing workloads.

          Ultra-Low-Loss PCB Material

          Elevates signal purity and circuit stability in high-frequency operations, setting a new benchmark for high-speed electronic design.

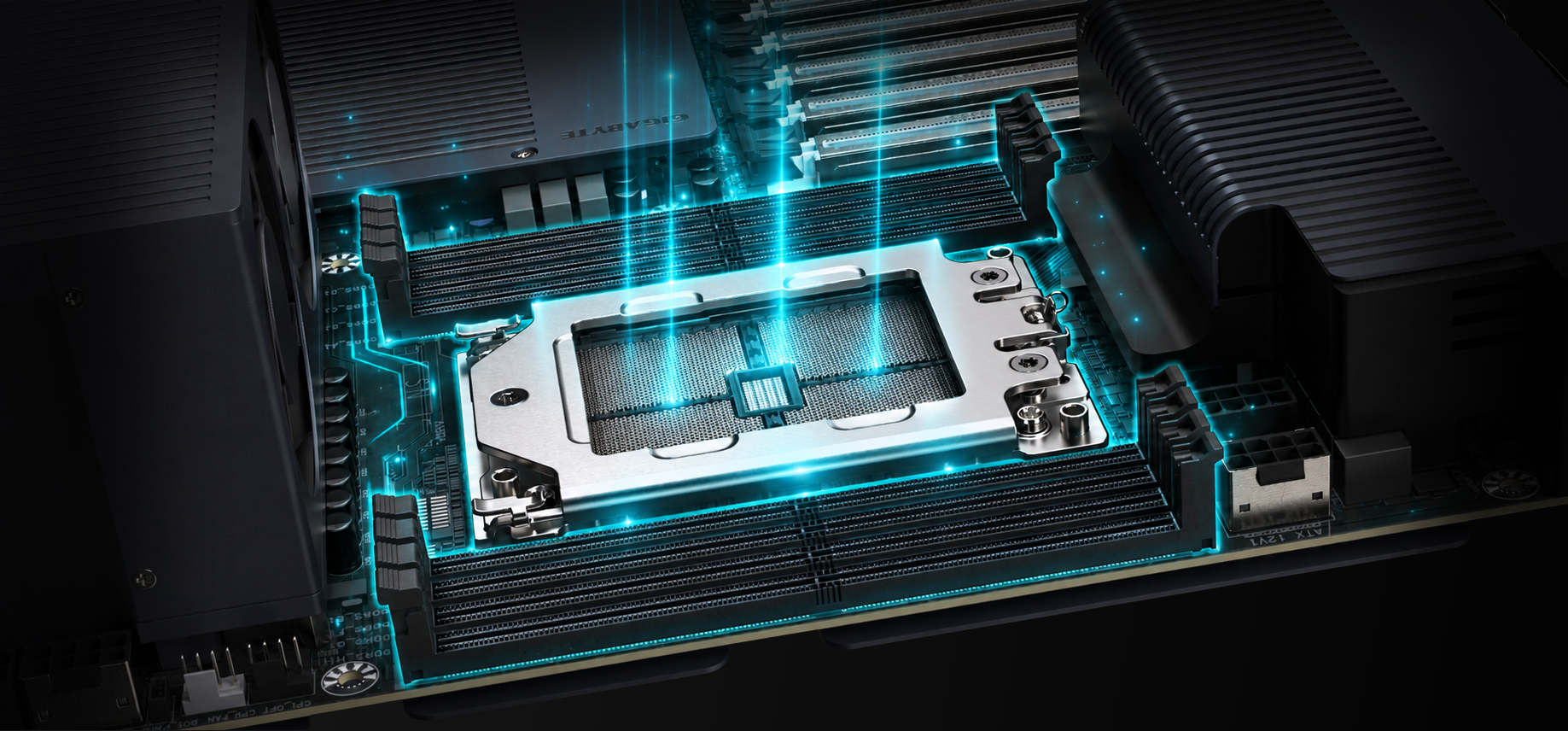

          Overclock
          Built for Extremes, Engineered for Stability

          Built with a server-grade 14-layer PCB, heavy-duty cooling, and a dual-PSU design, WRX90 AI TOP provides exceptional signal integrity and massive headroom for CPU overclocking and EXPO ECC memory tuning. This top build quality ensures maximum performance alongside rock-solid workstation stability.

          Ultra Durable™
          Built with Ultra Durable™ DNA

          Embodied by our commitment to excellence, Ultra Durable™ technology ensures a platform built for maximum performance, long-term stability, and relentless reliability. AI TOP series motherboards are engineered to endure and excel.

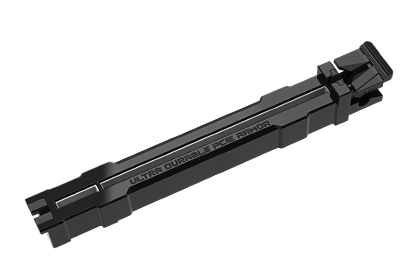

          PCIe UD Slot X

          The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

          10X load-bearing capacity
          Integrated, single-piece design anchored to a exclusive backplate
          Inner Lining Rubber Strip
          Safeguards your graphics card's PCB against potential damage
          Zinc Alloy
          Provides effective EMI shielding for high-frequency signals

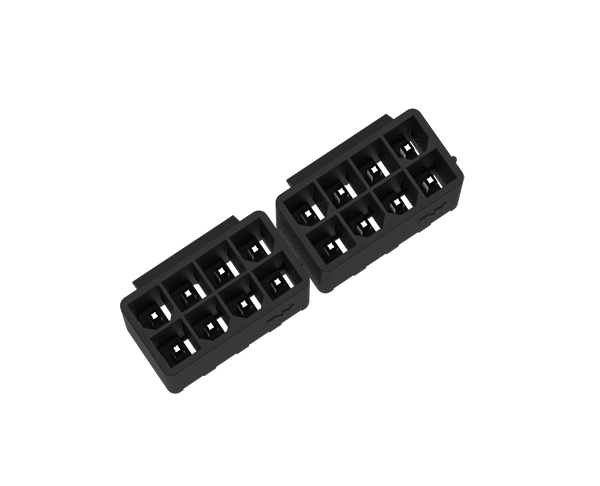

          UD Power Connector

          Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

          Solid Pins
          Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.

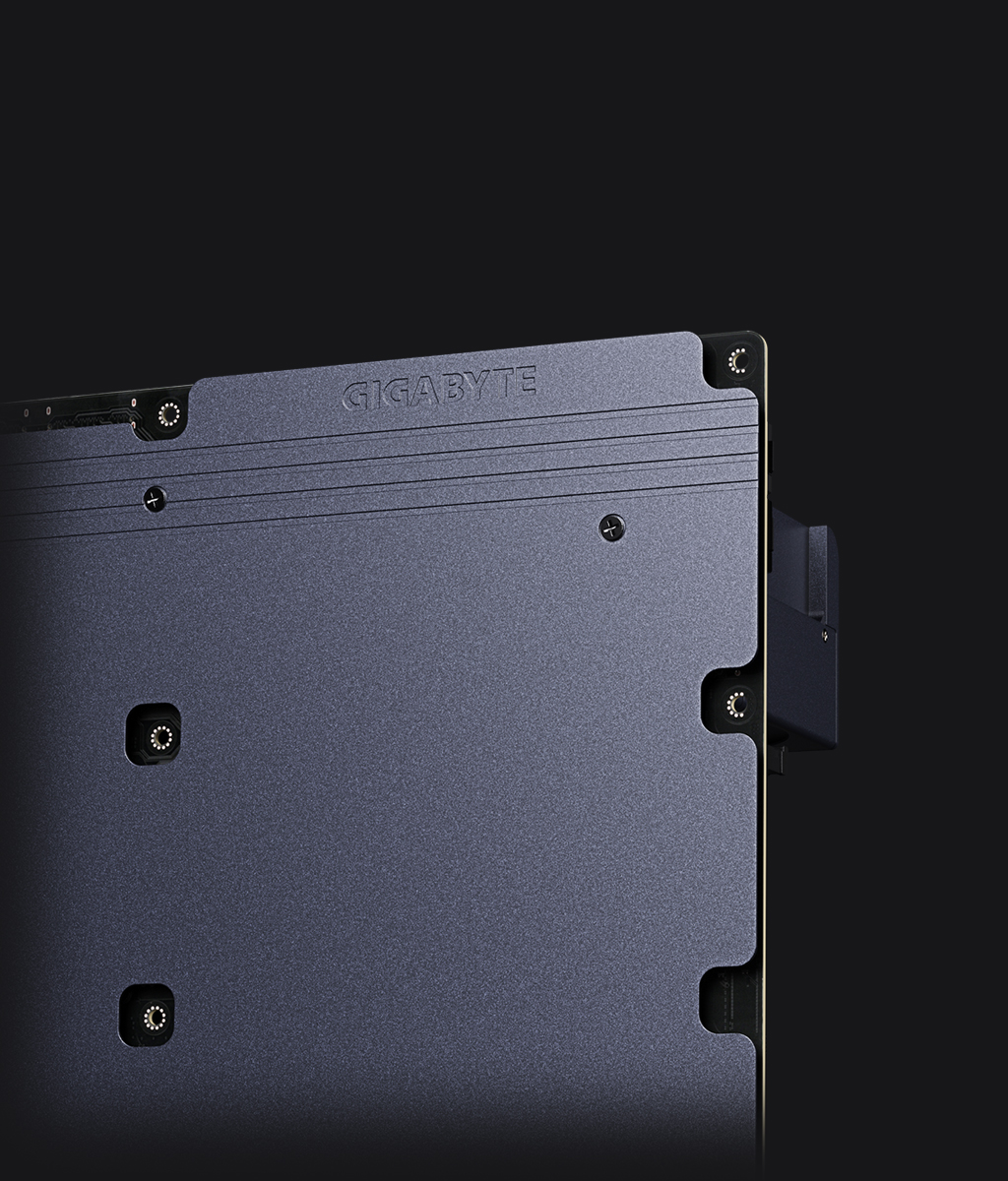

          UD Backplate

          Adds structural support and heat dissipation

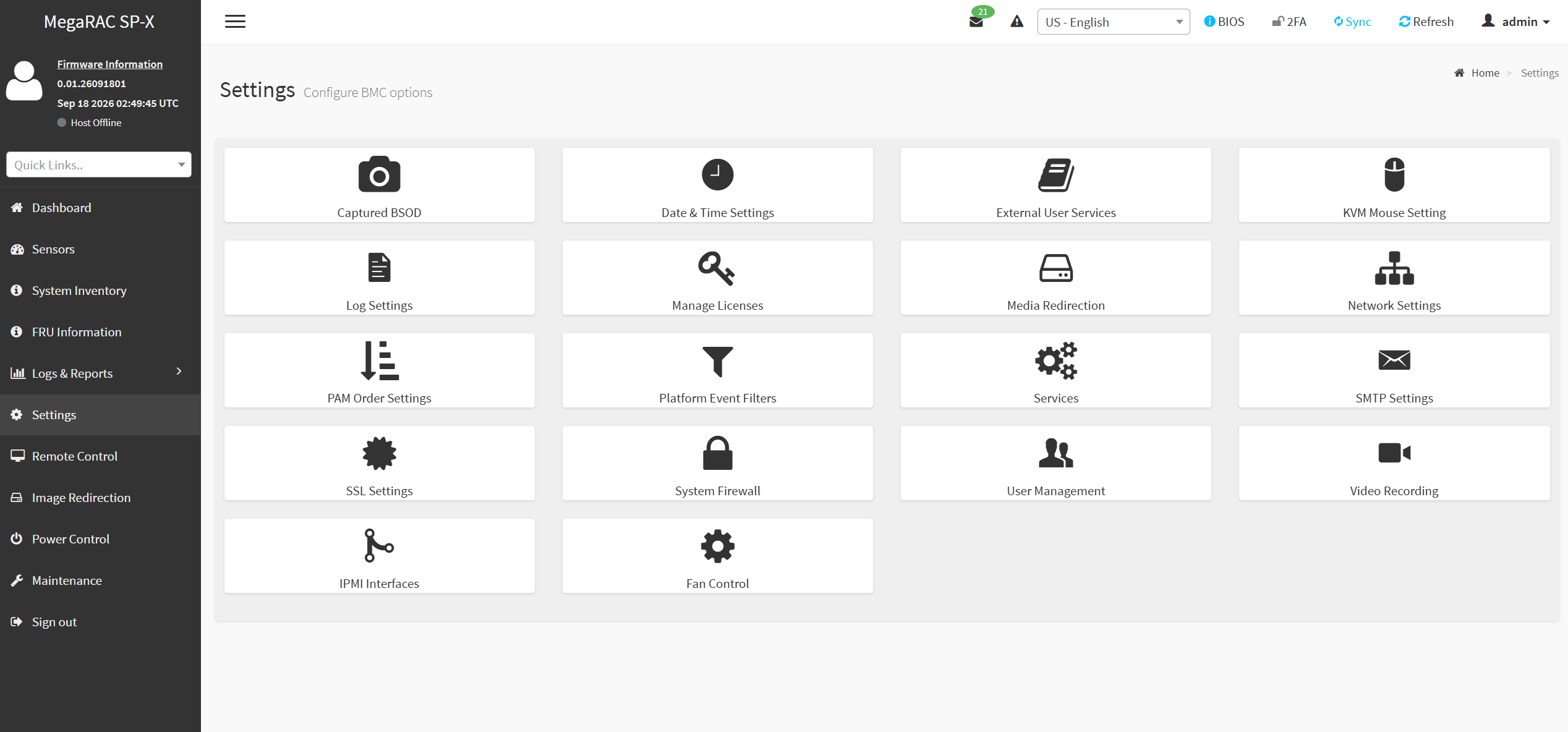

          Remote Management
          Remote Management

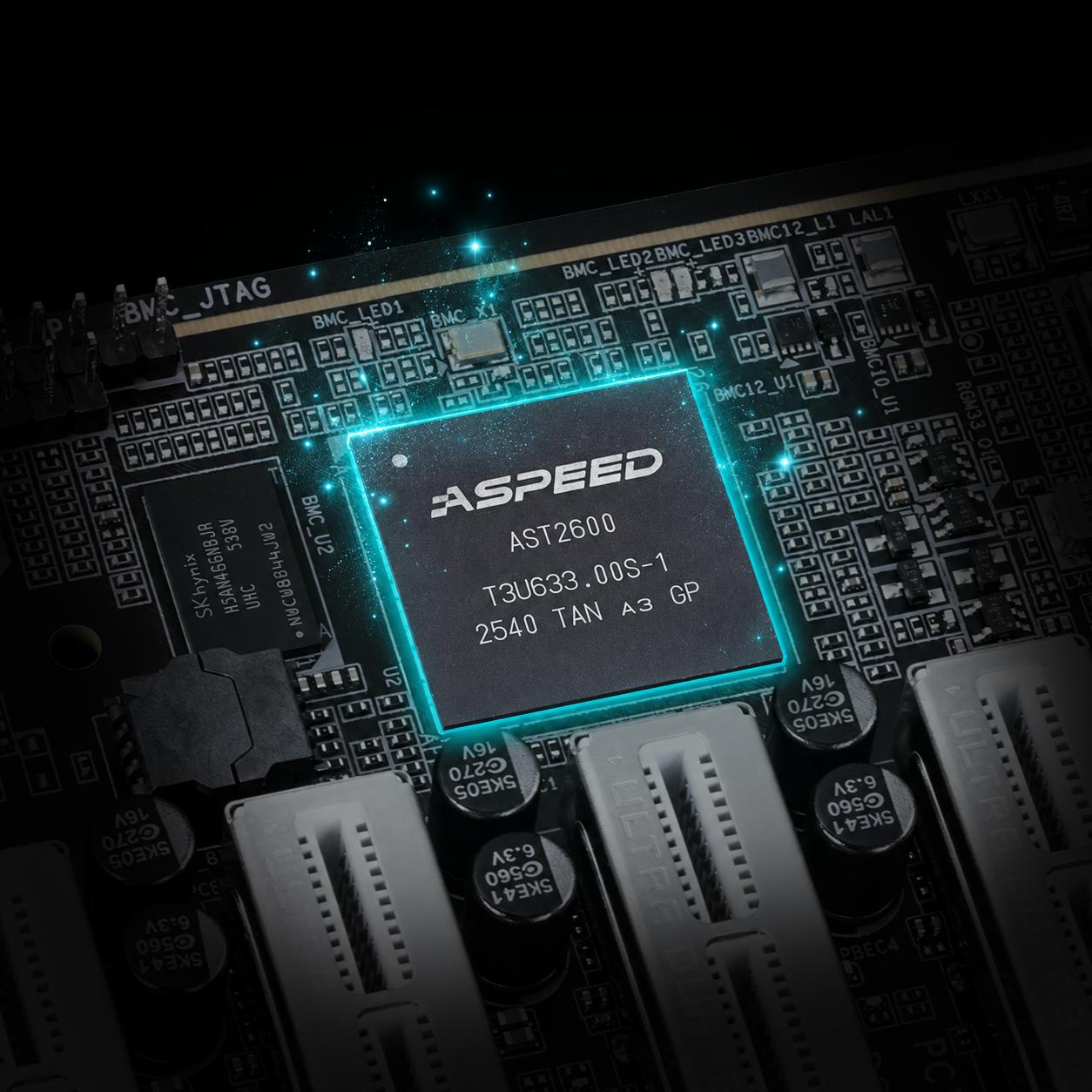

          An onboard ASPEED® AST2600 BMC controller delivers full IPMI remote management, allowing administrators to monitor hardware, trigger power cycles, and perform system maintenance completely independent of the OS.

          Software AI TOP Utility
          Comprehensive Utility Suite

          Tailor your workstation setup with GIGABYTE's suite of software applications—helping you optimize performance, fine-tune system settings, and manage local AI workloads.

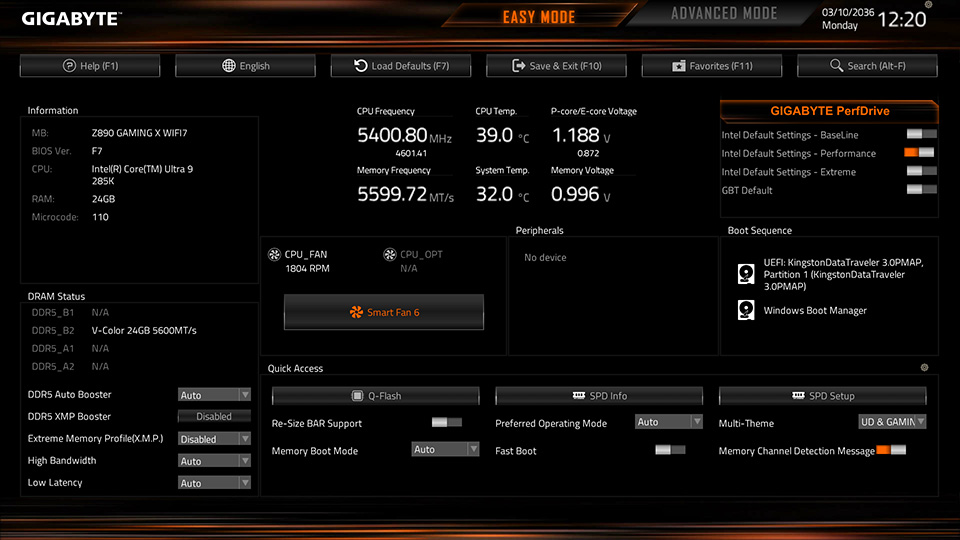

          UC BIOS

          Restructured with user-centered and intuitive performance adjustment mechanisms.

          Click to go BIOS path

          One click to screenshot

          Learn more

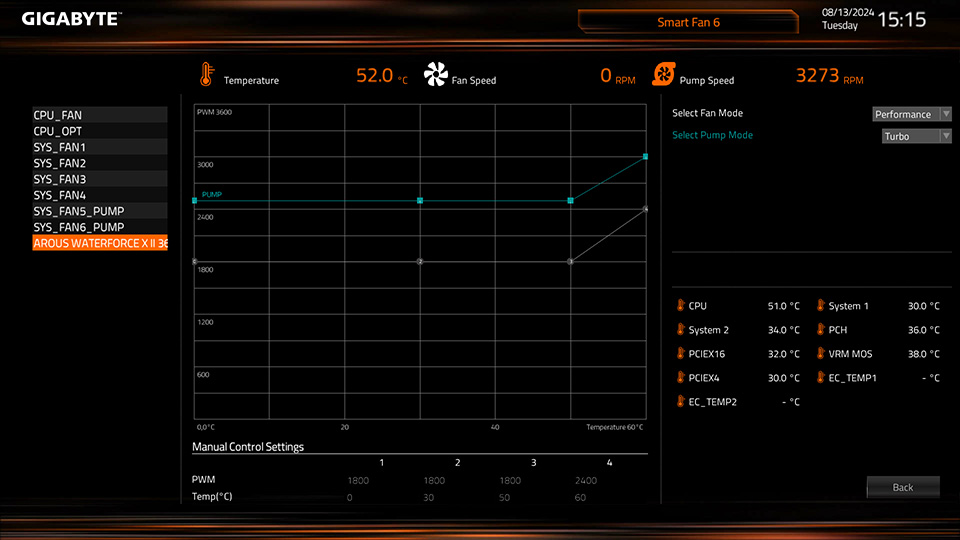

          AIO Fan Control

          Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

          * Supports for AORUS WATERFORCE X II series AIO only

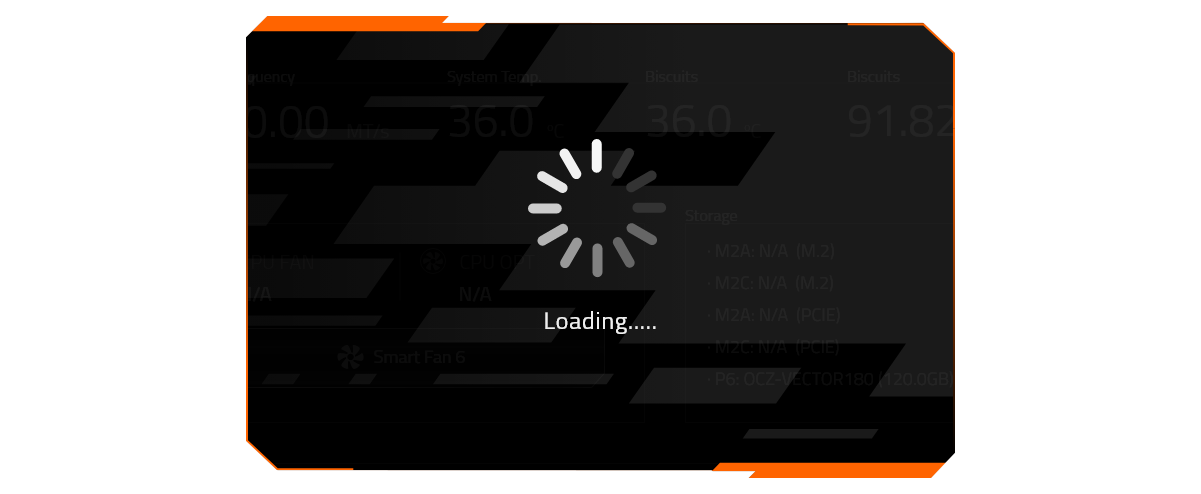

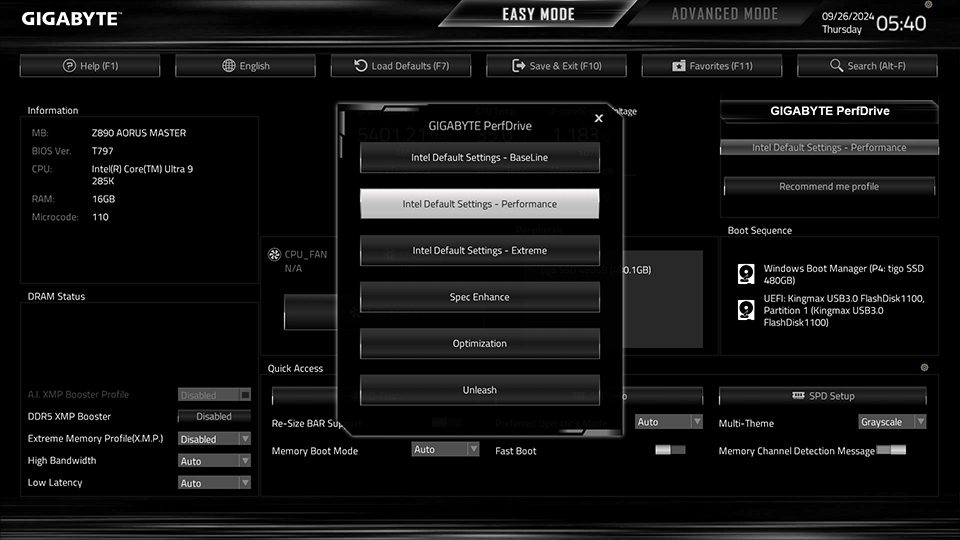

          AI PerfDrive

          Featuring "Recommand me profile" function, AI Perfdrive uses the loading tool to make intelligent evaluation and predictions of the optimal usage scenarios for users. Based on the actual temperature performance of the user's system, it can provide users the most optimal and customized "preset profile" recommendations.

          Loading tool

          Refined BIOS Interface

          GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.

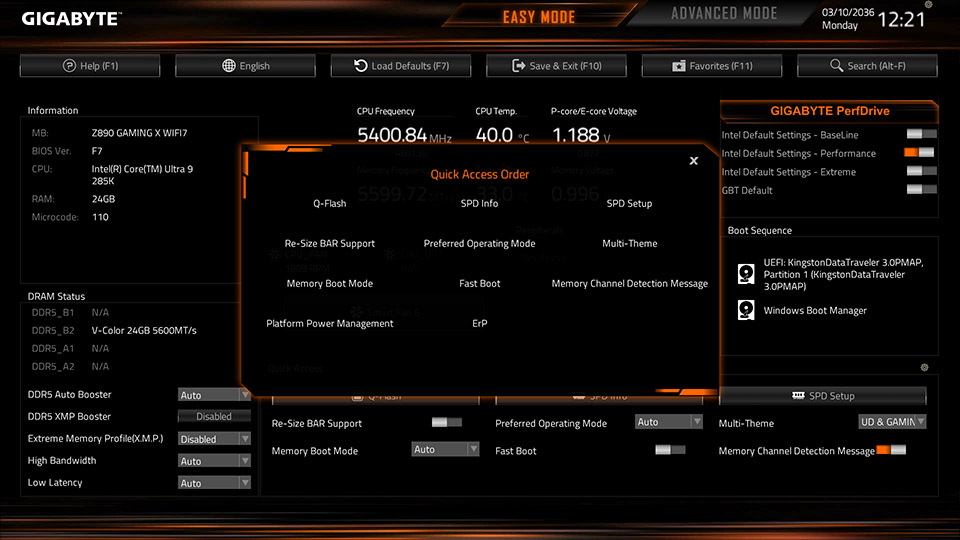

          Quick Access Function

          GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

          AI TOP Utility

          Bringing essential AI capabilities into a compact, intuitive platform.

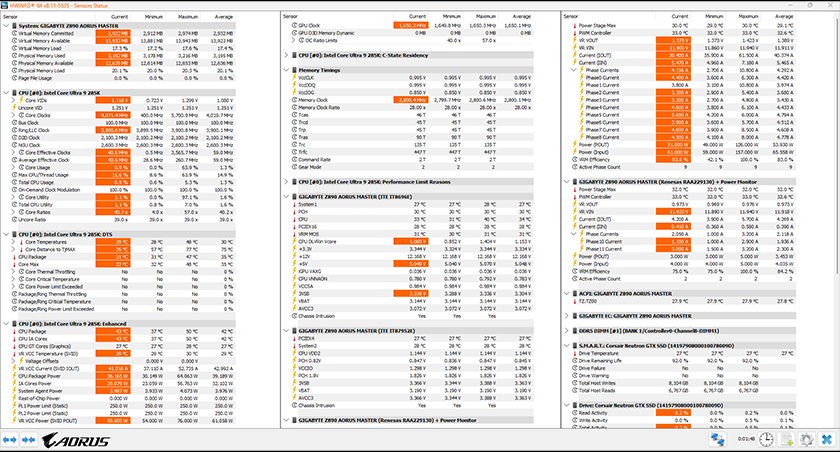

          HWiNFO

          Exclusive Partnership

          AORUS & HWiNFO Co-branded OSD
          Learn more

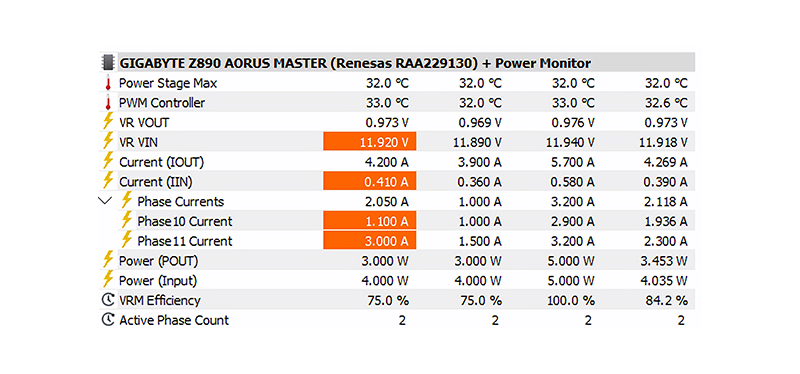

          Power Monitor

          The new feature provides real-time monitoring on CPU Vcore power phases.

          • Output current/power in total
          • Output of each power phase
          • Efficiency

          * This feature will be activated only on GIGABYTE AMD and Intel 800 series motherboards with Intersil, Onsemi, and Infineon power controller.

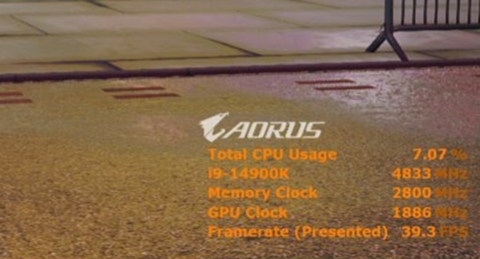

          AORUS & HWiNFO Co-branded OSD

          AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

          Default AORUS skin

          When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

          *AORUS skin auto-applies when detecting a GIGABYTE motherboard.

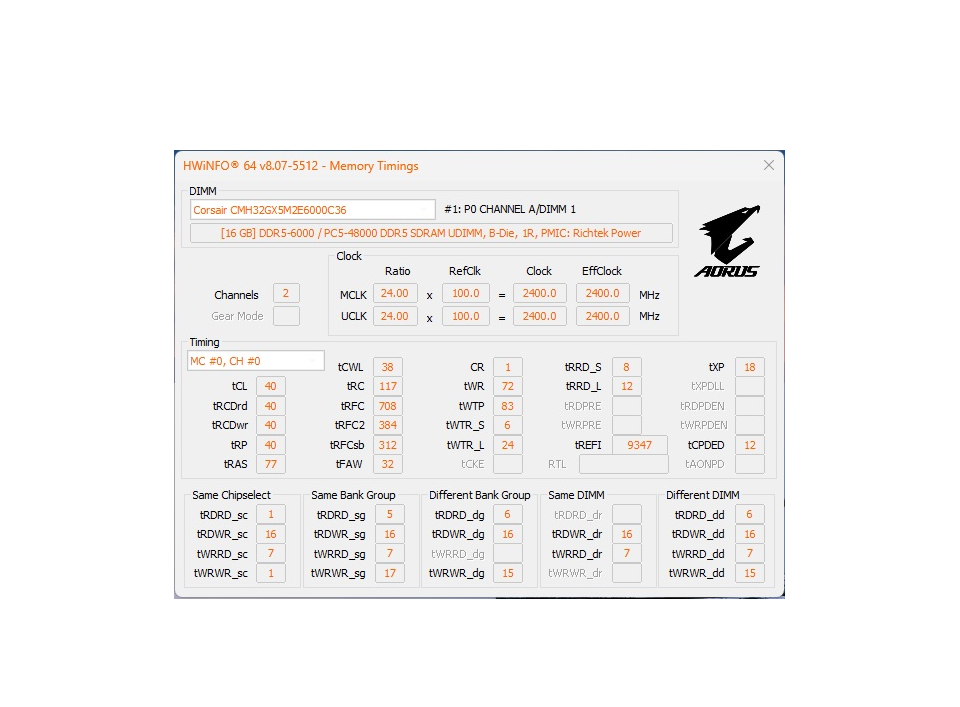

          Memory Timings Monitor

          Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

          Detailed BIOS information

          GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

          GIGABYTE Control Center

          A unified software platform encompassing multiple GIGABYTE product.

          RGB Fusion
          Personalize the RGB illumination on your motherboard and connected peripherals.
          Learn more
          Varnish your shine

          Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

          *The information provided is for reference; please prioritize your specific setup and specifications.
          1x RGB LED header
          3x ARGB LED headers

          * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
          * Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
