TO17-D81-L01

ORV3 Server - AMD EPYC^™ 9006 SP7 Server Processors - 1OU 2-Node DP 4-Bay E3.S Gen6 NVMe DLC

CPU DLC solution with leak detection
1OU 2-node front access server system
Dual AMD EPYC^™ 9006 SP7 Server processors per node
16-Channel DDR5 RDIMM/MRDIMM per CPU with 32 x DIMMs per node
2 x E3.S Gen6 NVMe hot-swap bays per node
3 x LP PCIe x16 slots with Gen6 x16 lanes per node
48 V to 54 V DC bus bar power solution

Ordering Numbers: 6NTO17D81HR000L01*

Save

Quote

6th Generation AMD EPYC™ Processors for SP7 Socket

DDR5 channels

Delivering up to 1.6TB/s memory bandwidth in 1DPC (MRDIMMs)

Up to 256

CPU cores

More VMs per rack and more tasks done with less real estate

Zen6 & Zen6c

Cores

Optimized core package to achieve high frequency or high density

CXL 3.1

Support

Multi-host memory sharing and P2P over fabric at double data rate

PCIe Gen6

Lanes

2x per-lane bandwidth vs Gen5, for next-gen GPUs, NICs, and storage

2nm

Architecture

Smaller process node boosts core density and efficiency per watt

Select GIGABYTE for the AMD EPYC™ 9006 Platform

High Performance

Servers and motherboards by GIGABYTE are tested to ensure peak performance for demanding workloads such as high frequency training and scientific simulation.

Advanced Cooling

GIGABYTE's cooling solutions utilize diverse technologies and system designs, purpose built to keep demanding workloads performing at their peak.

Fast and Stable Connectivity

Keeping pace with the challenges for next gen technology, GIGABYTE boards provide users the signal integrity for PCIe 6.0 speeds and I/O flexibility.

Optimal Price

A broad portfolio tailored to specific applications lets customers select only the features a workload needs, keeping total cost of ownership down.

Memory Bandwidth

GIGABYTE boards support the maximum 32-channel DDR5 subsystem EPYC 9006 offers running at up to 12800 MT/s (MRDIMMs). Expertly crafted layouts ensure bandwidth remains stable under heavy workloads.

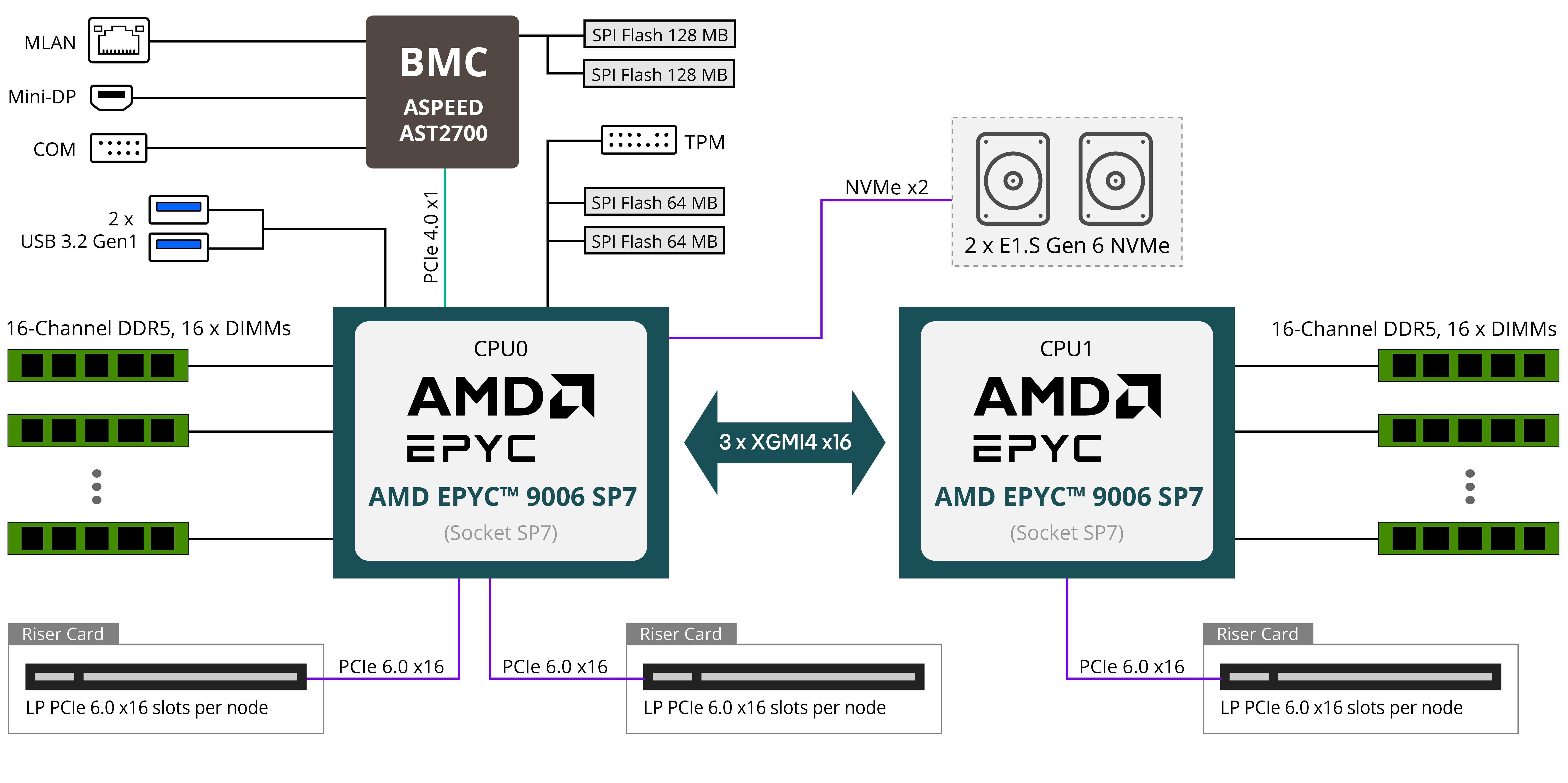

TO17-D81-L01 Block Diagram

Power Efficiency

Automatic Fan Speed Control

GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.

Hardware Security

Optional TPM 2.0 Module

For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

System Management

Enhanced HPC & AI Management with AST2700

The AST2700 delivers increased performance and efficiency over previous generations. It is built to support high-density multi-node HPC and AI systems, with enhanced CMC to BMC communication reducing retransmissions and IPMB signal interference. In addition, it comes equipped with the management and diagnostic tools operators need to recover quickly when issues arise.

Firmware rollback across the last five BMC and BIOS versions
Dual OS ISO storage for remote recovery and Virtual Media installation
Full BMC process logging for diagnostics

High Availability

Dual ROM Architecture

If the ROM that stores the BMC and BIOS fails to boot, the system will reboot with the backup BMC and/or BIOS replacing the primary. Once the primary BMC is updated, the ROM of the backup BMC will automatically update the backup through synchronization. For the BIOS, it can be updated based on user's choice of firmware version.

User Friendly

Tool-less Drive Bays Design

Clipping mechanism secures the drive in place. Install or replace a new drive in seconds.

Certified Ready with Software Partners

Being a member of key software alliance partner programs enables GIGABYTE to rapidly develop and validate joint solutions, enabling our customers to modernize their data centers and implement IT infrastructure and application services with speed, agility, and cost optimization.

المواصفات

Dimensions (WxHxD, mm)

1OU 2-Node

Open Rack Version

ORV3

Motherboard

MD85-HD0

CPU

AMD EPYC^™ 9006 SP7 Server processors

^[DLC]Dual processors per node, PPT up to 600 W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Memory

32 x DIMM slots per node
Support DDR5 RDIMM/MRDIMM^[1]
16-Channel memory per processor

RDIMM: Up to 8000 MT/s
MRDIMM: Up to 12800 MT/s

^[1]MRDIMMs are supported only on select CPU SKUs.

LAN

Front:
1 x Management LAN per node

Video

Integrated in ASPEED^® AST2700
- 1 x Mini-DP per node

Storage

Front hot-swap:
2 x E3.S Gen6 NVMe per node, from CPU_0

PCIe Expansion Slots

Riser Card x 3:
2 x LP x16 (Gen6 x16) per node, from CPU_0
1 x LP x16 (Gen6 x16) per node, from CPU_1

Front I/O

Per node:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x Power button with LED
1 x System status LED
1 x ID LED

Security Modules

1 x TPM header with SPI interface per node
- Optional TPM 2.0 kit: CTM012

System Fans

4 x 40x40x56mm per node

Operating Properties

Operating temperature: 10°C to 30°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)

^[Note]To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 45°C.

Packaging Content

1 x TO17-D81-L01
2 x CPU cold plate loops
1 x Mini-DP to D-Sub cable

Part Numbers

- Barebone package: 6NTO17D81HR000L01*
- Motherboard: 9MD85HD0ID-000*

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
