اللوحة الرئيسية - GA-Z170X-Gaming G1
  • تدعم تقنية Intel® Thunderbolt™ 3
  • تدعم الجيل السابع/ السادس من معالجات Core™ من إنتل
  • 4 واجهات تركيب ذاكرة DDR4 ثنائية المسار
  • تقنية USB 3.1 و واجهات USB Type-C™ من إنتل - الجيل التالى من واجهات التوصيل Universal
  • تركيب 4 كروت جرافيك مع غطاء معدنى فائق التحمل لحماية واجهات PCIe
  • 2 واجهة PCIe Gen3 x4 M.2 لسرعة نقل بيانات تصل إلى 32Gb/s (دعم PCIe و SATA SSD)
  • 3 واجهات SATA Express لسرعة نقل بيانات تصل إلى 16Gb/s
  • دعم HDMI 2.0
  • شريحة صوت ZxRi 120+dB SNR باعتمادCreative Sound Blaster
  • برنامج Killer DoubleShot-X3™ Pro لأفضل أداء للتوصيل الشبكى
  • مسار مميز بإضاءة LED ذات ألوان متعددة تبعاً لاختيارك
  • وحدة تبديد حرارى جاهزة للعمل بالتبريد المائى مع وصلات G1/4 Threaded
  • مركز التطبيقات و الذى يشمل أداة EasyTune™ و Cloud Station™
  • تقنية UEFI DualBIOS™ من جيجابايت مع واجهة USB مخصصة لأداة Q-Flash Plus
GIGABYTE Z170X-Gaming G1 Unboxing Video
How to install Windows 7

رؤية عامة


  • High End Nichicon Fine Gold and WIMA Audio Caps
    With its 100 series, GIGABYTE introduces a combination of Hi-Fi grade WIMA Capacitors and Nichicon audio grade Fine Gold capacitors. While the Nichicon Fine Gold capacitors are suited for high-grade audio equipment, using state of the art technology to provide rich sound in the bass and clearer high frequencies, the WIMA FKP2 capacitors are being used widely in premium grade Hi-Fi systems. The addition of this to the AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.

  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

    * Display feature may vary by model.



  • AMP-UP™ Audio Technology with Triple Upgradable OP-AMPs

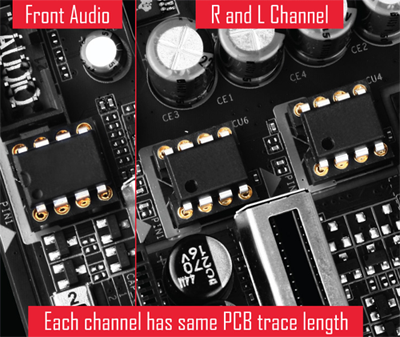

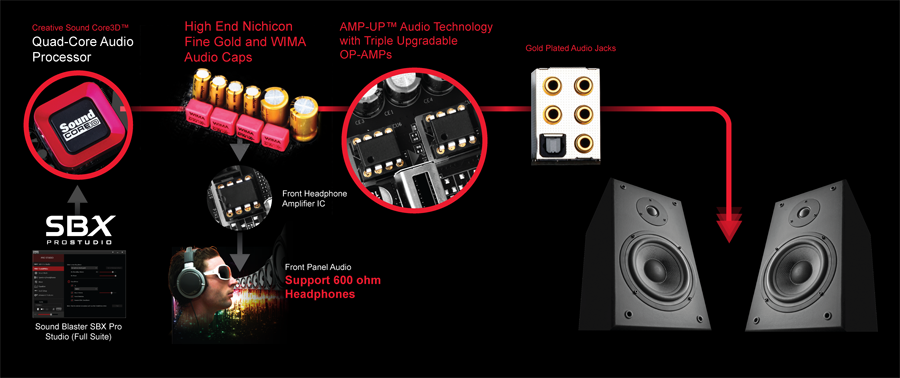

    GIGABYTE offers true sound customization with its triple upgradable OP-AMP solution. To ensure users receive the best sound profile matching their needs and experience the most enjoyable audio, GIGABYTE has included an OP-AMP for both left and right channels on the rear I/O as well as a dedicated OP-AMP for the front audio jack.
  • Onboard Discrete Card Level Audio Design
    Creative Sound Blaster Certified
    ZxRi 120dB+ Audio


  • Creative SBX Pro Studio™ Audio Suite

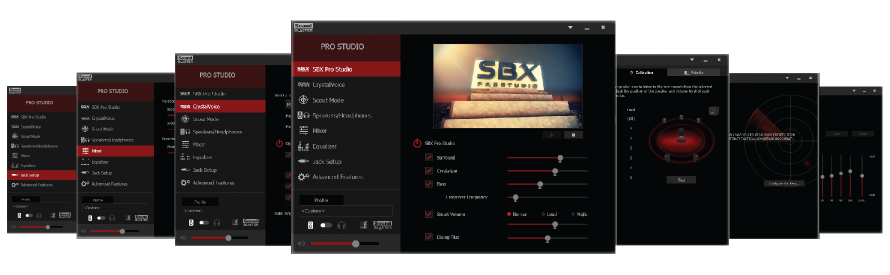

    SBX Pro Studio™ suite of audio playback technologies delivers a new level of audio immersion. Realistic surround sound and the ability to clearly hear specific sounds in a gaming environment are just a few elements of the SBX Pro Studio that enhances the overall experience, be it movies, games or music.

  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
  • Killer DoubleShot-X3™ Pro
    Automatically prioritize your game network needs over the fastest available connection for high quality, lag-less and uninterrupted gaming connectivity.
    2 Killer GbE + 1 Killer WiFi
    The Killer DoubleShot Pro™ X3 allows three killer interfaces to work together for the best networking by freeing the highest bandwidth to the most important traffic, allowing you to multitask without affecting your performance.





  • Dual PCIe Gen3 x4 M.2
    With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

    The above photos are for reference only.

  • Turbo B-Clock:
    Built-in Advanced Performance Tuning IC

    Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.

  • All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…

    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.


    APP Center

    GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.




    Easy Tune™
    Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
    Cloud Station™
    GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.




  • Industry Leading Ultra Durable™ PCIe Metal Shielding
    The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.





  • Q-Flash Plus
    GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.

    Updating your BIOS on your GIGABYTE motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your GIGABYTE Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

    * USB thumb drive not included.
  • 22 Phases Digital Power Delivery Design

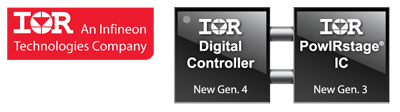

    For its 100 series motherboards, GIGABYTE features a 22 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.


  • Water Block Thermal Design with G1/4 Threaded Fittings

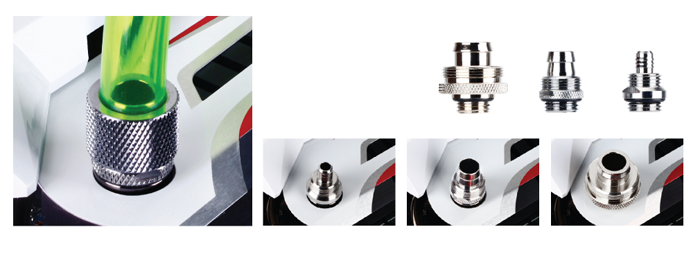

    Tube connectors at each end of the heatsink provide easy integration with any water cooled system. These technologies help combat high temperatures by effectively removing heat from critical areas of the motherboard such as the CPU VRM zone, allowing it to remain cool, even when the battle heats up.

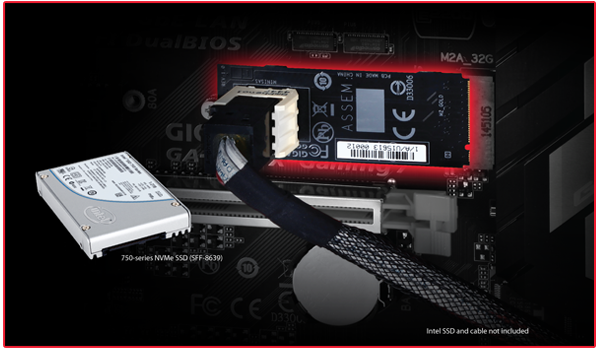

  • Fast Intel® 750 Series 2.5" SSD Support via M.2 to U.2 Add-in-Card
    GIGABYTE motherboards support the latest consumer NVMe SSD for truly amazing performance

    Experience the future of storage performance for desktop client and workstation users with the Intel® SSD 750 Series. The Intel® SSD 750 Series delivers uncompromised performance by utilizing NVM Express over four lanes of PCIe 3.0.
  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.


    The above photos are for reference only. Features may vary by model.





  • GIGABYTE G1™ Gaming Motherboards
  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
  • Extreme Multi-GPU Support
    Maxed Out Graphics

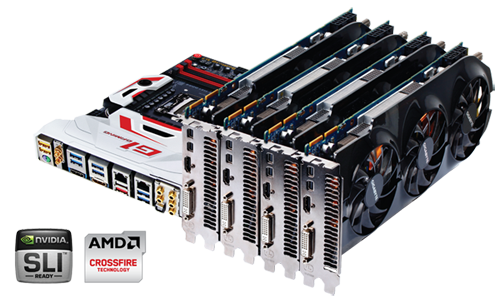

    Unleash the ultimate in graphics configurations. Support for up to 4 full length discrete VGA cards.

    Total Realism:
    Enjoy the latest gaming titles with maxed out 'Ultra High' settings.
    See More Action:
    Get smooth frame rates on High Resolution 1440p Displays.
  • GC-USB3.1 BAY

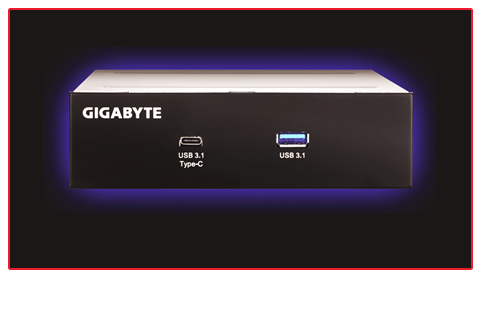

    GIGABYTE USB3.1 5.25" Front Bay Expansion Port
    • USB Type-C™ supports USB Power Delivery 2.0 (Profile 5) delivering  100 watts power
    • x1 future-proof reversible Type-C™ connector
    • x1 popular Type-A connector
    • Supports USB 3.1, USB 3.0 and USB 2.0
    • High-quality steel construction
    • Fits in standard 5.25" drive bay
    • Uses SATA-Express interface to provide USB3.1 support for up to 10Gb/s data-transfer speed

  • واجهة HDMI 2.0 تدعم 4K/60P/21:9/HDCP 2.2
    تتيح واجهة HDMI 2.0 – و المتوافقة مع HDMI 1.4 الأقدم – نطاق تمرير تصل سعته إلى 18 Gb/s أى ما يعادل ضعف سعة الجيل السابق تقريباً. و يفتح ذلك المجال أمام المستخدمين لنقل ملفات الفيديو ذات معدل الوضوح 21:9 (و التى يتم بها تصوير أغلب الأفلام السينمائية) و هو ما يحقق مزيد من الاستمتاع بمشاهدة الأفلام.
    يتطلب تحميل أحدث برامج تشغيل الجرافيك من إنتل و ذلك عبر موقع جيجابايت..
  • الجيل القادم من تقنية Thunderbolt™ 3 لنطاق نقل بيانات تصل سعته إلى 40 Gb/s
    تقنية Thunderbolt™ 3 – كابل توصيل أحادى بسعة نقل بيانات 40Gb/s


    لوحات رئيسية حاصلة على اعتماد تقنية Thunderbolt™ 3 من إنتل
    من خلال شريحة التحكم Thunderbolt من إنتل، يتيح بروتوكول Thunderbolt™ 3 عبر واجهة USB Type-C™ بلوحة التوصيل الخلفية فى لوحة جيجابايت Z170X-Gaming G1 كابل نقل بيانات أحادى تصل سعته إلى 40 Gb/s و هى ضعف سعة الجيل السابق من تقنية Thunderbolt! هذه الزيادة الهائلة فى سعة نطاق نقل البيانات يصاحبها أيضاً دعم العديد من البروتوكولات مثلDisplayPort 1.2 و USB 3.1 و المتوافق مع الجيل السابق USB 3.0 و USB 2.0 و هو ما يفتح أمامك عالماً جديداً من الإمكانيات الهائلة.

    لتحديث اللوحة الرئيسية Z170X-Gaming G1 توجه إلى : http://www.gigabyte.com/products/product-page.aspx?pid=5478#utility

    ربط العديد من الوحدات
    إن دعم واجهة DisplayPort 1.2 يجعل من تقنية Thunderbolt™ 3 ضرورة ملحة للراغبين فى الاستمتاع بإمكانيات هائلة لعروض الفيديو. هذا و تستطيع اللوحة الرئيسية Z170X-Gaming G1 تقديم عروض 4K بمعدل تتابع كادرات 60 FPS . بالإضافة إلى ذلك تدعم تقنيةThunderbolt™ 3 عبر واجهة USB Type-C™ العديد من الخصائص الجديدة و المتطورة التى يشهدها عالم الحاسبات لأول مرة مثل تقنية Power Delivery 2.0 و كذا القدرة على ربط حتى 6 وحدات. شكراً لواجهة USB Type-C™ الخاصة باللوحة الرئيسية Z170X-Gaming G1
    Compatibility may vary according to system configuration and device specifications.
