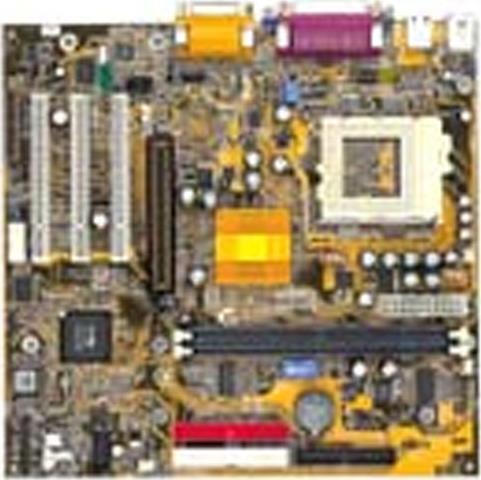

GA-6PMM (Rev. 3.2)

СпецификацииПоддержкаНовости & НаградыWhere to Buy

Спецификации

  • Процессор
    1. Socket 370 for Intel® FC-PGA Pentium™, III or other compatible processors
    2. Auto 66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
    3. L2 coche in CPU (depend on CPU)
  • Чипсет
    1. VIA VT8605 (PM133)
    2. VIA VT82C686B
    3. Chipset with build-in S3 Savage 4 graphics core
    4. AC 97 codec
  • Подсистема памяти
    1. 2 168-pin DIMM sockets
    2. Supports SDRAM 16MB~1GB (Max)
    3. Supports PC100/PC133 SDRAM and VCM SDRAM
    4. Supports only 3.3V SDRAM DIMM
  • Разъёмы для плат расширения
    1. 1 x AGP slot support 4X mode & AGP 2.0 compliant
    2. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 1 x AMR(Audio Modem Riser) slot (reverse)
  • Микросхема
    I/O-контроллера
    1. 2 x UDMA ATA33/66/100 IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB & 1 x COM port by cable (optional accessary)
    6. IrDA header ready
  • Контроль за состоянием системы
    1. CPU/System fan speed detect
    2. CPU/System temperature detect
    3. System voltage detect
    4. CPU overheat shutdown detect
    5. ACPI Shut Down Temp detect
  • Микросхема BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/Win ME compliance, Green , PnP, DMI, INT13(>8.4GB)&Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
    6. Supports @BIOS? Live Update
  • ПО в комплекте поставки
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. S3 Savage4 graphic accelerator driver
  • Форм-фактор
    1. Micro ATX, 4layer PCB (24.3*23.4cm)
  • Other Features
    1. Supports Wake-On-LAN (WOL) & Internal/External Modem Ring on
    2. Supports USB KB or mouse wake up
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports STR (Suspend To RAM) function
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000/ME shut down & switch
  • Процессор
    1. Socket 370 for Intel® FC-PGA Pentium™, III or other compatible processors
    2. Auto 66/75*/83*/100/112*/124*/133/140*/150* MHz FSB
    3. L2 coche in CPU (depend on CPU)
  • Чипсет
    1. VIA VT8605 (PM133)
    2. VIA VT82C686B
    3. Chipset with build-in S3 Savage 4 graphics core
    4. AC 97 codec
  • Подсистема памяти
    1. 2 168-pin DIMM sockets
    2. Supports SDRAM 16MB~1GB (Max)
    3. Supports PC100/PC133 SDRAM and VCM SDRAM
    4. Supports only 3.3V SDRAM DIMM
  • Разъёмы для плат расширения
    1. 1 x AGP slot support 4X mode & AGP 2.0 compliant
    2. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    3. 1 x AMR(Audio Modem Riser) slot (reverse)
  • Микросхема
    I/O-контроллера
    1. 2 x UDMA ATA33/66/100 IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB & 1 x COM port by cable (optional accessary)
    6. IrDA header ready
  • Контроль за состоянием системы
    1. CPU/System fan speed detect
    2. CPU/System temperature detect
    3. System voltage detect
    4. CPU overheat shutdown detect
    5. ACPI Shut Down Temp detect
  • Микросхема BIOS
    1. 2Mbit Flash RAM
    2. AMI BIOS with enhanced ACPI feature for PC98/Win98/Win2000/Win ME compliance, Green , PnP, DMI, INT13(>8.4GB)&Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    4. AC recovery ON/OFF control
    5. Auto-detect & report system health status
    6. Supports @BIOS? Live Update
  • ПО в комплекте поставки
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
    3. S3 Savage4 graphic accelerator driver
  • Форм-фактор
    1. Micro ATX, 4layer PCB (24.3*23.4cm)
  • Other Features
    1. Supports Wake-On-LAN (WOL) & Internal/External Modem Ring on
    2. Supports USB KB or mouse wake up
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports STR (Suspend To RAM) function
  • Power
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/2000/ME shut down & switch

* Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
