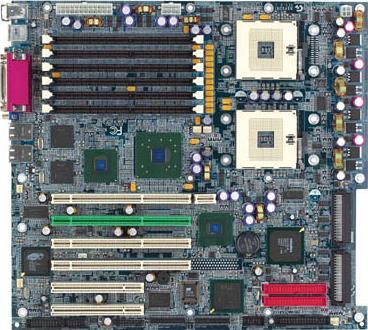

GA-8IPXDRLegacy | Software updates supported
- Intel® E7500 (Plumas), ICH3-S, Dual P64H2, ATI® Rage XL 8MB
- Dual Intel® Xeon™ Processors with 512KB L2 Cache (Socket 603/400MHz FSB/2.4GHz+)
- Max. 12 GB Registered (ECC) DDR-266 Memory in 6 DIMM Slots(Dual Channels, 3.2GB/s)
- Adaptec® 7899W Dual Ultra 160 SCSI Channels
- Intel® RAIDIOS/Adaptec® Zero Channel RAID Enabled PCI-X Slot
- 4 PCI-X Slots with 133, 100, 66MHz Support (3.3V), 2 PCI 32-Bit/33MHz
- Dual Intel® 82544GC PCI-X Gigabit Ethernet Ports to Ensure GbE Fault Tolerance
- EATX 12”W x 13”D, SSI 3.0 Power (24-Pin, 8-Pin, 4-Pin 12V. Auxiliary), VRM 9.1
- Optional IPMI 1.0 Module
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Dual Intel® Xeon Prestonia CPUs up to 2.4 GHz
- 400 Mhz FSB
Chipset
- Intel® E7500 MCH (Memory Controller Hub)
- Intel® ICH 3
- P64H2*2 (PCI-X)
LAN
- 2 Intel® 82544GC Gigabit Controller
- Wake On LAN (WOL)
- Adapter Fault Tolerance (AFT)
- Adaptive Load Balancing (ALB)
- EtherChannel* (FEC/GEC)
Video
- ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Adaptec® 7899W SCSI Controller
- Dual SCSI Channels (Ultra 160)
- Dual ATA-100 IDE Channels
RAID
- Intel®RAIDIOS (Optioal)
Expansion Slots
- 4 x PCI-X 133/100/66 MHz
- 2 x PCI 32/33 Mhz
Rear I/O
- 2 x PS/2(Keyboard and Mouse Connectors)
- 4 x USB (2x at Rear, 2x By.Cable)
- Two COM Ports (1xRear, 1xBy.Cable)
- 1 x LPT
- 2 x LAN RJ45
