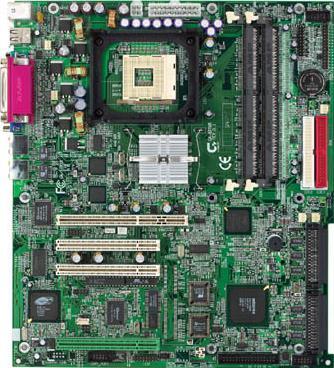

GA-8IRXRLegacy | Software updates supported
- Supports single Intel® Pentium 4 processor (Socket 478/400Mhz FSB up to 2.4 Ghz)
- Intel® 845D/ICH2 Chipset
- Max. 2GB Un-Buffered (ECC) DDR-200/DDR-266 Memory in 2 DIMM Slots
- Adaptec® 7899G Chip support Dual Ultra-160 SCSI Channels
- Intel® RAIDIOS Zero Channel RAID Enabled PCI Slot
- Dual Intel® 82550PM 10/100 Mps Fast Ethernet with Advanced Software Functions
- Winbond® W83910F BMC Chip with IPMI 1.0 Support
- ATX 12"W x 10.5"D, ATX +12V Auxiliary Power, VRM 9.0
- Specifications
- Support
- Related Resources
Specifications
CPU
- Supports Intel® P4 Processor up to 2.4 GHz
- 400 Mhz FSB
- Socket 478
Chipset
- Intel® Brookdale 845D/ICH2
LAN
- Dual Intel® 82550PM 10/100 Mbps Ethernet LAN controllers onboard
- Adapter Fault Tolerance（AFT）
- Adaptive Load Balancing（ALB）
- WOL（Wake On LAN）
- Fast EtherChannel（FEC）
Video
- ATI Rage-XL on board with 8MB memory
IDE / SCSI
- Adaptec® 7899G SCSI Controller
- Dual SCSI Channels (Ultra 160)
- Dual ATA-100 IDE Channels
RAID
- Intel® RAIDIOS and 32-Bit Adaptec® ZCR Enabled PCI Slot (Available for GA-8IRXR-A model)
- Supports Adaptec® ZCR Enabled SO-DIMM (Available for GA-8IRXR-B model)
Expansion Slots
- 4 x PCI 32/33MHz PCI Slots
- Note:The Green slot is for ZCR
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x COM
- 1 LPT
- 2 X LAN RJ45
