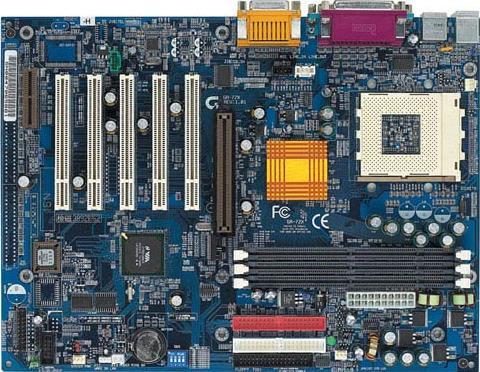

GA-7ZX-H (Rev. 5.1)

EspecificaçãoSuporteNotícias/PrêmiosWhere to Buy

Especificação

  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 1.2GHz and faster
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363A (KT133A) North bridge
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. MOTHERBOARD AC97 codec
  • Memória
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Slots de Expansão
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador I/O
    1. 2 x UDMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Monitoramento H/W
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
  • BIOS
    1. AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX, 4 layer PCB (30.4*22.7cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Outras Características
    1. Supports Wake-On-LAN (WOL); Support Internal/External modem ring on
    2. Supports USB K/B or mouse wake up from S3
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports STR (Suspend-To-RAM) function
    6. Supports EasyTune III™
  • Energia
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000 shut down & switch
  • CPU
    1. Socket A for AMD Athlon™ /Duron™ 200/266MHz FSB processors
    2. Supports 500MHz ~ 1.2GHz and faster
    3. AUTO detect CPU voltage
  • Chipset
    1. VIA VT8363A (KT133A) North bridge
    2. VIA VT82C686B PCI Super-I/O Integrated Peripheral Controller (PSIPC)
    3. MOTHERBOARD AC97 codec
  • Memória
    1. 3 168-pin DIMM sockets
    2. Supports PC-100 / PC-133 SDRAM and VCM SDRAM
    3. Supports up to 1.5GB DRAM
    4. Supports only 3.3V SDRAM DIMM
  • Slots de Expansão
    1. 1 x AMR (Audio Modem Riser) slot
    2. 1 x AGP slot supports 4X mode & AGP 2.0 compliant
    3. 5 x PCI slots support 33MHz & PCI 2.2 compliant
  • Controlador I/O
    1. 2 x UDMA 33/66/100 bus master IDE ports on board
    2. 1 x FDD, 2 x COM, 1 x LPT, PS/2 keyboard, PS/2 Mouse on board
    3. 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 2 x USB ports by cable (optional accessary)
    6. IrDA TX / RX header ready
  • Monitoramento H/W
    1. CPU/System fan revolution detect
    2. CPU/System temperature detect
    3. System voltage detect (Vcore,VDD ,Vcc,+12V)
  • BIOS
    1. AMI BIOS with enhanced ACPI feature for PC98/Win98/WinMe/Win2000 compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
    2. IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    3. AC recovery ON/OFF control
    4. Auto-detect & report system health status
    5. Supports @BIOS™ Live Update
  • Form Factor
    1. ATX, 4 layer PCB (30.4*22.7cm)
  • Driver
    1. Gigabyte Windows Utility Manager
    2. VIA 4 in 1 service pack utility
  • Outras Características
    1. Supports Wake-On-LAN (WOL); Support Internal/External modem ring on
    2. Supports USB K/B or mouse wake up from S3
    3. Includes 3 fan power connectors
    4. Poly fuse for keyboard over-current protection
    5. Supports STR (Suspend-To-RAM) function
    6. Supports EasyTune III™
  • Energia
    1. ATX power connector
    2. Power-on by LAN, RTC, Modem & switch
    3. Power-off by Windows 95/98/Me/2000 shut down & switch

* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida
