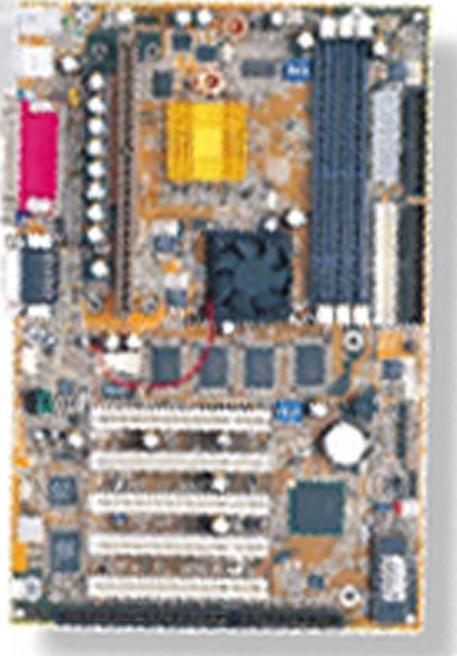

GA-6BXM

SpezifikationUnterstützungNews/AwardsWhere to Buy

Spezifikation

  • Prozessor
    1. Intel® Pentium® II / III and Celeron™ Processor
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.5/4.0 .... /9.5
  • Chipsatz
    1. Intel® 440BX AGPset
    2. iTE 8671 I/O set
    3. 3dfx Velocity/Voodoo3-3000 AGP chip (8/16MB SGRAM)
    4. Aureal AU8810 PCI Sound chip
    5. Winbond 83782 Health chip
  • Arbeitsspeicher
    1. 8MB to 768MB DRAM size
    2. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Erweiterungssteckplätze
    1. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • I/O
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM by cable (optional) ; IrDA TX / RX Header (optional)
  • H/W Überwachung
    1. Flexible Temperature sensor under processor Heatsink
    2. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    3. System Health status detect & report by BIOS, LDCM® & SIV
    4. H/W detect ±5V, ±12V, CPU Voltage & CMOS battery Status
  • BIOS
    1. 2Mbit Flash RAM ; IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    2. AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.0 cm)
  • Treiber
    1. Ultra DMA/33 Bus Master IDE Driver (Intel®)
    2. Intel®PIIX4e Patch Utility for Windows 95
    3. 3dfx VGA Driver ; Aureal Sound Driver
    4. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Andere Funktionen
    1. Includes Wake-On-LAN Header (WOL) & connector
    2. On board PC speaker ; Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors; Case open Detection
    4. Poly fuse for keyboard overcurrent protection
  • Stromversorgung
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control ; 3 Level ACPI LED Support
    5. Stop CPU Fan during entering suspend mode
  • Prozessor
    1. Intel® Pentium® II / III and Celeron™ Processor
    2. Slot 1 for future Processor support
    3. 66/75*/83*/100/112*/133* MHz System Bus
    4. AUTO Detect CPU Voltage
    5. Clock multiplier 3.5/4.0 .... /9.5
  • Chipsatz
    1. Intel® 440BX AGPset
    2. iTE 8671 I/O set
    3. 3dfx Velocity/Voodoo3-3000 AGP chip (8/16MB SGRAM)
    4. Aureal AU8810 PCI Sound chip
    5. Winbond 83782 Health chip
  • Arbeitsspeicher
    1. 8MB to 768MB DRAM size
    2. 3 x 100MHz 168-pin 3.3v DIMM sockets support
    3. Supports 8/16/32/64/128/256 MB SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72bits)
  • Erweiterungssteckplätze
    1. 5 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 1 x ISA Slot
  • I/O
    1. 2 x Ultra DMA/33 Bus Master IDE ports
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA (DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM by cable (optional) ; IrDA TX / RX Header (optional)
  • H/W Überwachung
    1. Flexible Temperature sensor under processor Heatsink
    2. Auto speed down and Alarm when CPU overheat or Fan failure (OS independent & Driverless)
    3. System Health status detect & report by BIOS, LDCM® & SIV
    4. H/W detect ±5V, ±12V, CPU Voltage & CMOS battery Status
  • BIOS
    1. 2Mbit Flash RAM ; IDE#1~#4, SCSI, LS120, ZIP & CD-ROM bootable
    2. AWARD BIOS with Enhanced ACPI Feature for PC98 / Win98 Compliance, Green, PnP, DMI, INT13 (>8.4GB) & Anti-Virus functions
  • Form Factor
    1. ATX , 4 layer PCB (30.5*20.0 cm)
  • Treiber
    1. Ultra DMA/33 Bus Master IDE Driver (Intel®)
    2. Intel®PIIX4e Patch Utility for Windows 95
    3. 3dfx VGA Driver ; Aureal Sound Driver
    4. TREND MICRO PC-cillin 98 Anti-Virus utility (scan only)
  • Andere Funktionen
    1. Includes Wake-On-LAN Header (WOL) & connector
    2. On board PC speaker ; Supports Internal / External modem wake on
    3. 3 Fan Power & Speed Detection Connectors; Case open Detection
    4. Poly fuse for keyboard overcurrent protection
  • Stromversorgung
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. AC Recovery ON/OFF control ; 3 Level ACPI LED Support
    5. Stop CPU Fan during entering suspend mode

* Die Begriffe HDMI, HDMI High-Definition Multimedia Interface, HDMI-Aufmachung (HDMI Trade Dress) und die HDMI-Logos sind Marken oder eingetragene Marken von HDMI Licensing Administrator, Inc.
* Das vorliegende Material dient nur zur Referenz. GIGABYTE behält sich das Recht vor, ohne Vorwarnung Inhalte zu verändern oder zu entfernen.
* Die beworbene Leistung basiert auf den maximal theoretischen Werten der Chipsatzhersteller oder von Organisationen, die die Interface-Spezifikationen erstellt haben. Die aktuelle Performance kann je nach Systemkonfiguration variieren.
* Alle Trademarks und Logos sind Eigentum der Markeninhaber.
* Aufgrund der Standard-PC-Architektur ist ein Teil des Speichers für die Nutzung des Systems reserviert und daher kann die aktuelle Speichergröße von der Speicherangabe abweichen.
