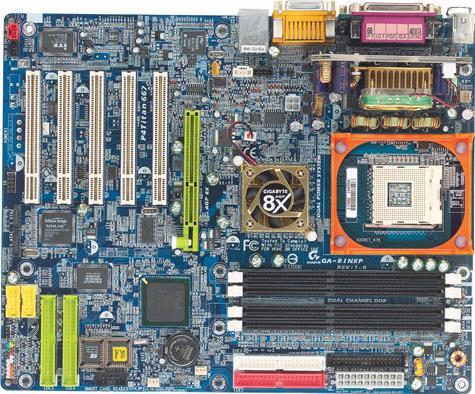

GA-8INXP (Rev. 1.x)

DescripciónEspecificaciónSoporte y DescargasNoticias / PremiosWhere to Buy

Especificación

  • Procesador
    1. Socket 478 for Intel® Pentium® 4 with HT Technology
  • Front Side Bus
    1. 533/400 MHz FSB
  • Chipset
    1. Intel® E7205 MCH
    2. Intel® 82801DB ICH4
    3. Intel® Kenai 32 LAN chip
    4. Silicon Image Sil3112A chip
    5. Promise 20276 RAID controller chip
    6. Realtek ALC650E Audio AC'97 CODEC
    7. Super I/O: ITE I/O IT8712F chip
    8. 2 x 4M bit flash ROM
  • Memoria
    1. Type: Dual DDR200/266 ECC support
    2. Max capacity: Up to 4 GB by 4 DIMM slots (Please read FAQ for further information)
  • Puertos de Expansión
    1. 1 x AGP 8x
    2. 5x PCI (PCI 2.2 compliant)
    3. 1 x Dual Power System slot
  • Conectores Internos de E/S
    1. 1 x FDD
    2. 2 x Serial ATA
    3. 2 x UDMA ATA 133/100/66 Bus Master IDE
    4. 2 x UDMA ATA 100/66 Bus Master IDE
    5. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
    6. S/P DIF input/output (with rear bracket)
    7. 3 x cooling fan pin headers
    8. CD/AUX in
  • Conectores del Panel Trasero
    1. 2 x USB 2.0 ports
    2. 1 x RJ45 LAN port
    3. 1 x LPT
    4. 2 x COM ports
    5. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
    6. PS/2 Keyboard/Mouse connector
    7. 1 x Game/Midi port
  • Monitorización H/W
    1. System health status auto-detect and report by BIOS
    2. H/W detect and report power-in voltage, CPU voltage, and Fan speed
  • Software Incluido
    1. Norton Internet Security
      1. Norton Anti Virus™
      2. Norton™ Personal Firewall
      3. Norton™ Privacy Control
      4. Norton™ Parental Control
      5. Ad Blocking
    2. GIGABYTE Windows Utility Manager
    3. Adobe Acrobat Reader
    4. Adobe Acrobat e-Book Reader
    5. IAA (Intel® Application Accelerator)
    6. Direct X 8.1
  • Diseño
    1. ATX
    2. 30.5cm x 24.4cm
  • Configuración CPU/AGP/DIMM
    1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
    2. AGP Voltage / Clock adjustable via BIOS
    3. DIMM Voltage / Clock adjustable via BIOS
  • Otras Características
    1. GIGABYTE patented DualBIOS™
    2. IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.
    3. Suspend to RAM (STR)
    4. Supports USB KB / MS wake up from S3
  • Otras Descripciones
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Procesador
      1. Socket 478 for Intel® Pentium® 4 with HT Technology
    • Front Side Bus
      1. 533/400 MHz FSB
    • Chipset
      1. Intel® E7205 MCH
      2. Intel® 82801DB ICH4
      3. Intel® Kenai 32 LAN chip
      4. Silicon Image Sil3112A chip
      5. Promise 20276 RAID controller chip
      6. Realtek ALC650E Audio AC'97 CODEC
      7. Super I/O: ITE I/O IT8712F chip
      8. 2 x 4M bit flash ROM
    • Memoria
      1. Type: Dual DDR200/266 ECC support
      2. Max capacity: Up to 4 GB by 4 DIMM slots (Please read FAQ for further information)
    • Puertos de Expansión
      1. 1 x AGP 8x
      2. 5x PCI (PCI 2.2 compliant)
      3. 1 x Dual Power System slot
    • Conectores Internos de E/S
      1. 1 x FDD
      2. 2 x Serial ATA
      3. 2 x UDMA ATA 133/100/66 Bus Master IDE
      4. 2 x UDMA ATA 100/66 Bus Master IDE
      5. 2 x USB 2.0 (4 ports by cable with rear USB bracket)
      6. S/P DIF input/output (with rear bracket)
      7. 3 x cooling fan pin headers
      8. CD/AUX in
    • Conectores del Panel Trasero
      1. 2 x USB 2.0 ports
      2. 1 x RJ45 LAN port
      3. 1 x LPT
      4. 2 x COM ports
      5. Audio (1 x Line-in / 1 x Line-out / 1 x MIC) connector
      6. PS/2 Keyboard/Mouse connector
      7. 1 x Game/Midi port
    • Monitorización H/W
      1. System health status auto-detect and report by BIOS
      2. H/W detect and report power-in voltage, CPU voltage, and Fan speed
    • Software Incluido
      1. Norton Internet Security
        1. Norton Anti Virus™
        2. Norton™ Personal Firewall
        3. Norton™ Privacy Control
        4. Norton™ Parental Control
        5. Ad Blocking
      2. GIGABYTE Windows Utility Manager
      3. Adobe Acrobat Reader
      4. Adobe Acrobat e-Book Reader
      5. IAA (Intel® Application Accelerator)
      6. Direct X 8.1
    • Diseño
      1. ATX
      2. 30.5cm x 24.4cm
    • Configuración CPU/AGP/DIMM
      1. CPU FSB / Multiplier / Vcore Voltage adjustable via BIOS
      2. AGP Voltage / Clock adjustable via BIOS
      3. DIMM Voltage / Clock adjustable via BIOS
    • Otras Características
      1. GIGABYTE patented DualBIOS™
      2. IDE #1-#4, SCSI, LS120, ZIP, CD-ROM and USB bootable.
      3. Suspend to RAM (STR)
      4. Supports USB KB / MS wake up from S3
    • Otras Descripciones
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

      * Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
      * Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
      * Todas las marcas y logos son propiedad de sus propios dueños.
      * Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
