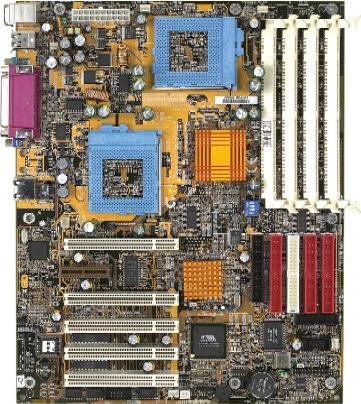

GA-6VTXDR-CLegacy | Software updates supported
- Dual Intel® Pentium III Tualatin processor (Socket 370 / 133MHz FSB / up to 1.4 GHz )
- VIA® Apollo™ VT92C694T, VT82C686B
- Max. 2GB Un-Buffered or Registered (ECC) PC-133 SDRAM Memory in 4 Angle DIMM Slots
- Intel® 82559 10/100 Mps Fast Ethernet Port
- Promise® PDC20267R Dual ATA-100 channels with IDE RAID 0,1, 0+1
- ATX 12" W x 9.6" D Form factor, Standard ATX Power
Specifications
CPU
- Dual Intel® Pentium Ⅲ Tualatin Processors up to 1.4 GHz
- Socket 370/133Mhz FSB
Chipset
- VIA® Apollo™ Pro Family AGP Set
- North Bridge：VT82C694T
- South Bridge：VT82C686B
LAN
- Intel® 82559 10/100 Mbps Ethernet LAN controllers onboard
Video
- ATI Rage XL with 8 MB memory
IDE / SCSI
- Promise® PDC20267R Dual ATA-100 channels
RAID
- IDE RAID 0,1, 0+1
Expansion Slots
- 5 x PCI 32/33Mhz
- 1 AMR
Rear I/O
- 2 x PS/2
- 2 x USB
- 1 x LPT
- 1 x LAN RJ45
