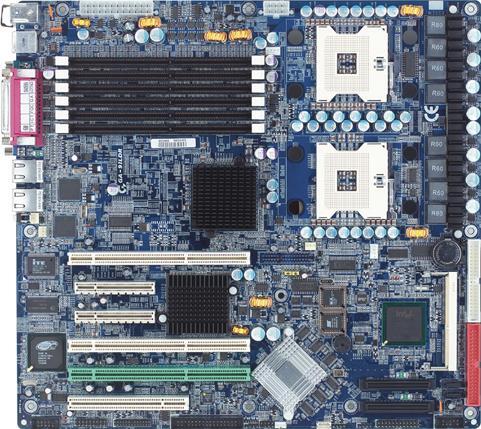

GA-9ILDRLegacy | Software updates supported
- Intel® E7520 MCH, Intel® ICH5R IO controller hub, Intel® 6700 PXH 64Bit PCI-X Hub
- Intel®new dual Xeon™(Nocona) processor with front side bus 800MHz and Hyper Threading technology
- ECC/registered DDR-266/333 memory in 6 DIMMs
- 2 x PCI-E slot by 4 x 1 and by 4 x 1, 1x PCI-X 64bit/133MHz, 2 x PCI-X 64bit/100MHz (Green one support LSI ZCR), 2 x PCI 32bit/33MHz
- LSI®1030 chipset supports RAID 1, RAID 1E
- Support for Zero-Channel RAID with LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
- Dual Broadcom® BCM5721 Gigabit Ethernet
- ITE® IT8712F-A Super I/O
- ATX 12”x13” ETAX form factor
Specifications
CPU
- Supports Dual New Intel® Xeon™(Nocona) CPUs up to 4.0 GHz
- Supports 800 Mhz FSB
- Socket 604
Chipset
- Intel® E7520 MCH
- Intel® ICH5R IO controller hub
- Intel ®6700PXH 64 bit PCI-X hub
LAN
- Dual Broadcom® BSM5721 Gigabit Ethernet
Video
- Build in ATI® Rage XL with 8M SDRAM on board
IDE / SCSI
- Inte® ICH5R chipset
- LSI® 1030 chipset
RAID
- LSI®1030 chipset supports RAID 1, RAID 1E
- Support for Zero-Channel RAID w/ LSI MegaRAID 320-0 ZCR Card (Card NOT included) with Green PCI-X Slot on board
Expansion Slots
- 2 x PCI-X slot supports 64/100M H z (3.3V)
- 1 x PCI-X slot supports 64/133M H z (3.3V)
- 2 x PCI-E slot by 4 x 1 and by 4 x 1
- 1 x PCI slot support 32/33M H z
