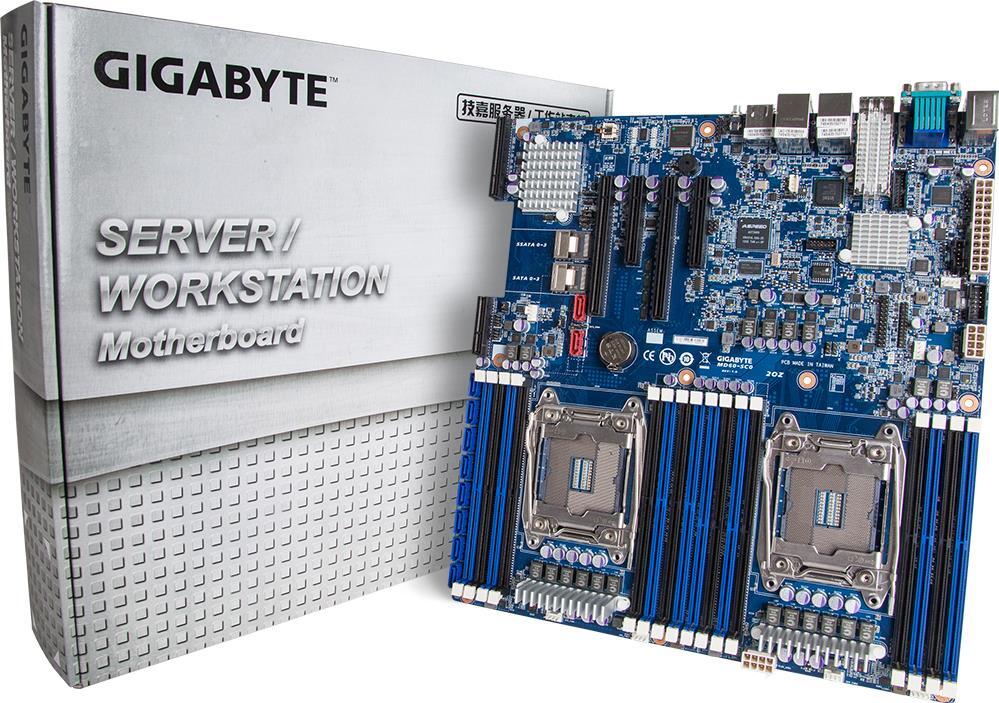

MD60-SC0Legacy | Software updates supported

E-ATX / SSI EEB
305W x 330D (mm)

Intel^® Xeon^® E5-2600 V3 processors
Intel^® Xeon^® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Compatible coolers (for reference only):

• Noctua NH-U9DX i4
• Noctua NH-U12DX i4
• Dynatron R27
• Dynatron R25
• Dynatron R24
• Dynatron T318A
• Dynatron R23
• Dynatron T318
• Dynatron R13
• Dynatron R19
• Dynatron R14
• Dynatron R12

Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel^® C612

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
RDIMM modules up to 32GB supported
LRDIMM modules up to 64GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

1 x QSFP+ LAN port (Intel^® 82599ES) supporting dual 10GbE SFP+ output via splitter cable
1 x 40GbE QSFP+ LAN port (Intel® XL710-AM1) (in option)
2 x GbE LAN ports (Intel^® I350-AM2)
1 x 10/100/1000 management LAN

Integrated in Aspeed^® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

-

8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card)

2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports supporting SATA DOM

Intel^® SATA RAID 0/1/10/5

2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe mezzanine type T (Gen3 x8 bus) slot

or (via PCIe switch):

1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe mezzanine type T (Gen3 x8 bus) slot

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
2 x SATA III 6Gb/s ports
2 x Mini-SAS cable connectors
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
2 x LAN activity LED headers
1 x HDD back plane board header
2 x SAS SGPIO headers
1 x Chassis intrusion header
1 x Management LAN port link LED header
1 x Management LAN port active LED header
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM support jumpers
1 x Clear CMOS jumper
1 x ME update jumper
1 x Clearing supervisor password jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x S3 power on select jumper
1 x Intel / LSI software RAID key jumper
1 x Force to stop FRB timer jumper

6 x USB 3.0
1 x PS/2
1 x VGA
1 x Serial
1 x QSFP+
3 x RJ45
1 x ID button with LED

1 x TPM header

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Windows Server 2016

Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)

SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)

Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)

VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

Aspeed^® AST2400 management controller
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
ŠNon-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x MD60-SC0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm

10 x MD60-SC0
1 x I/O shields
Carton dimensions: 473 x 600 x 495

Retail: 9MD60SC0MR-00
Bulk: 9MD60SC0NR-00
