SPECIFICATIONS

Dimensions (WxHxD, mm)
4U
448 x 175.2 x 900
Motherboard
MZ52-G40
CPU
AMD EPYC™ 7002 series processor family
Dual processors, 7nm
Up to 64-core, 128 threads per processor
TDP up to 240W, cTDP up to 280W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
Total up to 8TB 3DS/ RDIMM/ LRDIMM modules supported
Memory speed: Up to 3200*/ 2933 MHz

- Note:
* Follow BIOS setting and memory QVL list if running 3200 Mhz with 2DPC
LAN
Front Side:
2 x 10Gb/s BASE-T LAN ports (Intel® X550-AT2)
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
8 x 2.5" Gen4 U.2 NVMe/ SATA hot-swappable HDD/SSD bays
SATA
Supported
SAS
N/A
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
8 x SXM4 sockets for NVIDIA HGX™ A100 8-GPU 40GB/80GB module

8 x Low profile Gen4 x16 expansion slots
Internal I/O
1 x TPM header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x HDD access LED
Rear I/O
-
Backplane I/O
8 x 2.5" NVMe/ SATA hybrid ports
Speed and bandwidth: PCIe Gen4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply
3+1 x 3000W redundant PSUs
80 PLUS Platinum

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-240V~/ 15.8A, 50-60Hz

DC Input:
240Vdc/ 14A

DC Output:
- Max 1200W/ 100-127V~
+54V/ 95.6A
+12Vsb/ 3.5A
- Max 3000W/ 200-240V~
+54V/ 178.1A
+12Vsb/ 3.5A

NOTE: The system power supply requires C19 type power cord
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Windows Server 2016 ( X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 ( x64) or later
Red Hat Enterprise Linux 8.0 ( x64) or later

SUSE Linux Enterprise Server 12 SP4 ( x64) or later
SUSE Linux Enterprise Server 15 SP1 ( x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later

Citrix Hypervisor 8.1.0 or later
Weight
Net Weight: 72 kg
Gross Weight: TBD kg
System Fans
11 x 80x80x80mm (17,000rpm)
6 x 40x40x56mm (23,000rpm)
4 x 40x40x28mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Content
1 x G492-ZD0
2 x CPU fan-sinks
1 x Rail kit
Part Numbers
Barebone with rail kit: 6NG492ZD0MR-00-1xx (40GB module)
Barebone with rail kit: 6NG492ZD0MR-00-8xx (80GB module)
- Motherboard: 9MZ52G40NR-00
- Rail kit: 25HB2-A96101-K0R
- CPU fan-sink: 25ST1-44320P-A3R
- Back plane board: 9CBP2023NR-00
- Front panel board: 9CFPG110NR-00
- Power supply: 25EP0-230003-D0S
- C19 type power cord 125V/15A (US): 25CP1-018000-Q0R (an as option)
- C19 type power cord 250V/16A (EU): 25CP3-01830H-Q0R (an as option)
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
*Les performances affichées sont basées sur les informations proposées par les constructeurs de chipsets ou sociétés définissant les caractéristiques des interfaces. Performances pouvant varier selon configuration.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère

SUPPORT

  • Choose your OS
  • Choose your OS
  • Windows Server 2019
  • Windows Server 2016 64bit
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.

What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.

Update CPU ID/Micro codes in new BIOS means?
[1] To support new series of CPUs, or [2] To support the same CPU but with new stepping. CPU support of motherboard is consist of BIOS and hardware design, detail CPU support information please see CPU support list.
  • Choose your OS
  • Choose your OS
  • Windows Server 2019
  • Windows Server 2016 R2 64bit
  • Windows Server 2016 64bit
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows 10 64bit
  • VMware
  • Ubuntu
  • Linux CentOS
  • Linux
Utilitaire
Description
Version
Taille
Date
GSM CLI
Version : 2.1.44
114.54 MB
2021/03/06
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019
Mode d'emploi
Description
Version
Taille
Date

Resources

Video
FRONT

  • img
    SKU
  • img
    I/O
  • img
    Storage
  • img
    Tool-less

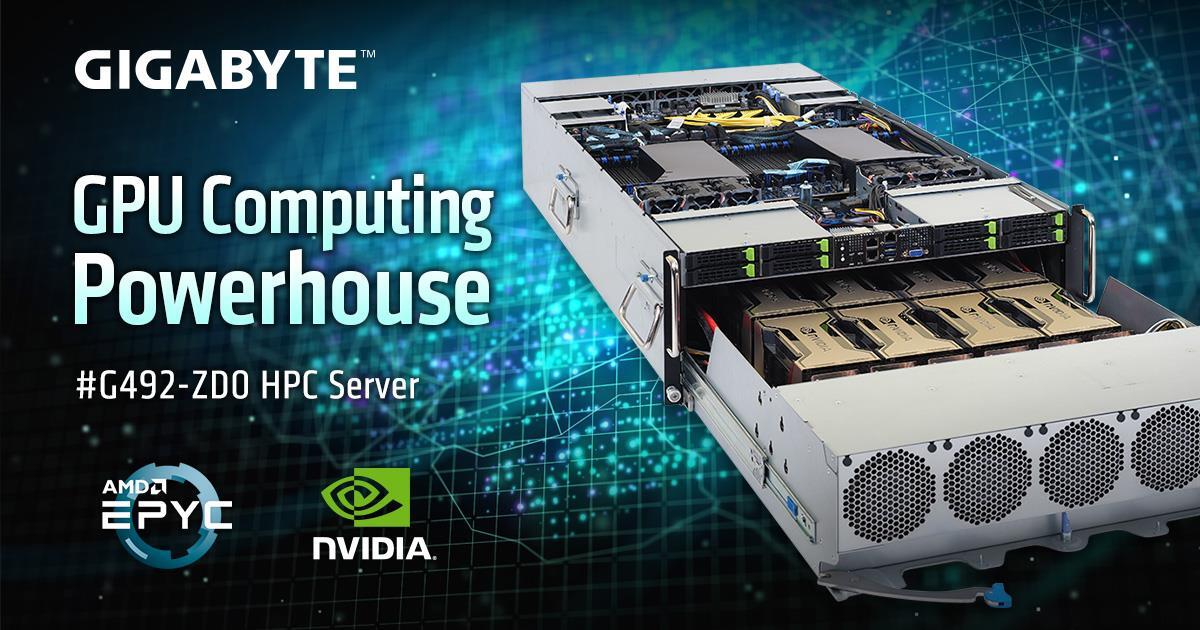

The G492 is divided into two chambers to optimally cool components. The top 1U has the motherboard, CPUs, RAM, and storage. While the bottom 3U is dedicated to the NVIDIA HGX A100 8-GPU with maximum airflow.
TOP

  • img
    Tool-less
  • img
    CPU
  • img
    Memory
  • img
    Thermal
A simple latch at the top allows for easy opening and closing of cover
GPU

  • img
    Fans
  • img
    Air-Cooling
  • img
    Liquid-Cooling
A total of 21 fans were incorporated into the design to ensure optimal cooling for all components.
REAR

  • img
    Power Supply
  • img
    Fans
  • img
    PCIe Cage
Redundancy was built in the design with a 3 + 1 configuration. Should any PSU have issue, the redundant PSU will pick up the slack.
