GB-BACE-3000 (Rev. 1.0)
BRIX / Ultra Compact PC kit
GénéralitésSpécificationsSupportWhere to Buy
1/5
* Product may vary based on local distribution.
- Features 14nm Intel® Celeron N3000 to deliver to the most intuitive and integrated operating systems in the world

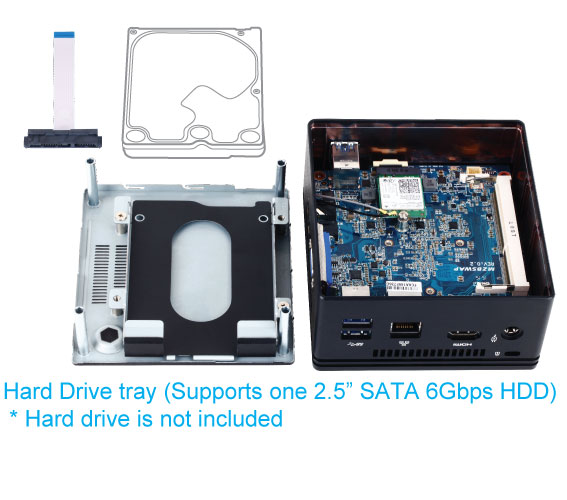

- Supports 2.5” thickness 7.0/9.5mm Hard Drives (1 x 6Gbps SATA3)
- Ultra compact PC design – 0.69L (56.1x 107.6 x 114.4mm)

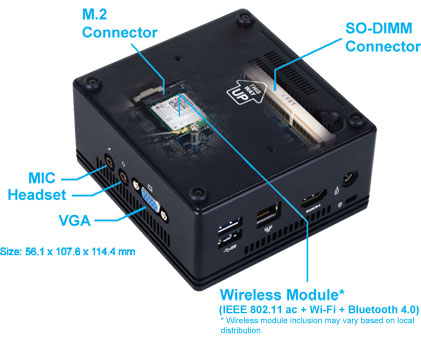

- 1x SO-DIMM DDR3L 1.35V Slots (1066/1600 MHz)
- Intel® IEEE 802.11 ac, Dual Band Wi-Fi & Bluetooth 4.0 NGFF M.2 card

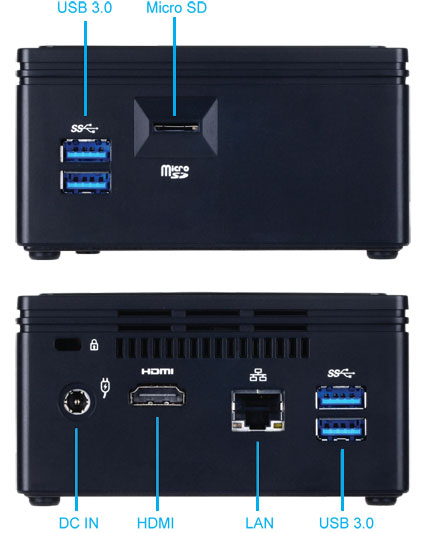

- Supports dual displays via a VGA and a HDMI port
- Gigabit LAN
- Audio jack (Headphone/MIC)

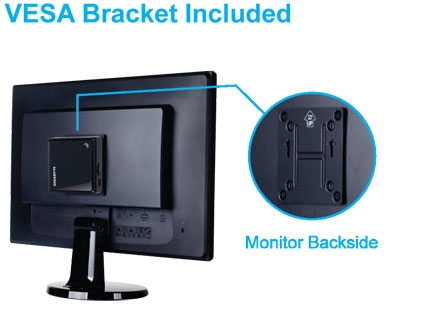

- VESA mounting bracket (75 x 75mm + 100 x 100mm)
- Supports Fan less design * Wireless module inclusion may vary based on local distribution.
