B550M AORUS ELITE AX (Rev. 1.5)

Rev. 1.5Rev. 1.3Rev. 1.4
B550M AORUS ELITE AX
CaractéristiquesSpécificationsSupportActualité / RécompensesGalerie de photosWhere to Buy

Caractéristiques

SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
COOLING
LIGHTING
AUDIO
ULTRA DURABLE
GIGABYTE EXCELLENCE
SPEC OVERVIEW
PERFORMANCE
CONNECTIVITY
COOLING
LIGHTING
AUDIO
ULTRA DURABLE
GIGABYTE EXCELLENCE

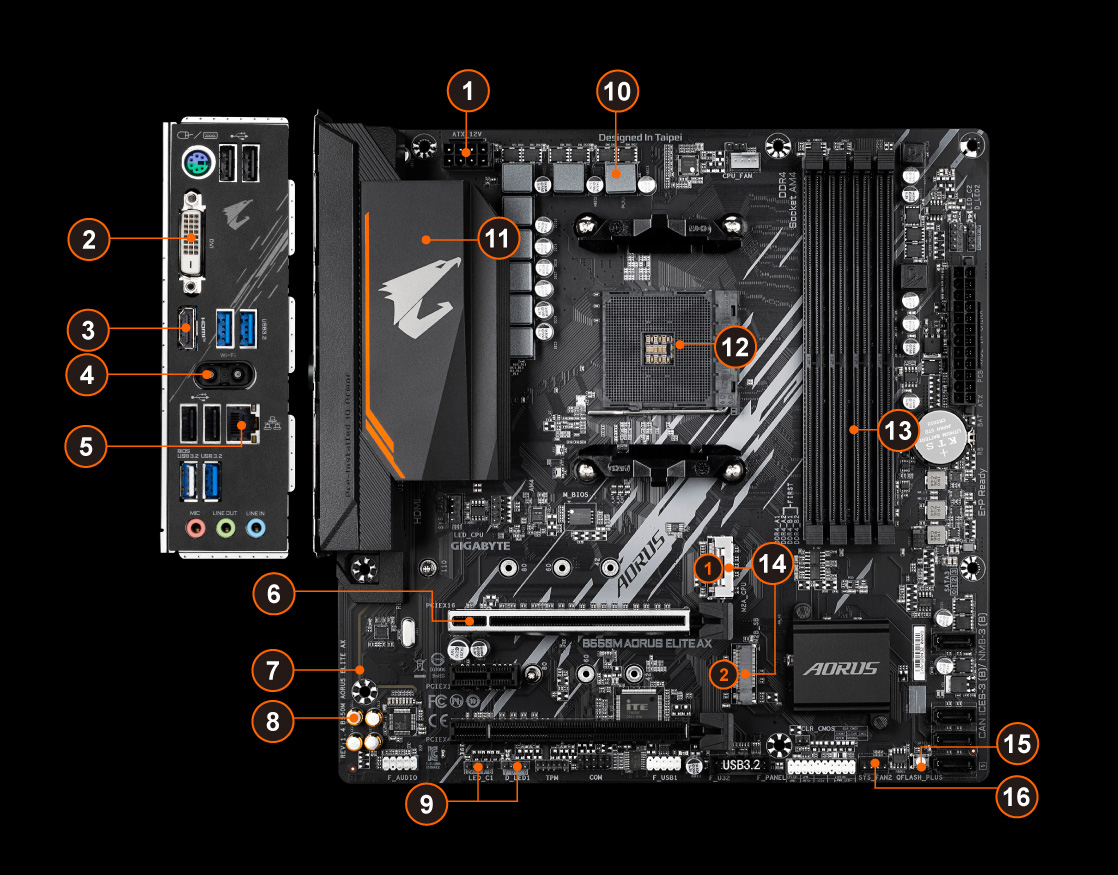

1
Solid Pin Power Connector
2

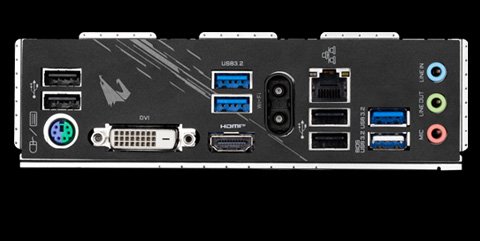

DVI
3
HDMI
3
Wi-Fi 6E 802.11ax
WIFI EZ-Plug
4
Realtek GbE LAN
5
Ultra Durable PCIe Slot
  1. PCIe® 4.0 Slot
  2. Running 1* x16
6
Audio Noise Guard
7
High-End Audio Capacitors
8
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*3
10
5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
11

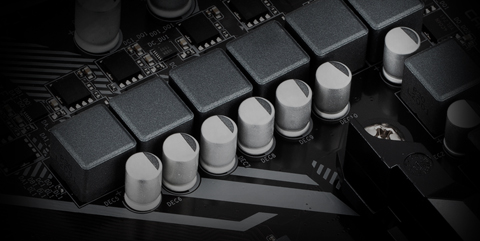

Enlarged MOSFET Heatsink
12
Supports 3rd Gen AMD Ryzen™ Processors
13
Dual Channel DDR4, 4 DIMMs
14
Dual M.2 Connectors
1. 22110 M.2
  1. PCIe 4.0 M.2 Connector
  2. NVMe PCIe 4.0/3.0 x4 and SATA Mode (from CPU)
2. 2280 M.2
  1. NVMe PCIe 3.0 x2 and SATA Mode (from Chipset)
15
Q-Flash Plus Button
16
Smart Fan 6 + FAN STOP
  1. 3 Fan Connectors
  2. 5 Temperature Sensors
PERFORMANCE

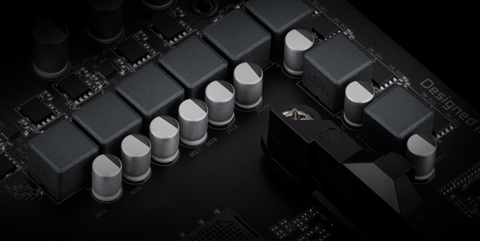

5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

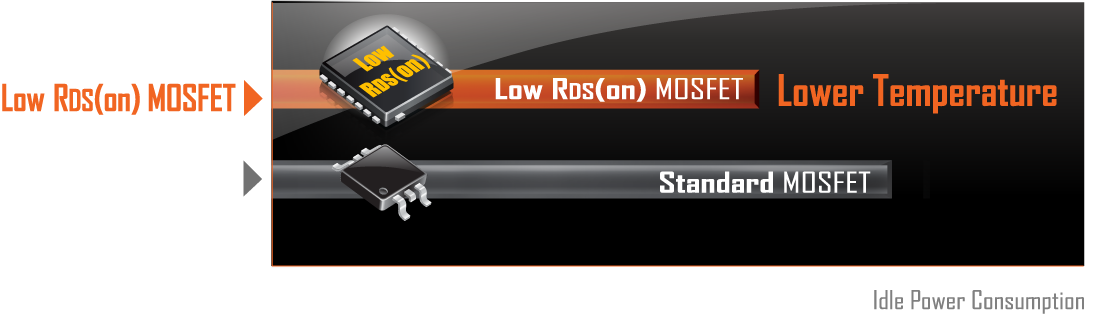

Benefits of Low RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
PCIe 4.0* Hardware Design

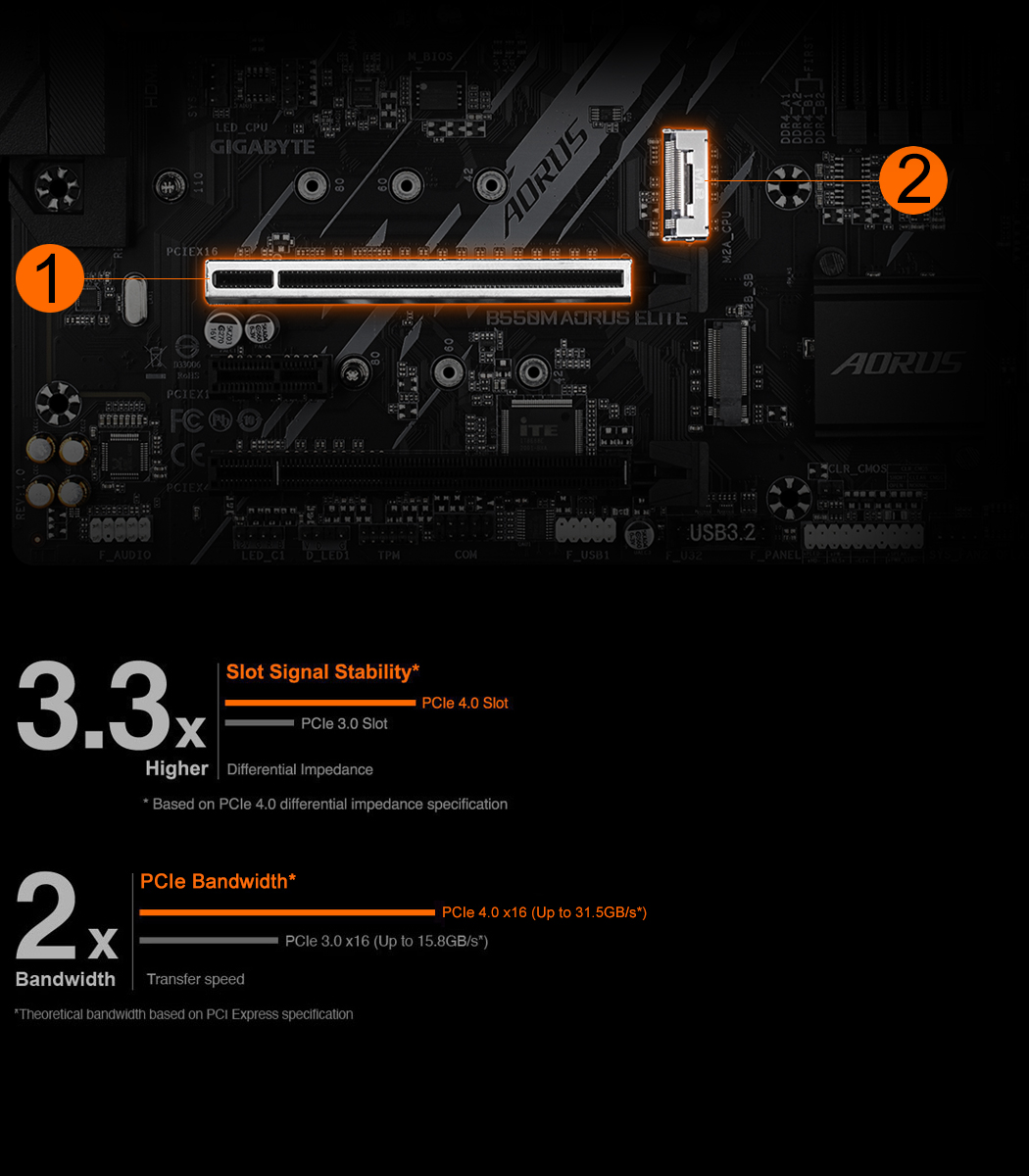

1. PCIe 4.0 Slot
PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
2. M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with Lower impedance.
* Product uses PCIe 4.0 grade material, actual support varies by hardware configuration.
CONNECTIVITY

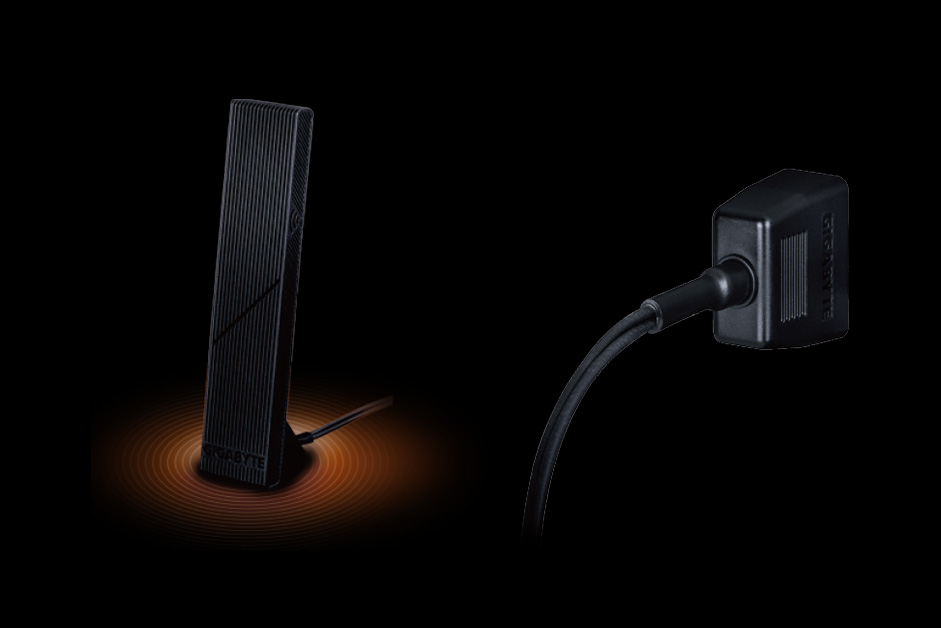

WiFi 6E 802.11ax + BT 5.4 Module

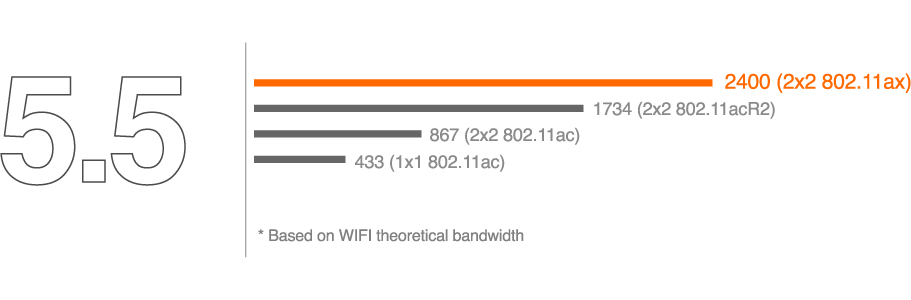

Wireless solution 802.11ax WIFI 6E with new dedicated 6GHz band, enables gigabit wireless performance and provides smooth video streaming, better gaming experience. Moreover, Bluetooth 5.4 provides 4X range over BT 4.2 and with faster transmission.
Benefit of WiFi 6E
  1. Dedicated spectrum in 6GHz band for less interference
  2. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
  3. Network efficiency increase for better user experience

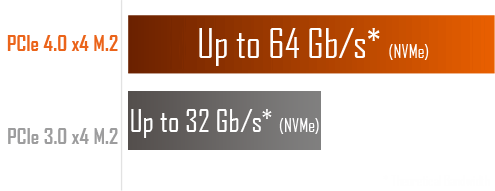

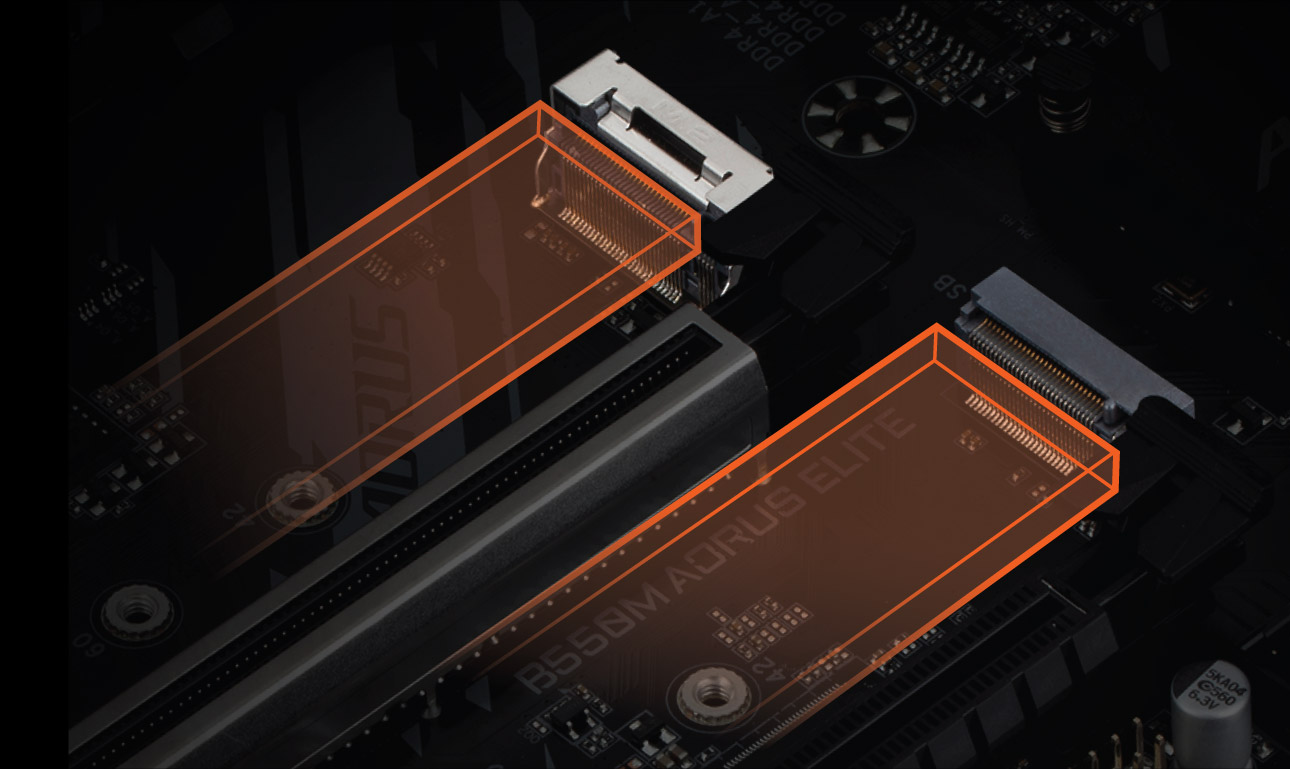

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors
With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

*Actual support may vary by CPU.



GbE LAN
Gigabit Ethernet (GbE) LAN provides significantly faster data transfer speeds of up to 1 Gbps, which is ten times faster than traditional 100 Mbps Fast Ethernet, enabling smoother streaming, faster file transfers, and more responsive network applications.

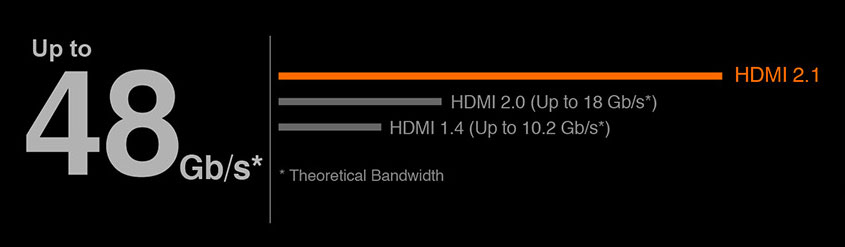

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support
HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Note: Only New Gen AMD Ryzen™ with Radeon™ Graphics processors support displaying function.

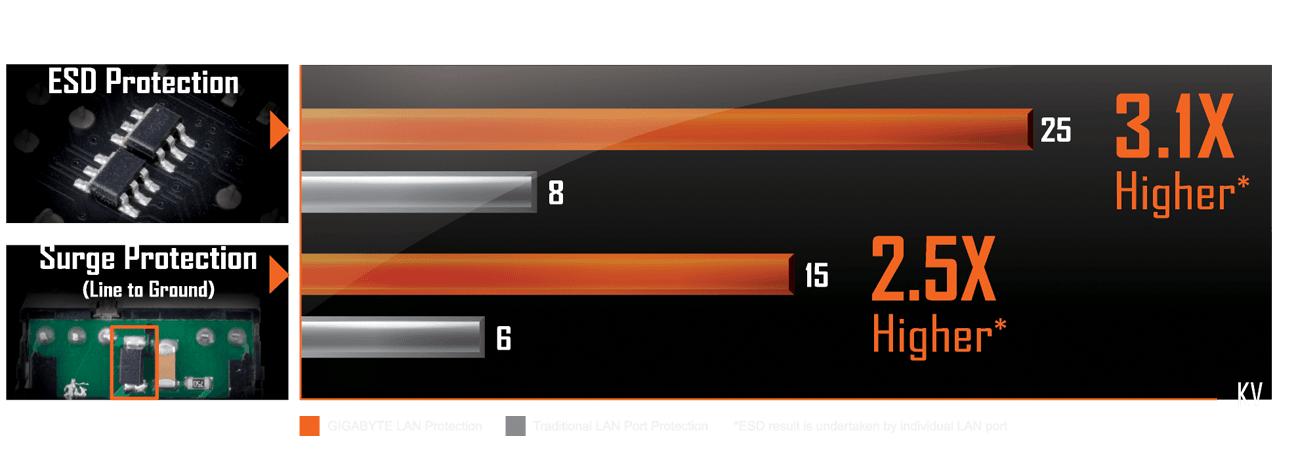

The Industry's Leading LAN Static-Electricity & Surge Protection
GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
COOLING

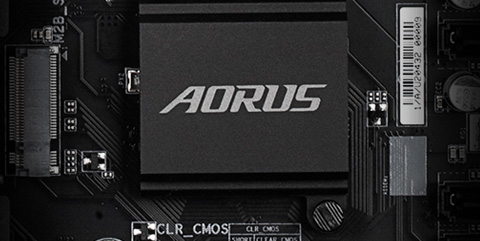

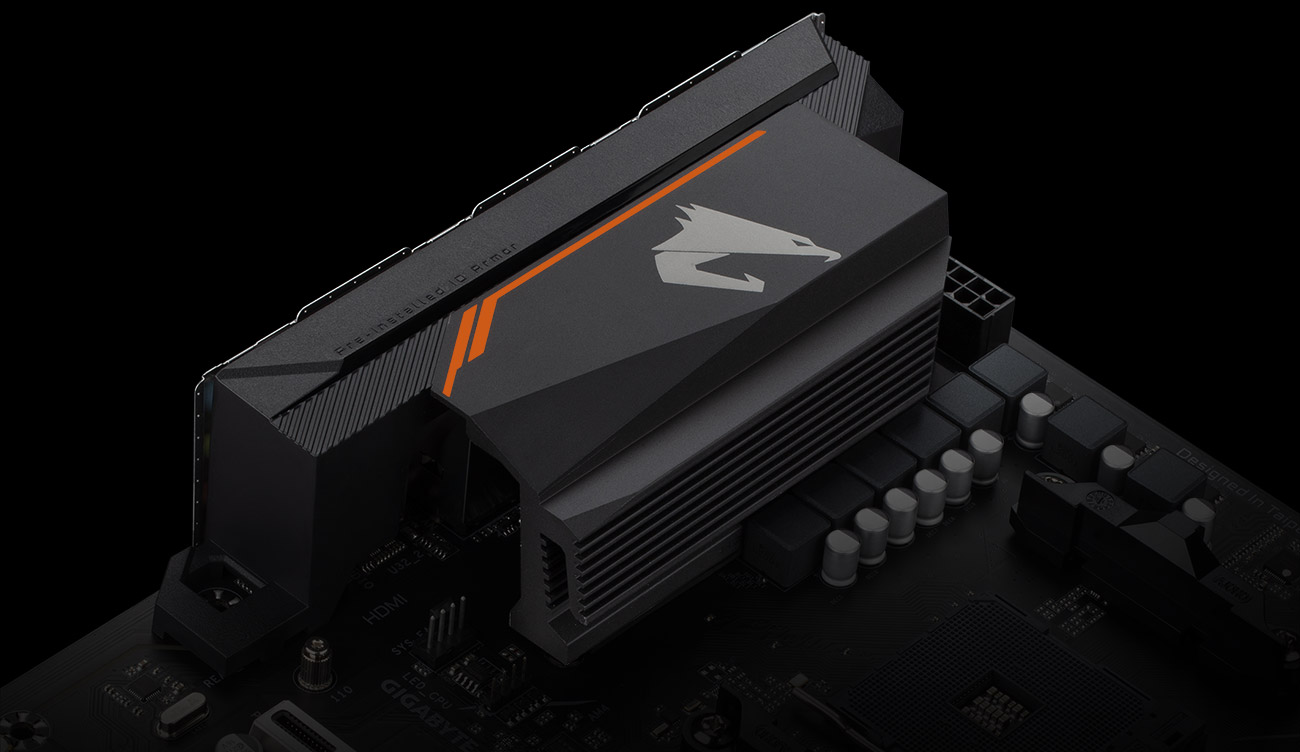

Enlarged MOSFET Heatsink
  • Enlarged MOSFET Heatsink ensures lower temperature.
  • Pre-installed IO Shield for easier assembly.

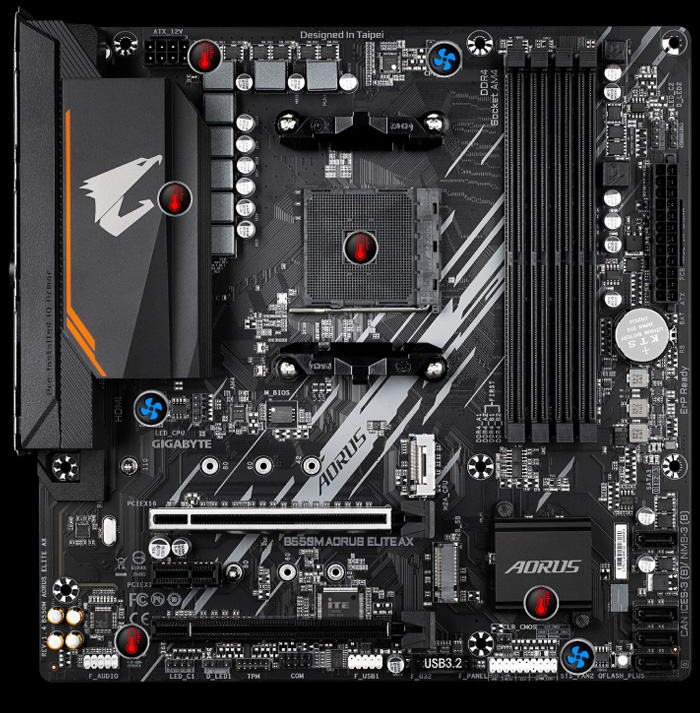

    • Smart Fan 6

    Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

    Fan Connectors
    Internal Temperature Sensors
    Different models have different number of fan pin headers and temperature sensors. Smart Fan 6 function may vary by model.
    Temperature Sensors
    Hybrid Fan Headers
    ■ High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
    ■ Precision Control: Multiple temperature/fan speed control points for precise fan curve
    ■ Dual Curve Mode: Slope/Stair dual mode for different user scenario
    ■ Fan Stop: Fan can stop completely below users' specified temperature point

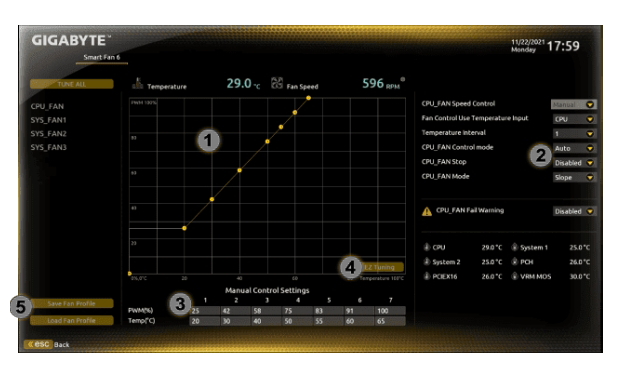

    Smart Fan 6 BIOS UI
    1. Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
    2. Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
    3. Manual Input: For advanced users, we provide fan speed manual input for more precise control.
    4. EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
    5. Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.
    Note: The picture is for reference and may vary by model.
    LIGHTING
    RGB FUSION 2.0

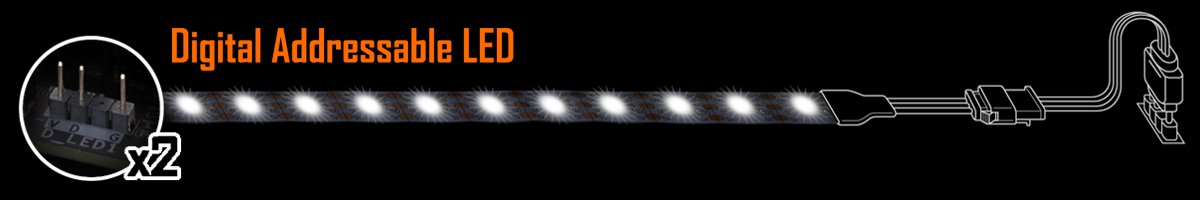

    With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

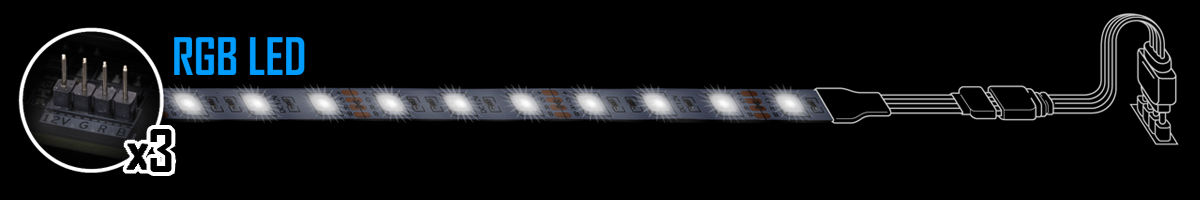

    With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

    * The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.


    AUDIO

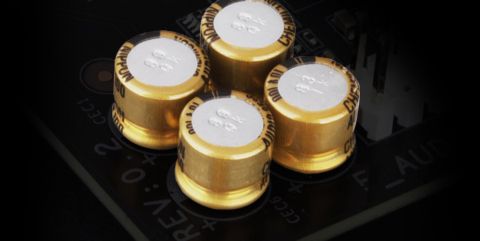

    High-End Audio Capacitors
    GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

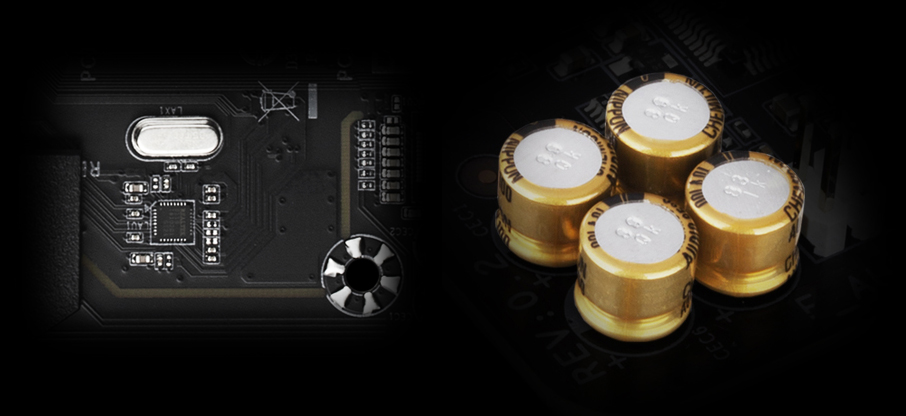

    Audio Noise Guard
    GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
    ULTRA DURABLE
    Q-Flash Plus

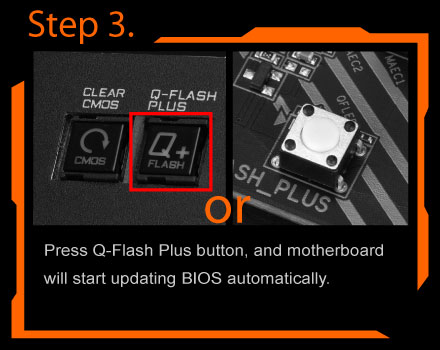

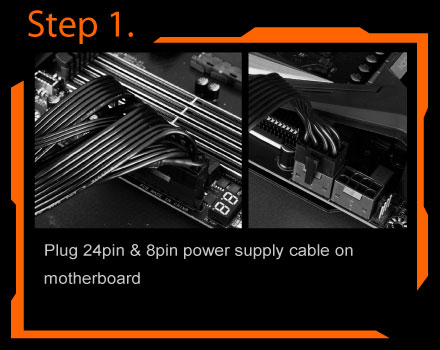

    Update the BIOS easily without installing the CPU, memory and graphics card.

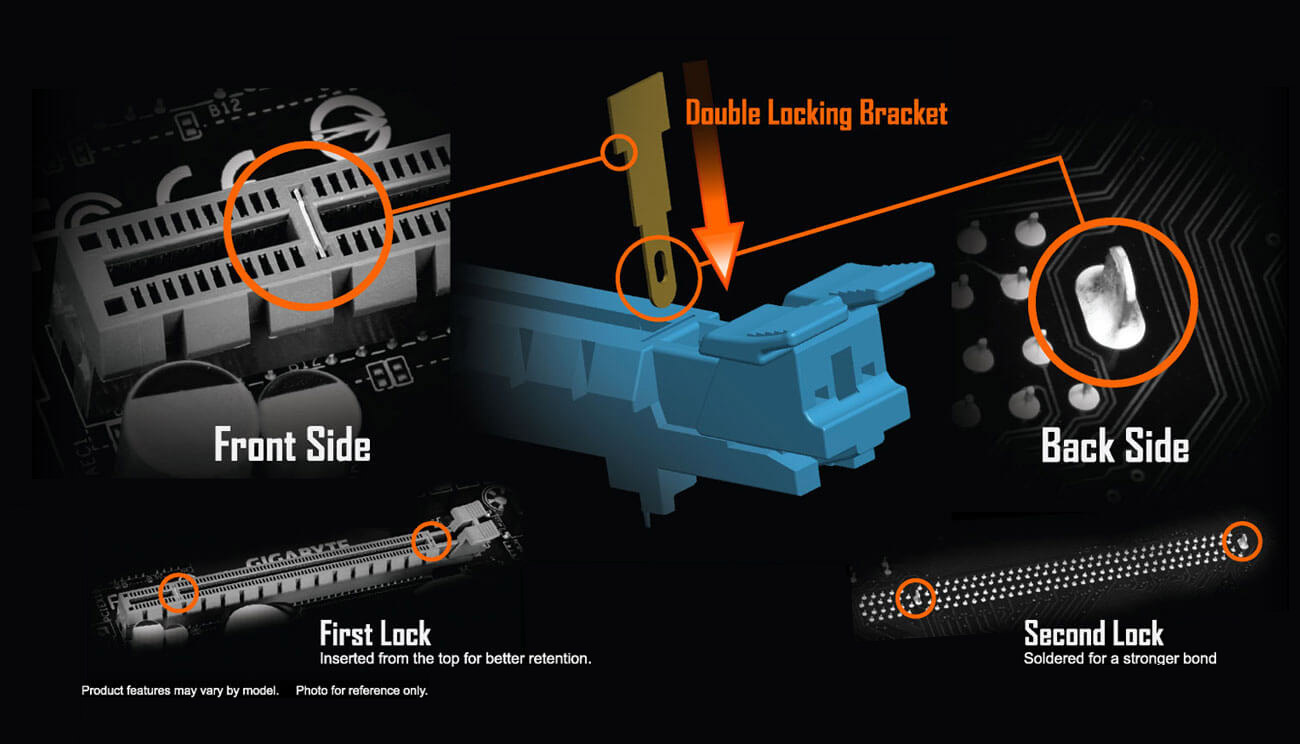

    GIGABYTE Patented Double Locking Bracket

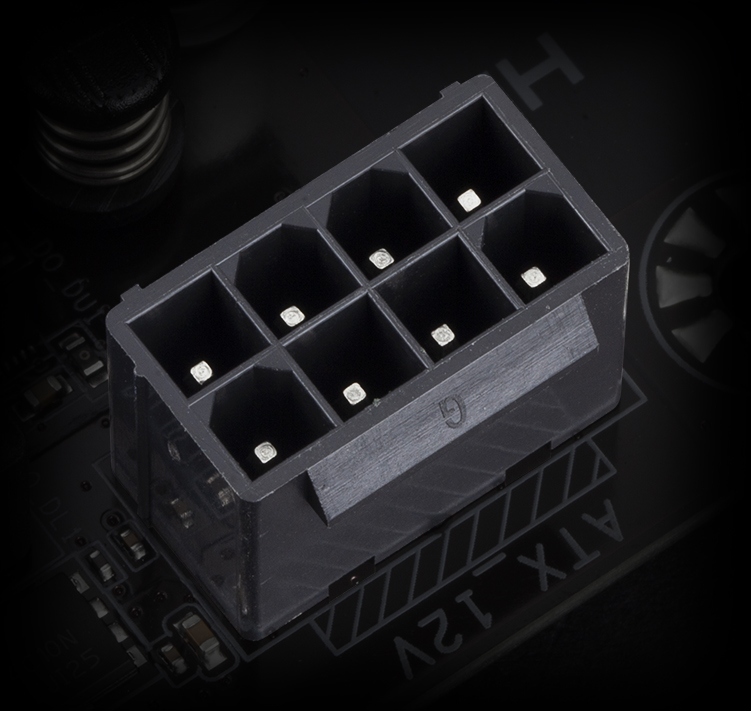

    Solid Pin Power Connectors
    B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.

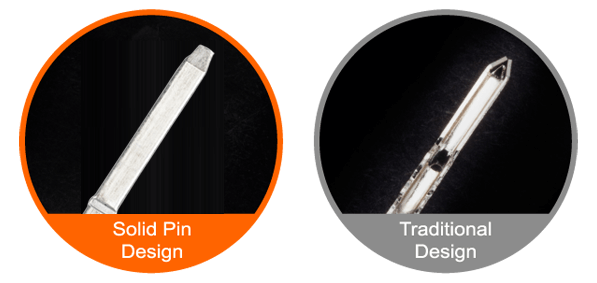

    Solid Pin Power connector advantages
    1. Larger contact area for electricity
    2. More metal quantity to sustain higher power and generated heat
    3. Ultra durable and longer lifespan
    START SULFURIZATION PROTECTION

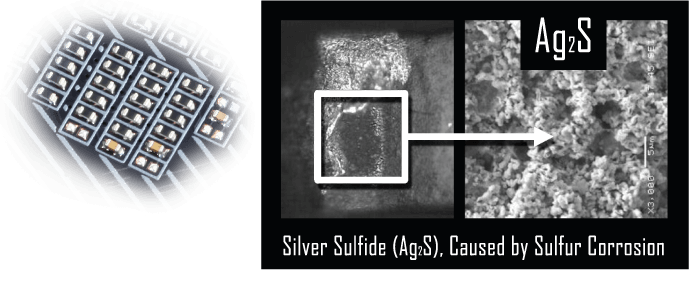

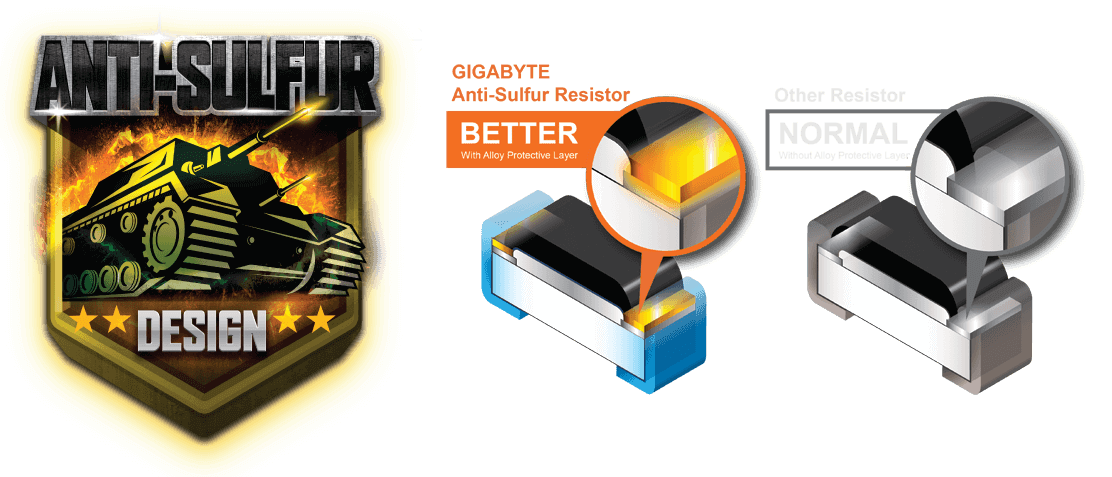

    Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

    GIGABYTE EXCELLENCE

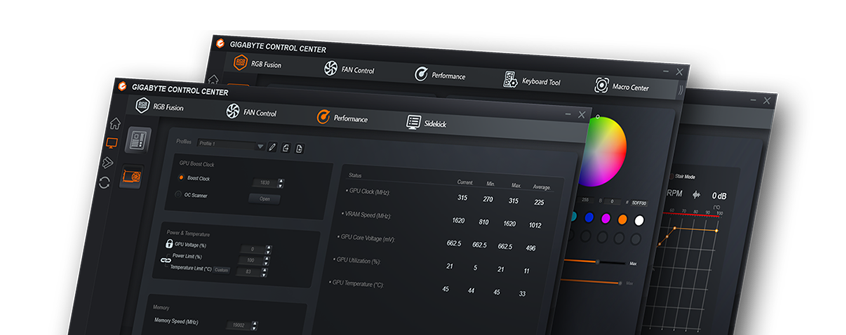

    GIGABYTE Control Center
    GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

    1. Unified software platform for all Gigabyte supported products
    2. Intuitive user interface for an eased experience
    3. Modularized control components only for installed hardware
    4. Auto update function to keep system up to date and support future products

    LEARN MORE
