1. Ultra Durable 3 Classic (CPU VRM)Technology with copper cooled quality for lower working temperature
  2. Revolution energy saving design with DES technology featuring hardware based Dynamic 4-Gear switching
  3. Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1600 (O.C.) MHz
  4. Dual channel DDR2 1200+ for remarkable system performance
  5. Ultimate graphics performance with PCI-E x16 2.0 interface
  6. Features high speed Gigabit Ethernet
  7. 8 channel High definition audio
  8. Meet European Union ErP(Energy-related Products) requirement
  • Introduction

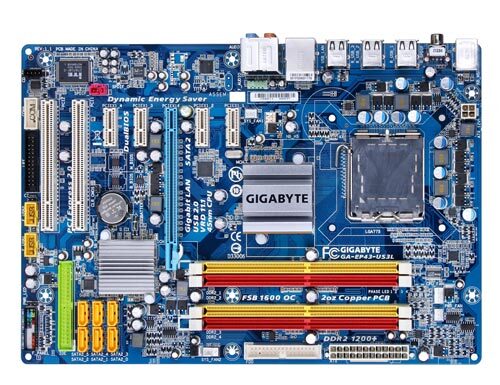

    The GA-EP43-US3L introduces revolutionary GIGABYTE Ultra Durable 3 classic (CPU VRM) technology featuring a 2 oz copper PCB to help reduce system temperature and dramatically enhance performance. Based on the new Intel P43 chipset, GA-EP43-US3L delivers a record setting 1600MHz Front Side Bus by overclocking for the latest Intel® Core 2™ multi-core processors, including 45nm CPUs. With supporting dual channel DDR2 up to 1200+ MHz, GA-EP43-US3L motherboard provides the highest levels of performance and maximum overclocking potential. GA-EP43-US3L delivers several advanced GIGABYTE innovations including the DES Advanced, Ultra Durable 3 classic (CPU VRM), DualBIOS design which provides optimized power savings, ultra cooling and ultra safe data protection.
  • Windows® 7 WHQL Certified
    The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future...more


  • Ultra Durable 3 – Classic (CPU VRM)


    GIGABYTE Ultra Durable 3 series motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking.GIGABYTE Ultra Durable 3 Classic (CPU VRM) motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors around CPU VRM boasting an operational life time of more than 50,000 hours, and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic (CPU VRM) motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


  • Dual Channel DDR2 1200+
    Experience the advanced technology of DDR2 1200+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1200+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • Interface graphique PCI-E 2.0
    L'interface PCI-E 2.0 double la bande passante de la norme PCI-Express standard, en passant de 2.5 Gbit/s à 5 Gbit/s, un connecteur x32 pouvant transférer jusqu'à 16 GB/s de données.


  • Dynamic Energy Saver Advanced
    GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching. With support for VRD 11.1, GIGABYTE's DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

    GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
    * The 4-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.


  • Overclocking sans effort en un click !
    GIGABYTE quick boost propose 3 niveaux de performances pour votre cpu, en un simple click vous pourrez choisir le profil de votre choix et bénéficier d'un overclocking rapide et sans effort !
  • EasyTune6
    Logiciel de gestion et de tweaking de votre système


  • DDualBIOS™ - Protection Double Bios
    DualBIOS™ - Protection Double Bios

  • Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
  • Produit à la norme ErP
    l'ErP (Energy releated Products) est une directive faisant partie d'un ensemble de normes et régulations européennes visant à réduire l'impact négatif des composants electroniques sur l'environnement pendant leur cycle de vie. Chez GIGABYTE, nous dédions l'ensemble de notre travail à la cause environnementale et sommes fiers de faire partie des constructeurs leader dévelopant des technologies de pointe respectant la biosphère. En proposant des innovations telles que la solution DES, GIGABYTE vous offre d'ores et déjà un ensemble de produits bâtissant un avenir plus vert !
