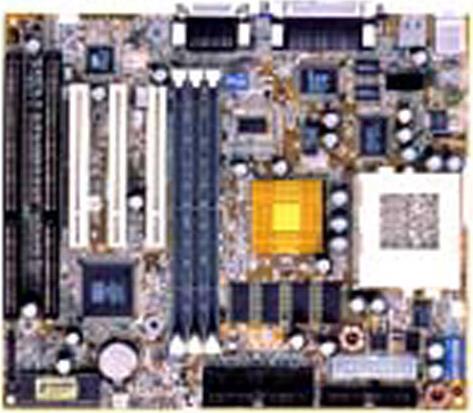

GA-5SMM

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Intel, AMD K6-3, IBM/Cyrix, IDT Processor 100~550 MHz
    2. Socket 7 for future Processor support
    3. 66/75/83/90/95/100/105*/112*/124*/133* MHz System Bus
    4. CPU Voltage 1.3V~3.5V
    5. Clock multiplier 1.5/2.0 ...... / 5.5
  • Chipset
    1. SiS 530 & 5595 AGPset
    2. iTE 8661 I/Oset
    3. Chipset with Built-in Enhanced Graphics Engine (share or 4/8 MB SDRAM)
    4. ESS Solo-1 PCI Sound chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Socket
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72 bits)
  • Expansion Slots
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 2 x ISA Slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM & 1 x PS/2 by cable (optional)
    6. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS 120, ZIP & CD-ROM bootable
  • Form Factor
    1. Micro ATX, 4 layer PCB (24.5*21.0 cm)
  • Driver
    1. SiS Ultra DMA 33/66 Bus Master IDE Driver
    2. SiS AGP GART VxD & Power Management Controller Driver
    3. SiS Patch 95 & SiS 530 AGP Driver
    4. SiS Windows 98 IRQ Routing Driver
    5. ESS Solo-1 PCI Sound Driver
    6. TREND MICRO PC-cillin 98 Anti-Virus Utility (scan only)
  • Other Features
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem Wake On
    3. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. Stop CPU Fan when entering suspend mode
  • CPU
    1. Intel, AMD K6-3, IBM/Cyrix, IDT Processor 100~550 MHz
    2. Socket 7 for future Processor support
    3. 66/75/83/90/95/100/105*/112*/124*/133* MHz System Bus
    4. CPU Voltage 1.3V~3.5V
    5. Clock multiplier 1.5/2.0 ...... / 5.5
  • Chipset
    1. SiS 530 & 5595 AGPset
    2. iTE 8661 I/Oset
    3. Chipset with Built-in Enhanced Graphics Engine (share or 4/8 MB SDRAM)
    4. ESS Solo-1 PCI Sound chip
  • Memory
    1. 8MB to 768MB DRAM size
    2. 3 x 3.3V DIMM Socket
    3. Supports 8/16/32/64/128/256 MB EDO/SDRAM DIMM Module
    4. Supports ECC Type DIMM Module (72 bits)
  • Expansion Slots
    1. 3 x PCI Slot Supports 33MHz & PCI 2.2 compliant
    2. 2 x ISA Slot
  • I/O Controller
    1. 2 x Ultra DMA 33/66 Bus Master IDE ports on board
    2. 1 x FDD, 1 x COM, 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystic, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 2 x USB ports on board
    5. 1 x COM & 1 x PS/2 by cable (optional)
    6. IrDA TX / RX Header (optional)
  • BIOS
    1. 2Mbit Flash RAM
    2. AWARD BIOS with Enhanced ACPI Feature for PC98/Win98 Compliance, Green, PnP, DMI, INT 13 (>8.4GB) & Anti-Virus functions
    3. IDE#1~#4, SCSI, LS 120, ZIP & CD-ROM bootable
  • Form Factor
    1. Micro ATX, 4 layer PCB (24.5*21.0 cm)
  • Driver
    1. SiS Ultra DMA 33/66 Bus Master IDE Driver
    2. SiS AGP GART VxD & Power Management Controller Driver
    3. SiS Patch 95 & SiS 530 AGP Driver
    4. SiS Windows 98 IRQ Routing Driver
    5. ESS Solo-1 PCI Sound Driver
    6. TREND MICRO PC-cillin 98 Anti-Virus Utility (scan only)
  • Other Features
    1. Supports Wake On LAN Header (WOL)
    2. Supports Internal/External modem Wake On
    3. Poly fuse for keyboard overcurrent protection
  • Power
    1. ATX Power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem (COM A or B) & Switch
    3. Power-off by Windows 98 Shut down & Switch
    4. Stop CPU Fan when entering suspend mode
