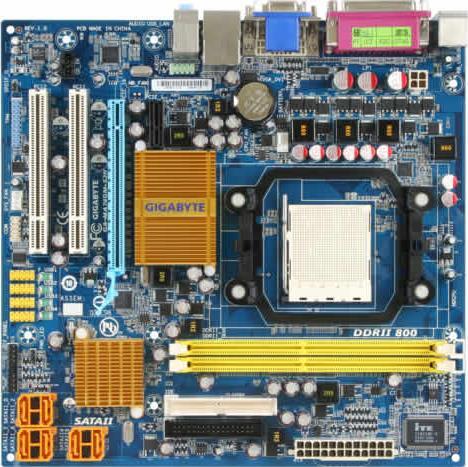

GA-MA74GM-S2H (Rev. 1.x)

Rev. 1.xRev. 2.0Rev. 3.0Rev. 4.0Rev. 4.1Rev. 4.3
AMD 740G + SB700 Chipset
OverviewSpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • Επεξεργαστής
    1. Support for Socket AM3/ AM2+/ AM2 processors: AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™ processor
    (Note) If you install AMD AM3/AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM3/AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • Hyper Transport Bus
    1. 2000 MT/s
  • Chipset
    1. North Bridge: AMD 740G
    2. South Bridge: AMD SB700
  • Μνήμη
    1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
    2. Dual channel memory architecture
    3. Support for DDR2 800/667 MHz memory modules
  • Κύκλωμα Γραφικών
    1. Integrated in the North Bridge
  • Ήχος
    1. Realtek ALC888 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel (Note 2)
    4. Support for S/PDIF Out
    5. Support for CD In
  • LAN
    1. Realtek 8111C chip (10/100/1000 Mbit)
  • Υποδοχές επέκτασης
    1. 1 x PCI Express x16 slot
    2. 1 x PCI Express x1 slot
    3. 2 x PCI slots
  • Interface αποθήκευσης
  • South Bridge:
    1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
    2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
    3. Support for SATA RAID 0, RAID 1 and RAID 10
    iTE IT8718 chip:
    1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
  • USB
  • Integrated in the South Bridge
    1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
  • Εσωτερικές υποδοχές
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 1 x floppy disk drive connector
    4. 1 x IDE connector
    5. 6 x SATA 3Gb/s connectors
    6. 1 x CPU fan header
    7. 1 x system fan header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x CD In connector
    11. 1 x S/PDIF Out header
    12. 4 x USB 2.0/1.1 headers
    13. 1 x Serial port header
    14. 1 x Trusted Platform Module (TPM) header
    15. 1 x chassis intrusion header
    16. 1 x power LED header
  • Οπίσθιες υποδοχές
    1. 1 x PS/2 keyboard port
    2. 1 x Parallel port
    3. 1 x D-Sub port
    4. 1 x DVI-D port (Note 3)
    5. 1 x HDMI port
    6. 1 x coaxial S/PDIF Out connector
    7. 4 x USB 2.0/1.1 ports
    8. 1 x RJ-45 port
    9. 3 x audio jacks (Line In/Line Out/Microphone)
  • I/O Ελεγκτής
    1. ITE IT8718 chip
  • Κύκλωμα ελέγχου
  • System voltage detection
    1. CPU/System temperature detection
    2. CPU/System fan speed detection
    3. CPU overheating warning
    4. CPU/System fan fail warning
    5. CPU/System fan speed control (Note 4)
  • BIOS
    1. 1 x 8 Mbit flash
    2. Use of licensed AWARD BIOS
    3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
  • Άλλα χαρακτηριστικά
    1. Support for @BIOS
    2. Support for Download Center
    3. Support for Q-Flash
    4. Support for EasyTune (Note 5)
    5. Support for Xpress Install
    6. Support for Xpress Recovery2
    7. Support for Virtual Dual BIOS
  • Bundled Software
    1. Norton Internet Security (OEM version)
  • Λειτουργικό Σύστημα
    1. Support for Microsoft® Windows Vista/ XP
  • Τύπος μητρικής
    1. Micro ATX Form Factor; 24.4cm x 23.4cm
  • Note
  • (Note 1) Due to Windows® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
    (Note 2) To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
    (Note 3) The DVI-D port does not support D-Sub connection by adapter.
    (Note 4) Whether the CPU/System fan speed control function is supported will depend on the CPU you install.
    (Note 5) Available functions in Easytune may differ by motherboard model.
  • Παρατήρηση
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
    • Επεξεργαστής
      1. Support for Socket AM3/ AM2+/ AM2 processors: AMD Phenom™FX processor/ AMD Phenom™ processor/ AMD Athlon™ 64 FX processor/AMD Athlon™ 64 X2 Dual-Core processor/AMD Athlon™ 64 processor/AMD Sempron™ processor
      (Note) If you install AMD AM3/AM2+ CPU on AM2 motherbord, the system bus speed will downgrade from HT3.0(5200MHz) to HT1.0(2000 MT/s) spec; however, the frequency of AM3/AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
    • Hyper Transport Bus
      1. 2000 MT/s
    • Chipset
      1. North Bridge: AMD 740G
      2. South Bridge: AMD SB700
    • Μνήμη
      1. 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)
      2. Dual channel memory architecture
      3. Support for DDR2 800/667 MHz memory modules
    • Κύκλωμα Γραφικών
      1. Integrated in the North Bridge
    • Ήχος
      1. Realtek ALC888 codec
      2. High Definition Audio
      3. 2/4/5.1/7.1-channel (Note 2)
      4. Support for S/PDIF Out
      5. Support for CD In
    • LAN
      1. Realtek 8111C chip (10/100/1000 Mbit)
    • Υποδοχές επέκτασης
      1. 1 x PCI Express x16 slot
      2. 1 x PCI Express x1 slot
      3. 2 x PCI slots
    • Interface αποθήκευσης
    • South Bridge:
      1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
      2. 6 x SATA 3Gb/s connectors supporting up to 6 SATA 3Gb/s devices
      3. Support for SATA RAID 0, RAID 1 and RAID 10
      iTE IT8718 chip:
      1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive
    • USB
    • Integrated in the South Bridge
      1. Up to 12 USB 2.0/1.1 ports (4 on the back panel, 8 via the USB brackets connected to the internal USB headers)
    • Εσωτερικές υποδοχές
      1. 1 x 24-pin ATX main power connector
      2. 1 x 4-pin ATX 12V power connector
      3. 1 x floppy disk drive connector
      4. 1 x IDE connector
      5. 6 x SATA 3Gb/s connectors
      6. 1 x CPU fan header
      7. 1 x system fan header
      8. 1 x front panel header
      9. 1 x front panel audio header
      10. 1 x CD In connector
      11. 1 x S/PDIF Out header
      12. 4 x USB 2.0/1.1 headers
      13. 1 x Serial port header
      14. 1 x Trusted Platform Module (TPM) header
      15. 1 x chassis intrusion header
      16. 1 x power LED header
    • Οπίσθιες υποδοχές
      1. 1 x PS/2 keyboard port
      2. 1 x Parallel port
      3. 1 x D-Sub port
      4. 1 x DVI-D port (Note 3)
      5. 1 x HDMI port
      6. 1 x coaxial S/PDIF Out connector
      7. 4 x USB 2.0/1.1 ports
      8. 1 x RJ-45 port
      9. 3 x audio jacks (Line In/Line Out/Microphone)
    • I/O Ελεγκτής
      1. ITE IT8718 chip
    • Κύκλωμα ελέγχου
    • System voltage detection
      1. CPU/System temperature detection
      2. CPU/System fan speed detection
      3. CPU overheating warning
      4. CPU/System fan fail warning
      5. CPU/System fan speed control (Note 4)
    • BIOS
      1. 1 x 8 Mbit flash
      2. Use of licensed AWARD BIOS
      3. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
    • Άλλα χαρακτηριστικά
      1. Support for @BIOS
      2. Support for Download Center
      3. Support for Q-Flash
      4. Support for EasyTune (Note 5)
      5. Support for Xpress Install
      6. Support for Xpress Recovery2
      7. Support for Virtual Dual BIOS
    • Bundled Software
      1. Norton Internet Security (OEM version)
    • Λειτουργικό Σύστημα
      1. Support for Microsoft® Windows Vista/ XP
    • Τύπος μητρικής
      1. Micro ATX Form Factor; 24.4cm x 23.4cm
    • Note
    • (Note 1) Due to Windows® XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
      (Note 2) To configure 7.1-channel audio, you need connect with the port of HD Audio standard via front panel and enable the multi-channel audio feature through the audio driver.
      (Note 3) The DVI-D port does not support D-Sub connection by adapter.
      (Note 4) Whether the CPU/System fan speed control function is supported will depend on the CPU you install.
      (Note 5) Available functions in Easytune may differ by motherboard model.
    • Παρατήρηση
      1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
      2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
