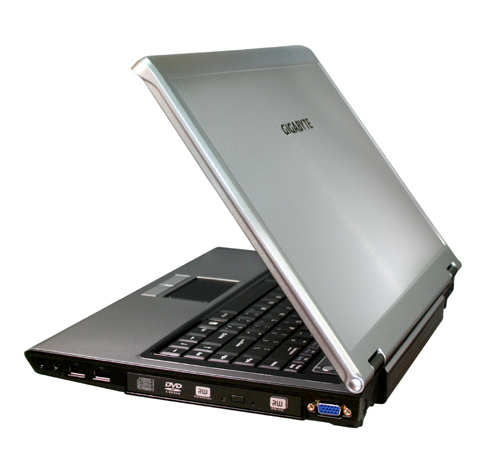

W552U
產品規格
- 作業系統
- 中央處理器
- Intel® Core™ 2 Duo Processor ( 65nm, FSB 667MHz, L2 cache 2MB or 4MB)
Intel® Core™ Duo Processor (65nm, FSB 667MHz, L2 cache 2MB)
Intel® Celeron M Processor (65nm, FSB 533MHz)
- 顯示晶片
- Intel® Graphics Media Accelerator 950
- 顯示器
- 15.4”TFT-LCD WXGA, Glare Type,1280x800, 16.7M colors
- 記憶體
- 2 DDR II 533/667 SO-DIMM (Max 2G)
* For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
- 系統晶片組
- Intel® 945GM / ICH7-M
- 儲存裝置
- 9.5mm, 2.5" S-ATA HDD support with 40/60/80/120/160GB ( 5400rpm ) capacity
Easily removable no more than two screws
- 光碟機
- 12.7mm slim DVD- ROM Super Multi
- 連接埠
- USB (V2.0, horizontal type) x 3(2 in Right side, 1 in Left side) ,RGB; VGA port x 1,
15pins (Right side) ,S-Video out x 1 (Rear side),Microphone-in x 1(Right side) ,
Headphone-out with S/PDIF jack x 1 (Right side) ,No FIR,DC-in jack (Rear side) ,
RJ-11 jack x 1 for 56Kbps V.90/92 Modem (Rear side), RJ-45 jack x 1( Left side) ,
Kensington lock x 1 (Rear side) ,ExpressCard/54 x 1 (Left side) ,
PCMCIA Type II x 1 (Left side),3-in-1 Flash Card Reader(SD/MMC/MS) x 1 (front side),
IEEE 1394 x1(4-pin) x 1 (left side),
Two way communication switch (Left to on, Right to off),
Internal microphone x 1 (in LCD module)
- 音效
- Realtek ALC883,HD Audio,Microphone-in and headphone-out,Internal Microphone,
Two stereo speakers,Volume control: Hot-key control for XP
- 通訊
- LAN: PCI-E Ethernet 10/100/1000M Base T on board
Wireless LAN: Intel® PRO/Wireless 3945ABG
- 安全裝置
- HDD Password,Kensington lock
- 尺寸
- 362mm(W) x 265mm(D)x 31.7mm(H) in front side, 38.9mm in rear side
Less than 2.73 kg with 15.4”WXGA & 6cell battery (TBD)
- 作業系統
- 中央處理器
- Intel® Core™ 2 Duo Processor ( 65nm, FSB 667MHz, L2 cache 2MB or 4MB)
Intel® Core™ Duo Processor (65nm, FSB 667MHz, L2 cache 2MB)
Intel® Celeron M Processor (65nm, FSB 533MHz)
- 顯示晶片
- Intel® Graphics Media Accelerator 950
- 顯示器
- 15.4”TFT-LCD WXGA, Glare Type,1280x800, 16.7M colors
- 記憶體
- 2 DDR II 533/667 SO-DIMM (Max 2G)
* For the compatible HDDs & RAMs by model, please refer "Notebook FAQ".
- 系統晶片組
- Intel® 945GM / ICH7-M
- 儲存裝置
- 9.5mm, 2.5" S-ATA HDD support with 40/60/80/120/160GB ( 5400rpm ) capacity
Easily removable no more than two screws
- 光碟機
- 12.7mm slim DVD- ROM Super Multi
- 連接埠
- USB (V2.0, horizontal type) x 3(2 in Right side, 1 in Left side) ,RGB; VGA port x 1,
15pins (Right side) ,S-Video out x 1 (Rear side),Microphone-in x 1(Right side) ,
Headphone-out with S/PDIF jack x 1 (Right side) ,No FIR,DC-in jack (Rear side) ,
RJ-11 jack x 1 for 56Kbps V.90/92 Modem (Rear side), RJ-45 jack x 1( Left side) ,
Kensington lock x 1 (Rear side) ,ExpressCard/54 x 1 (Left side) ,
PCMCIA Type II x 1 (Left side),3-in-1 Flash Card Reader(SD/MMC/MS) x 1 (front side),
IEEE 1394 x1(4-pin) x 1 (left side),
Two way communication switch (Left to on, Right to off),
Internal microphone x 1 (in LCD module)
- 音效
- Realtek ALC883,HD Audio,Microphone-in and headphone-out,Internal Microphone,
Two stereo speakers,Volume control: Hot-key control for XP
- 通訊
- LAN: PCI-E Ethernet 10/100/1000M Base T on board
Wireless LAN: Intel® PRO/Wireless 3945ABG
- 安全裝置
- HDD Password,Kensington lock
- 尺寸
- 362mm(W) x 265mm(D)x 31.7mm(H) in front side, 38.9mm in rear side
Less than 2.73 kg with 15.4”WXGA & 6cell battery (TBD)
