H270-T71Legacy | Software updates supported

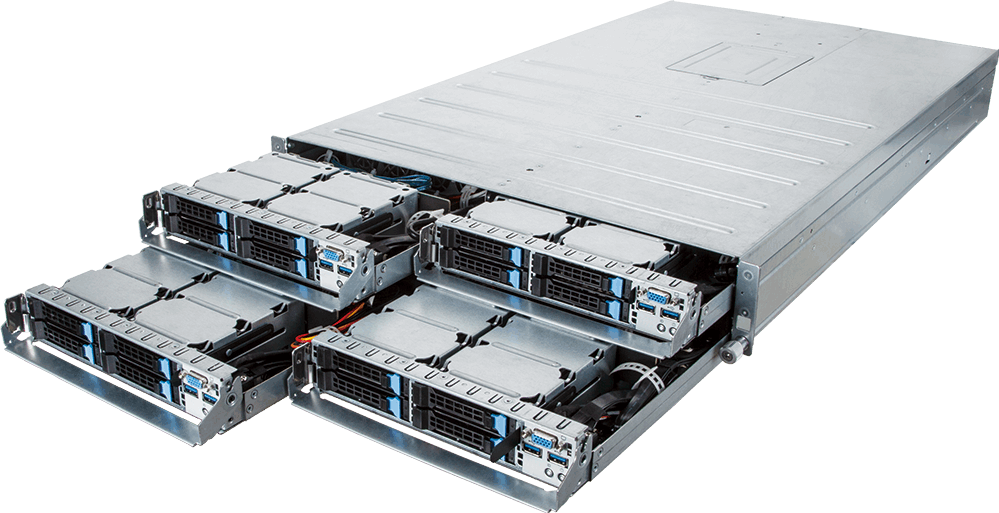

2U 4 Nodes High Density Rack Server
- Supports blockchain infrastructure
- 2U - 4 nodes with front access ARM server
- 8 x Marvell® ThunderX® 32-core ARM processors
- 64 x DDR4 DIMM slots
- 8 x 40GbE QSFP+ LAN ports
- 16 x 2.5” hot-swappable HDD/SSD bays
- 1600W 80 PLUS Platinum redundant PSU
- Overview
- Specifications
- Support
- Related Resources
Specifications
Dimensions (WxHxD, mm)
2U
447 x 87.2 x 780 (mm)
447 x 87.2 x 780 (mm)
Motherboard
MT70-HD2
CPU
Per node:
2 x Marvell® ThunderX® ARM processors
64bit ARMv8 architecture
32 cores per processor, 1.8GHz
BGA 2601, 28nm technology
Total:
8 x Marvell® ThunderX® ARM processors
Total 256 cores
2 x Marvell® ThunderX® ARM processors
64bit ARMv8 architecture
32 cores per processor, 1.8GHz
BGA 2601, 28nm technology
Total:
8 x Marvell® ThunderX® ARM processors
Total 256 cores
Chipset
-
Memory
Per node:
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for one node
Total:
64 x DIMM slots
Up to total 2TB memory capacity
16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
Up to total 512GB memory capacity
1866 MHz with 2DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
2133 MHz with 1DPC for Single Rank or Dual Rank RDIMMs / ECC UDIMMs
NOTE: Due to processor specification, at least 4 x DIMM modules must be installed for one node
Total:
64 x DIMM slots
Up to total 2TB memory capacity
LAN
Per node:
2 x 40GbE QSFP+ LAN ports
1 x 10/100/1000 management LAN port
Total:
8 x 40GbE QSFP+ LAN ports
4 x 10/100/1000 management LAN ports
2 x 40GbE QSFP+ LAN ports
1 x 10/100/1000 management LAN port
Total:
8 x 40GbE QSFP+ LAN ports
4 x 10/100/1000 management LAN ports
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
Storage
Per node:
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
4 x 2.5" hot-swappable HDD/SSD bays
Total:
16 x 2.5" hot-swappable HDD/SSD bays
- NOTE: GIGABYTE recommends that you follow the QVL when selecting hard drives, to avoid any system compatibility issues
SAS
-
RAID
Depends on OS RAID
Peripheral Drives
-
Expansion Slots
Per node:
1 x Half-length low-profile slot with PCIe x16 (Gen3 x8 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connector
Total:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x8 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors
1 x Half-length low-profile slot with PCIe x16 (Gen3 x8 bus) connector
1 x Mezzanine PCIe x8 (Gen3 x8 bus) connector
Total:
4 x Half-length low-profile slots with PCIe x16 (Gen3 x8 bus) connectors
4 x Mezzanine PCIe x8 (Gen3 x8 bus) connectors
Internal I/O
Per node:
2 x 18-pin power connectors
4 x SATA III 6Gb/s ports (1 with SATA DOM supported)
1 x SATA SGPIO header
1 x SATA DOM header
1 x USB 3.0 header
1 x COM2 header
1 x Case open connector
1 x PMBUS connector
1 x Clear CMOS header
1 x IPMB connector
2 x 18-pin power connectors
4 x SATA III 6Gb/s ports (1 with SATA DOM supported)
1 x SATA SGPIO header
1 x SATA DOM header
1 x USB 3.0 header
1 x COM2 header
1 x Case open connector
1 x PMBUS connector
1 x Clear CMOS header
1 x IPMB connector
Front I/O
Per node:
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
Total:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
2 x USB 3.0
1 x VGA
1 x Power button with LED
1 x ID button with LED
Total:
8 x USB 3.0
4 x VGA
4 x Power buttons with LED
4 x ID buttons with LED
Rear I/O
Per node:
2 x USB 3.0
1 x VGA
1 x COM1
2 x QSFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x System reset button
1 x System status LED
2 x LAN activity LEDs
2 x LAN link status LEDs
Total:
8 x USB 3.0
4 x VGA
4 x COM1
8 x QSFP+
4 x RJ45
4 x Power button with LED
4 x ID button with LED
4 x System reset button
4 x System status LED
8 x LAN activity LEDs
8 x LAN link status LEDs
2 x USB 3.0
1 x VGA
1 x COM1
2 x QSFP+
1 x RJ45
1 x Power button with LED
1 x ID button with LED
1 x System reset button
1 x System status LED
2 x LAN activity LEDs
2 x LAN link status LEDs
Total:
8 x USB 3.0
4 x VGA
4 x COM1
8 x QSFP+
4 x RJ45
4 x Power button with LED
4 x ID button with LED
4 x System reset button
4 x System status LED
8 x LAN activity LEDs
8 x LAN link status LEDs
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
-
Power Supply[#1]
2 x 1600W redundant PSU
80 PLUS Platinum
100~230V AC
80 PLUS Platinum
100~230V AC
System Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
OS Compatibility
Certified OS
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
Ubuntu 16.04.1 64bit
SLES12 SP2
Compatible OS
openSUSE Tumbleweed
openSUSE Leap 42.1+
RHEL 7.3 64bit
CentOS 7.3 64bit
System Fans
16 x 40x40x56mm (23’000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
38kg
Packaging Dimensions
1133 x 724 x 261 (mm)
Packaging Content
- 1 x H270-T71 system
- 1 x Quick Installation Guide
- Rail kit
- 1 x Quick Installation Guide
- Rail kit
Part Numbers
Rackmount: 6NH270T71MR-00
Motherboard: 9MT70HD2NR-00
Power supply: 25EP0-216004-D0S
Rail Kit: 25HB2-A86100-K0R
Motherboard: 9MT70HD2NR-00
Power supply: 25EP0-216004-D0S
Rail Kit: 25HB2-A86100-K0R
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
