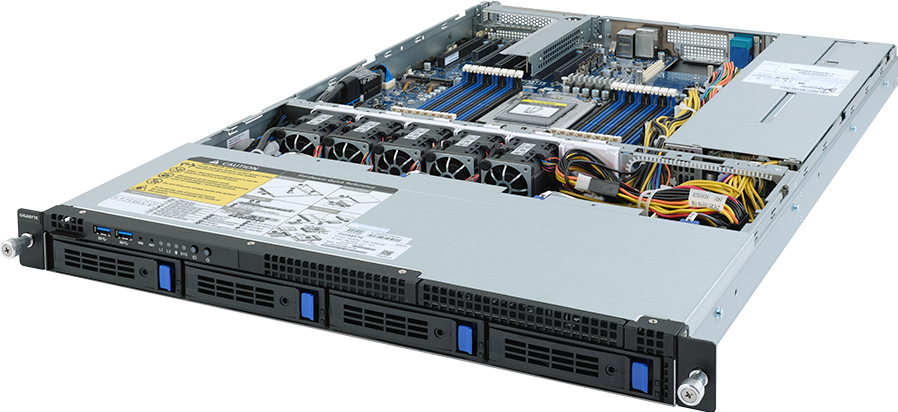

Rack Server - AMD EPYC™ 7002/7001 - 1U UP 4-Bay SATA
- Single AMD EPYC™ 7002/7001 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 1 x FHHL PCIe Gen4 x16 slot
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- 1+1 650W 80 PLUS Platinum redundant power supplies
Specifications
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 660
438 x 43.5 x 660
Motherboard
CPU
AMD EPYC™ 7002 Series Processors
AMD EPYC™ 7001 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
AMD EPYC™ 7001 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
4 x 3.5"/2.5" SATA hot-swappable bays
SATA devices supported only
4 x 3.5"/2.5" SATA hot-swappable bays
SATA devices supported only
SAS
N/A
RAID
N/A
Peripheral Drives
1 x Slim type ODD (optional)
Expansion Slots
Riser Card CRS101D:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
- 1 x PCIe x16 (Gen4 x16) FHHL slot
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
1+1 650W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+12V/ 52.9A
+5Vsb/ 4A
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input:
- 190-310Vdc/ 5-3A
DC Output:
- Max 650W
+12V/ 52.9A
+5Vsb/ 4A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.1.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
System Fans
5 x 40x40x56mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 12.2 kg
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R152-Z30
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR152Z30MR-00-1*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1042: 9CBP1042NR-00
- Riser card - CRS101D: 9CRS101DNR-00
- Fan module: 25ST2-44562P-D0R
- Power supply: 25EP0-206504-F3S
Optional parts:
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- 3-Section Rail kit (Support CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR152Z30SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-44320G-A0R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1042: 9CBP1042NR-00
- Riser card - CRS101D: 9CRS101DNR-00
- Fan module: 25ST2-44562P-D0R
- Power supply: 25EP0-206504-F3S
Optional parts:
- Fan duct for 280W CPU: 25HA8-R15200-S5R
- 3-Section Rail kit (Support CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
- RMA packaging: 6NR152Z30SR-RMA-A100
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
