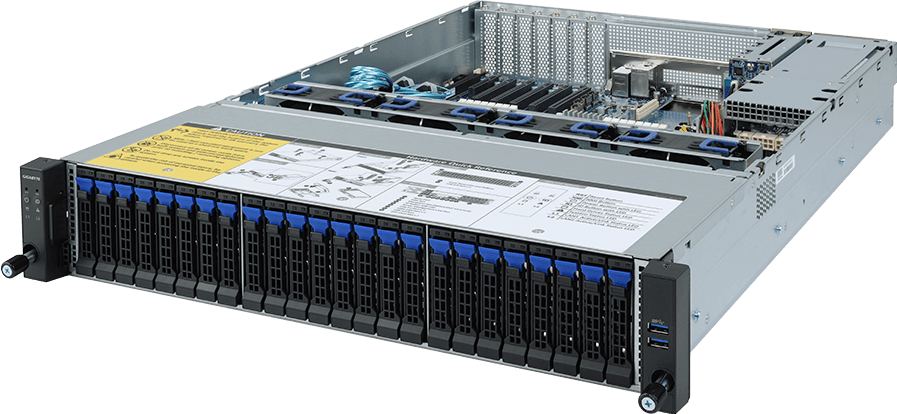

Rack Server - AMD EPYC™ 7003/7002 - 2U UP 24+2-Bay SATA/SAS
- Single AMD EPYC™ 7003 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- Onboard 12Gb/s SAS expander
- 24 x 2.5" SATA/SAS hot-swappable bays
- 2 x 2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x LP PCIe Gen4 x16 and x8 slots
- 2 x LP PCIe Gen3 x16 and x8 slots
- 1 x OCP 2.0 Gen3 x16 mezzanine slot
- Dual 800W 80 PLUS Platinum redundant power supply
Specifications
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 660
438 x 87.5 x 660
Motherboard
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
AMD EPYC™ 7002 Series Processors
Single processor, 7nm technology
Up to 64 cores, 128 threads
cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
24 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
All devices are connected with SAS expander
Onboard SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
24 x 2.5" SATA/SAS hot-swappable bays
Rear side:
2 x 2.5" SATA/SAS hot-swappable bays
All devices are connected with SAS expander
Onboard SAS35x36R expander
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
Default configuration supports:
0 x SAS/SATA drives
SAS card is required to enable the drives
SAS
Supported
RAID
Depends on SAS add-in cards
Expansion Slots
Total 4 x PCIe Gen4 low-profile slots
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Total 2 x PCIe Gen3 low-profile slots
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Slot_6: 1 x PCIe x16 (Gen4 x16) slot
Slot_5: 1 x PCIe x16 (Gen4 x8) slot
Slot_4: 1 x PCIe x16 (Gen4 x16) slot
Slot_3: 1 x PCIe x16 (Gen4 x16) slot
Total 2 x PCIe Gen3 low-profile slots
Slot_2: 1 x PCIe x8 (Gen3 x0 or x8) slot
Slot_1: 1 x PCIe x16 (Gen3 x16 or x8) slot, shared with slot_2
1 x OCP 2.0 mezzanine slot with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4; Type2 P5 with NCSI supported)
2 x M.2 slots:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280 cards
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
3 x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Front side - CBP20O5: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply[#1]
Dual 800W 80 PLUS Platinum redundant power supply (-A00)
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
Dual 850W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 220-240V~/ 5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 850W
+12V/ 70.8A
+12Vsb/ 2.1A
Note: Select 1200W power supply if using 280W CPU with full loading configuration.
AC Input:
- 100-240V~/ 10-4A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 4.5A
DC Output:
- Max 800W
+12V/ 66A
+12Vsb/ 2.5A
Dual 850W 80 PLUS Titanium redundant power supply (-AT0)
AC Input:
- 100-127V~/ 11A, 47-63Hz
- 220-240V~/ 5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 850W
+12V/ 70.8A
+12Vsb/ 2.1A
Note: Select 1200W power supply if using 280W CPU with full loading configuration.
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
982 x 588 x 268 mm
Packaging Content
1 x R272-Z31
1 x CPU heatsink
1 x 2-Section Rail kit
1 x CPU heatsink
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR272Z31MR-00-A*
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- SAS Expander module - CEP26O0: 9CEP26O0NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply (-A00): 25EP0-208004-L0S
- Power supply (-AT0): 25EP0-208503-D0S
Optional parts:
- 4 x U.2 Kit: 6NR272Z3ASR-00
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z31SR-RMA-A100
- Motherboard: 9MZ32AR0NR-00
- 2-Section Rail kit (CMA not supported): 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- SAS Expander module - CEP26O0: 9CEP26O0NR-00
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O5: 9CBP20O5NR-00
- Backplane board - CBP2021: 9CBP2021NR-00
- Fan module: 25ST2-883829-D0R
- Fan duct for 280W CPU: 25HA8-R27231-S5R
- Power supply (-A00): 25EP0-208004-L0S
- Power supply (-AT0): 25EP0-208503-D0S
Optional parts:
- 4 x U.2 Kit: 6NR272Z3ASR-00
- 3-Section Rail kit (Supports CMA): 25HB2-AA6105-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR272Z31SR-RMA-A100
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical interface values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
