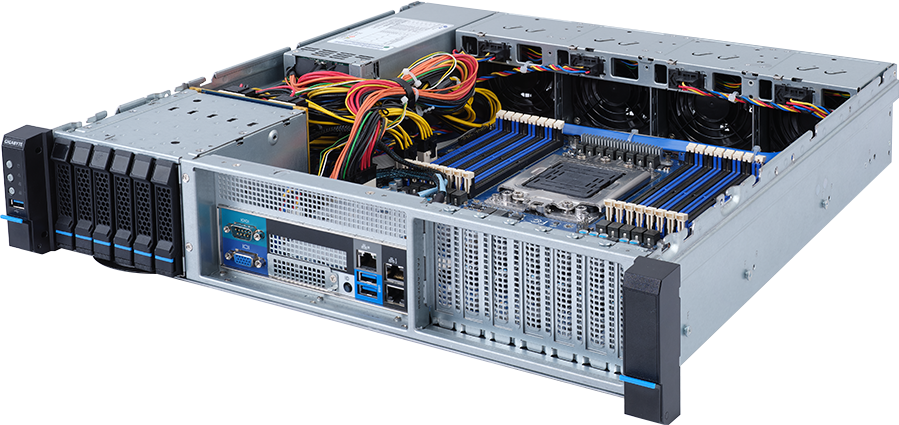

E252-P30

Rev. 100

Edge Arm Server - Ampere^® Altra^® / Altra^® Max - 2U UP 6-Bay SATA/SAS

Networking Edge Hybrid/Private Cloud Server

Hardware-level root of trust support
Ampere^® Altra^® Max or Altra^® Processors
Single processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
2 x 1Gb/s LAN ports via Intel^® I350-AM2
1 x Dedicated management port
6 x 2.5" SATA/SAS hot-swappable bays
2 x M.2 slots with PCIe Gen4 x4 interface
6 x LP PCIe Gen4 x16 and x8 slots
Dual 800W 80 PLUS Platinum redundant power supply

Compare

Save

Quote

Overview
Specifications
Support
Related Resources
Where to Buy

Specifications

Dimensions (WxHxD, mm)

2U
439 x 86 x 449

Motherboard

MP32-AR1

CPU

Ampere^® Altra^® Max or Altra^® Processors
Single processor, 7nm technology
Up to 128 cores per processor, TDP up to 250W

Socket

1 x LGA 4926

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported
Memory speed: Up to 3200 MHz

Note: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs.

LAN

Front side:
2 x 1GbE LAN ports (1 x Intel^® I350-AM2)
1 x 10/100/1000 Mbps Management LAN

Video

Integrated in ASPEED^® AST2500
- 1 x VGA port

Storage

Front side:
6 x 2.5" SATA/SAS hot-swappable bays, from CRAO338 SAS RAID Card

SAS

Supported

RAID

RAID 0/1/1E/10

Expansion Slots

Total 6 x PCIe Gen4 low-profile slots
Slot_7: Disabled
Slot_6: PCIe x16 (Gen4 x16) slot
Slot_5: PCIe x16 (Gen4 x8) slot
Slot_4: PCIe x16 (Gen4 x16) slot
Slot_3: PCIe x16 (Gen4 x8) slot
Slot_2: PCIe x8 (Gen4 x8) slot
Slot_1: PCIe x16 (Gen4 x8) slot

1 x OCP 2.0 mezzanine slot, occupied by CRAO338 SAS RAID Card

2 x M.2 slots:
- M-key
- PCIe Gen4 x4
- Supports 2242/2260/2280/22110 cards

Internal I/O

1 x USB 3.0 header
1 x USB 2.0 header
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x Buzzer

Front I/O

3 x USB 3.0
1 x VGA
1 x Debug port
2 x RJ45
1 x MLAN
1 x ID button with LED

Front Panel:

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x Storage activity LED
2 x LAN activity LEDs

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

Power Supply^[#1]

Dual 800W 80 PLUS Platinum redundant power supply

System Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later

CentOS 8.3-2011 (aarch64) or later
CentOS-8.4.2105 (aarch64) or later
CentOS-8.5.2111 (aarch64) or later

SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later

Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later

Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later

OracleLinux R8 U2
OracleLinux R8 U5

Debian 10.9 (Buster)
Debian 11.1

System Fans

4 x 80x80x38mm, 2-ball

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

867 x 588 x 276 mm

Packaging Content

1 x E252-P30
1 x CPU heatsink

*Rail kit not included. Please refer to optional parts for compatible rail kit.

Part Numbers

- Barebone package: 6NE252P30MR-00-1*
- Motherboard: 9MP32AR1NR-00
- CPU heatsink: 25ST1-353109-T1R
- OCP type SAS RAID Card: 9CRAO338NR-00

Optional parts:

- 2-Section Rail kit: 25HB2-3A0205-C0R

[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
