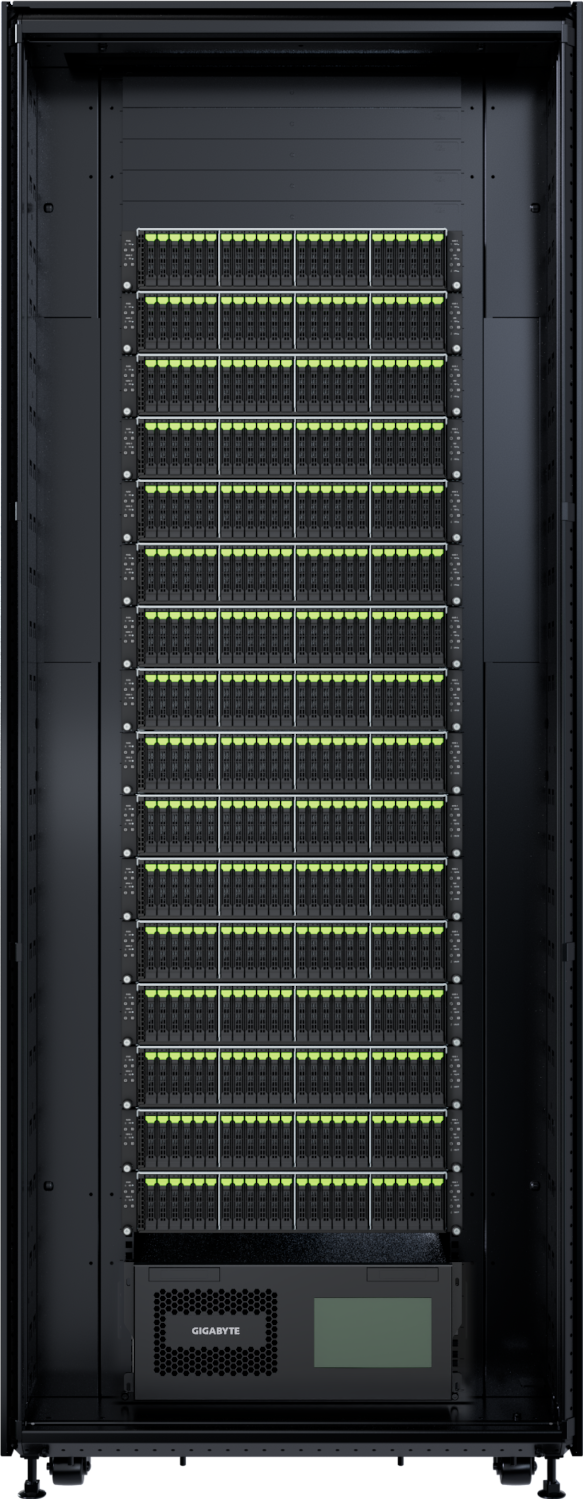

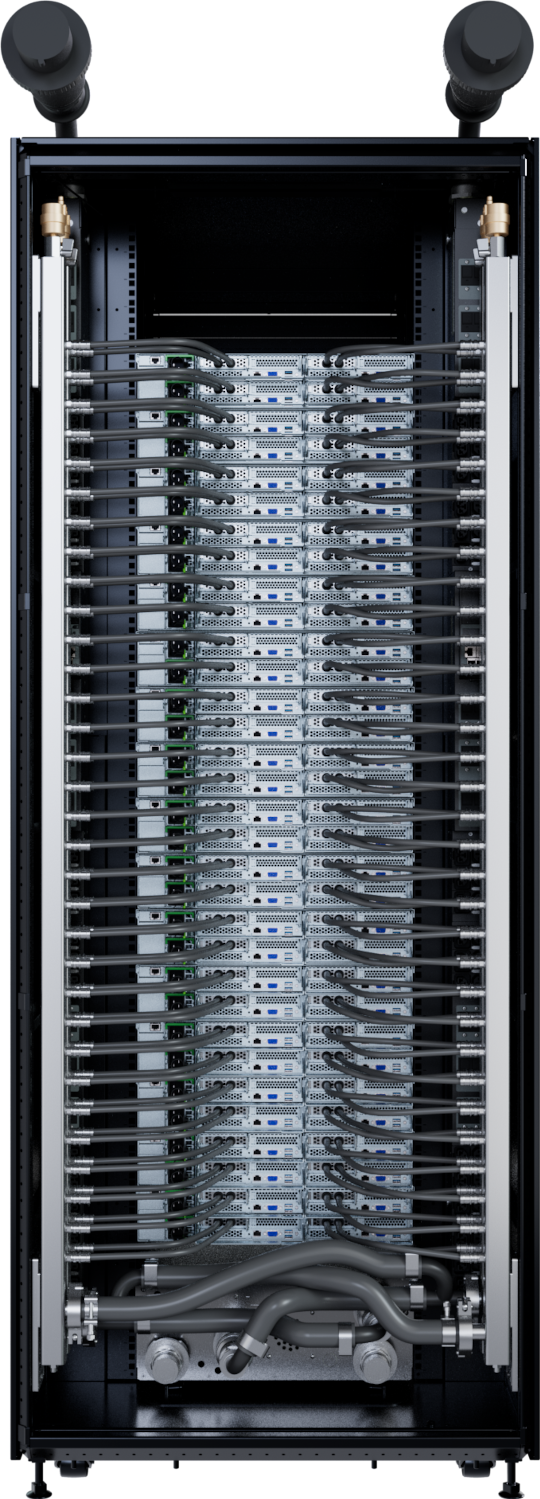

GIGAPOD HPC DLC Rack Scale Solution - HPC DLC Rack_42U_64N

1/2

42U 64 Nodes

GIGAPOD HPC DLC Rack Scale Solution

16 x GIGABYTE 2U4N DLC high density servers
128 x AMD EPYC^™ 9005/9004 Series Processors or
Intel^® Xeon^® 6700/6500-Series Processors or
5th/4th Gen Intel^® Xeon^® Scalable Processors or
Intel^® Xeon^® CPU Max Series
Up to 90 kW rack power consumption
Reserved space for InfiniBand / Ethernet switches
Integrated G-REX cluster-level DLC power and cooling management kit
Compatible with GIGABYTE POD Manager software for cluster management / orchestration
Supports flexible storage with GIGABYTE storage servers and validated partner solutions

Save

Quote

Configuration

	DL83-HD0
Cooling Type	Direct Liquid Cooling
Rack Height	42U
Server Model	H263-S62-LAN1 H263-S62-LAW1 H263-S63-LAN1 H263-S63-LAW1	H273-Z80-LAN1 H273-Z80-LAW1 H273-Z81-LAN1 H273-Z81-LAW1	H274-S60-LAW1 H274-S61-LAW1
Server Configuration	16 x 2U4N DLC high density servers
CPU	5th/4th Gen Intel^® Xeon^® Scalable Processors Intel^® Xeon^® CPU Max Series Total 128 processors	AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Total 128 processors	Intel^® Xeon^® 6700/6500-Series Processors Total 128 processors
Switch	Flexible validated InfiniBand / Ethernet switch configurations
PDU	2 x PDUs Input: 415 V, 100 A, 3-phase
Rack Power Consumption	Up to 82 kW	Up to 90 kW	Up to 83 kW
CDU	In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Management	Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Storage Solutions	Flexible validated partner solutions with GIGABYTE storage servers


Cooling Type
Rack Height
Server Model
Server Configuration
CPU
Switch
PDU
Rack Power Consumption
CDU
Management
Storage Solutions

DL83-HD0
Direct Liquid Cooling
42U
H263-S62-LAN1 H263-S62-LAW1 H263-S63-LAN1 H263-S63-LAW1
16 x 2U4N DLC high density servers
5th/4th Gen Intel^® Xeon^® Scalable Processors Intel^® Xeon^® CPU Max Series Total 128 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 100 A, 3-phase
Up to 82 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers

DL83-HD0
Direct Liquid Cooling
42U
H273-Z80-LAN1 H273-Z80-LAW1 H273-Z81-LAN1 H273-Z81-LAW1
16 x 2U4N DLC high density servers
AMD EPYC^™ 9005 Series Processors AMD EPYC^™ 9004 Series Processors Total 128 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 100 A, 3-phase
Up to 90 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers

DL83-HD0
Direct Liquid Cooling
42U
H274-S60-LAW1 H274-S61-LAW1
16 x 2U4N DLC high density servers
Intel^® Xeon^® 6700/6500-Series Processors Total 128 processors
Flexible validated InfiniBand / Ethernet switch configurations
2 x PDUs Input: 415 V, 100 A, 3-phase
Up to 83 kW
In-Rack Liquid-to-Liquid CDU Cooling Capacity: 100 kW (5°C approach temperature) Primary Loop Connections: 1" FD83 QDC couplings (inlet/outlet) Input Power: 2 x C20, AC 100-240V , 50/60 Hz 1+1 redundant power supplies and pumps
Integrated G-REX DLC power and cooling management kit: - 1 x N120-LS0 management node - Real-time cluster-level monitoring and control - Supports Modbus, Redfish, and REST APIs for seamless integration with CDUs and RDHx Optional GIGABYTE POD Management (GPM) software suite: - Essential single-node BMC for real-time hardware health and remote system oversight - Unified cluster-scale management and deep telemetry for high-density deployments - Total POD-level orchestration for infrastructure provisioning and environmental monitoring
Flexible validated partner solutions with GIGABYTE storage servers

[#1] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.

[#2] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.

[#3] All trademarks and logos are the property of their respective owners.
