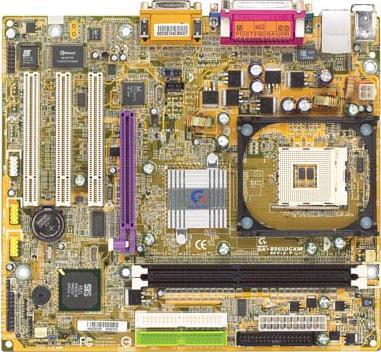

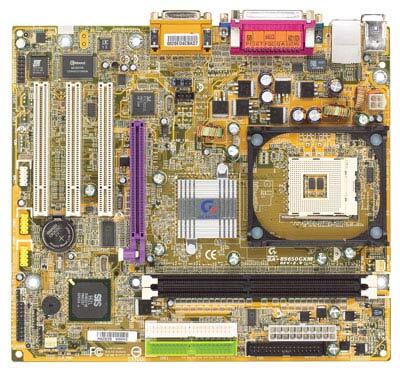

GA-8S650GXM (Rev. 1.x / 2.x)

SpecificationsSupportNews & AwardsWhere to Buy

Specifications

  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • Chipset
    1. North bridge: SiS650GX IGUI Host Memory Controller
    2. South bridge: SiS962L MuTIOL® Media I/O
    3. REALTEK RTL8101L LAN chip
    4. Super I/O: Winbond 83697HF
    5. Realtek ALC 650 Codec chip
  • Memory
    1. Type: DDR266(PC2100) - 184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x AGP slot (4x/2x-AGP 2.0 compliant)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB2.0 connectors (4 ports by cable)
    3. 1 x FDD port
  • Back Panel Connectors
    1. 1 x VGA port
    2. 2 x USB 2.0 ports
    3. 1 x RJ45 LAN port
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi port
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Bundled Software
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 21.1 cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GX VGA driver
    2. REALTEK LAN driver
    3. REALTEK audio driver
    4. USB2.0 driver
  • Other Features
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch
  • CPU
    1. Socket 478 for Intel® Pentium® 4 processor
  • Front Side Bus
    1. 400 MHz
  • Chipset
    1. North bridge: SiS650GX IGUI Host Memory Controller
    2. South bridge: SiS962L MuTIOL® Media I/O
    3. REALTEK RTL8101L LAN chip
    4. Super I/O: Winbond 83697HF
    5. Realtek ALC 650 Codec chip
  • Memory
    1. Type: DDR266(PC2100) - 184pin
    2. Max capacity: Up to 2GB by 2 DIMM slots
  • Expansion Slots
    1. 1 x AGP slot (4x/2x-AGP 2.0 compliant)
    2. 3 x PCI slots (PCI 2.2 compliant)
  • Internal I/O Connectors
    1. 2 x UDMA ATA 133/100/66 Bus Master IDE ports
    2. 2 x USB2.0 connectors (4 ports by cable)
    3. 1 x FDD port
  • Back Panel Connectors
    1. 1 x VGA port
    2. 2 x USB 2.0 ports
    3. 1 x RJ45 LAN port
    4. PS/2 Keyboard / Mouse
    5. Audio (1 x Line-in / 1 x Line-out / 1 x Mic) connector
    6. 1 x COM port
    7. 1 x Game/Midi port
  • H/W Monitoring
    1. System health status auto-detect and report by BIOS
    2. Hardware detecting and reporting for Case open and CPU and System fan speed
  • BIOS
    1. 2M bit flash ROM, enhanced ACPI feature for PC98/Win98/Win2000/Me/CE/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    2. IDE#1~#2, SCSI, LS120, ZIP and CD-ROM bootable
  • Bundled Software
    1. @BIOS™, Easy Tune™ 4, Q-Flash™, GMC™
    2. Norton Internet Security
    3. GIGABYTE Windows Utility Manager
  • Form Factor
    1. Micro-ATX form factor, 4 layers PCB (24.4 x 21.1 cm)
  • CPU/AGP/DIMM setting
    1. CPU FSB adjustable (1MHz-linear) via BIOS
    2. Multiplier adjustable via BIOS
  • Driver
    1. SiS 650GX VGA driver
    2. REALTEK LAN driver
    3. REALTEK audio driver
    4. USB2.0 driver
  • Other Features
    1. Suspend to RAM (STR)
    2. Supports USB KB / MS wake up from S3
    3. Poly fuse for keyboard over-current protection
  • Power
    1. ATX power connector and ATX 12V connector
    2. Power-off by Windows 98/ Me/ 2000/ XP shut down and switch

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
