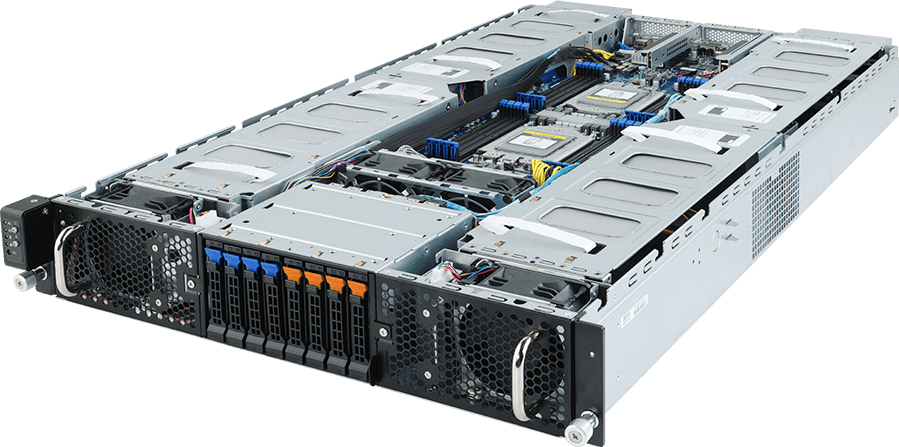

G292-Z40

2U
448 x 87.5 x 800

MZ42-G20

AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 240W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 4094
Socket SP3

System on Chip

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
Memory speed: Up to 3200 MT/s

Rear side:
2 x 10Gb/s LAN ports (1 x Intel^® X550-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2500
- 1 x VGA port

Front side:
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548

Supported

Depends on SAS add-in cards

Depends on SAS add-in cards

Riser Card CRSG421 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs (Microchip solution)

Riser Card CRSG422 x 2:
- 4 x PCIe x16 (Gen4 x16) FHFL slots, for GPUs (Microchip solution)

Riser Card CRSG01A x 2:
- 2 x PCIe x16 (Gen4 x16) low-profile slots

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.

1 x TPM header

1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED

Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A

Note: The system power supply requires C19 power cord.

Aspeed^® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• JAVA Based Serial Over LAN
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage/Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Citrix Hypervisor 8.1.0 or later

Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later

Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

8 x 80x80x38mm (16,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note: Please contact Technical Support for more information about optimized GPU operating temperature.

Net Weight: 23.4 kg
Gross Weight: 35 kg

1133 x 724 x 261 mm

1 x G292-Z40
2 x CPU heatsinks
6 x GPU power cables (2x PCIe 8pin, 220mm)
2 x GPU power cables (2x PCIe 8pin, 250mm)
1 x L-shape Rail kit

- Barebone package: 6NG292Z40MR-00-1*
- Motherboard: 9MZ42G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card - CRSG421: 9CRSG421NR-00
- Riser card - CRSG422: 9CRSG422NR-00
- Riser card for GPU - CRSG421: 9CRSG421NR-00
- Riser card for GPU - CRSG422: 9CRSG422NR-00
- GPU power cable (2x PCIe 8pin, 220mm): 25CRI-220304-Y4R
- GPU power cable (2x PCIe 8pin, 250mm): 25CRI-250903-Y4R
- Power supply: 25EP0-222008-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG292Z40SR-RMA-A100
