• WINDFORCE Cooling system

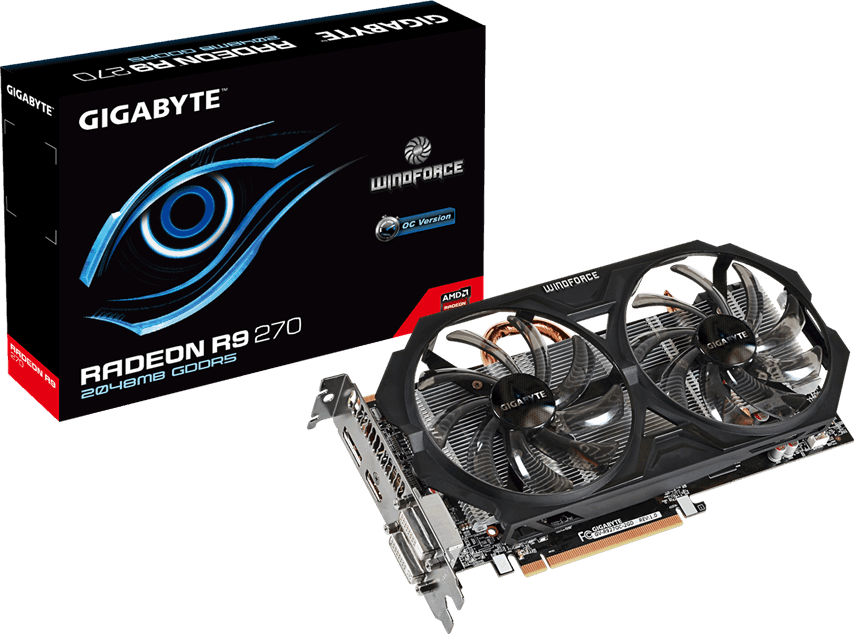

  • Powered by AMD Radeon™ R9 270 GPU
  • Integrated with 2GB GDDR5 memory, 256-bit memory interface
  • Features Dual-link DVI-I/ DVI-D / HDMI / DisplayPort
  • BASE:950MHz / BOOST:975 MHz
  • System power supply requirement: 500W
  • WINDFORCE™ 2X: Anti-turbulence Cooling
    The special inclined dual fan design effectively minimizes the flow of turbulence between two fans and enhances heat dissipation of hot area right underneath each fan. By unique design, WINDFORCETM 2X even enlarges air channel on the graphics card vents and creates a more effective air flow system in chassis. This special design helps heat dissipate quickly from GPU. In addition, WINDFORCETM 2X is equipped with 2 copper heat-pipes which strengthen the speed of heat dissipation.
  • Ultra Durable VGA™

    Lower GPU Temperature
    Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.

    Better Overclocking Capability
    Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.

    Decrease Power Switching Loss
    Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.

  • OC GURU ll

    Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK,FAN, OSD, ONLINE SUPPORT and update driver, BIOS directly.


* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
