G294-Z22-AAP2
HPC/AI Server - AMD EPYC™ 9005/9004 - 2U UP 8 x PCIe Gen5 GPUs (with PCIe switches)
- Supports up to 8 x Dual slot Gen5 GPUs
- Supports 4 x NVIDIA H200 NVL PCIe GPUs with 2-way NVLink bridges
- Supports 8 x AMD Radeon™ AI PRO R9700S
- Single AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 2.5" SATA/SAS-4 hot-swap bays
- 2 x M.2 slots with PCIe Gen5 x4 interface
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x LP PCIe Gen5 x16 slots for add-in cards
- Dual 3000W 80 PLUS Titanium redundant power supply
Ordering Numbers: 6NG294Z22DR000ACP2*
المواصفات
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 962 (depth including 112 mm rear fans)
438 x 87.5 x 962 (depth including 112 mm rear fans)
Motherboard
MZ23-G20
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 400W
- At 25°C ambient, cTDP up to 500W
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
Support DDR5 RDIMM
12-Channel memory per processor
AMD EPYC™ 9005:
Up to 6400 MT/s
AMD EPYC™ 9004:
Up to 4800 MT/s
LAN
Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" SATA/SAS-4 [1]
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4
[1] SAS card is required to support SAS drives.
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" SATA/SAS-4 [1]
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4
[1] SAS card is required to support SAS drives.
PCIe Expansion Slots

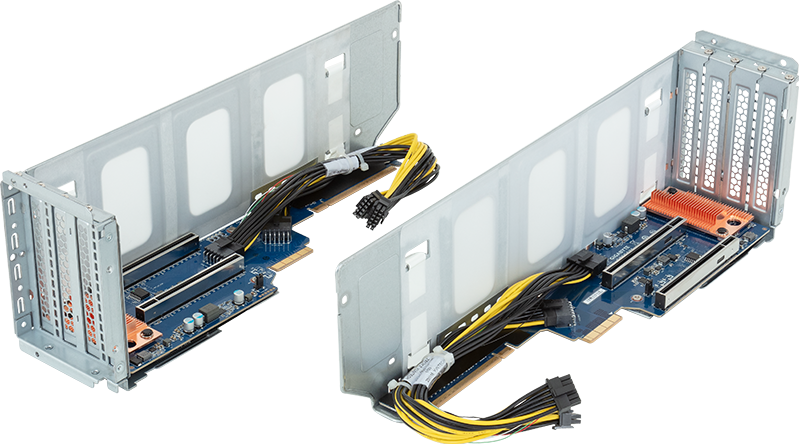

Riser Card x 6:
- 8 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
- 2 x LP x16 (Gen5 x16), from CPU
[Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge.
[Note] GPU video output ports are not available due to mechanical limitations.
[Note] The system is only validated with a uniform GPU model.
- 8 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
- 2 x LP x16 (Gen5 x16), from CPU
[Note] The system supports 4 x NVIDIA H200 NVL PCIe GPUs at 25°C ambient, arranged as two 2-GPU sets, each with a 2-way NVLink bridge.
[Note] GPU video output ports are not available due to mechanical limitations.
[Note] The system is only validated with a uniform GPU model.
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
Power Supply[#1]
Dual 3000W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-220V~/ 15.5A, 50-60Hz
- 220-240V~/ 15.5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 15.5A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2600W/ 200-220V~
+12.2V/ 213A
+12Vsb/ 3A
- Max 3000W/ 220-240V~ or 240Vdc Input
+12.2V/ 245A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
OS Certifications
System Fans
8 x 80x80x80mm
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Operating humidity: 8% to 80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20% to 95% (non-condensing)
Weight
Net Weight: 34.7 kg
Gross Weight: 44.7 kg
Gross Weight: 44.7 kg
Packaging Dimensions
1241 x 742 x 305 mm
Packaging Content
1 x G294-Z22-AAP2
1 x CPU heatsink
4 x GPU power cables (16-pin, 250mm)
4 x GPU power cables (16-pin, 280mm)
1 x L-shape Rail kit
1 x CPU heatsink
4 x GPU power cables (16-pin, 250mm)
4 x GPU power cables (16-pin, 280mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG294Z22DR000ACP2*
- Motherboard: 9MZ23G20UR-000-3*
- L-shape Rail kit: 25HB2-A86102-K0R
- Front panel board - GC-IF2ED1: 9CIF2ED1NS-00*
- Backplane board - CBPG086: 9CBPG086NR-00*
- Motherboard: 9MZ23G20UR-000-3*
- L-shape Rail kit: 25HB2-A86102-K0R
- Front panel board - GC-IF2ED1: 9CIF2ED1NS-00*
- Backplane board - CBPG086: 9CBPG086NR-00*
[#1] Power cords are not included with server packages. Customers are responsible for selecting appropriate power cords from the optional accessories or contacting sales for customization.
[#2] All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
[#3] Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
[#4] All trademarks and logos are the property of their respective owners.
